Feller Edizio escape route terminal, green, size 3
Feller Edizio, green, size 3
Product description
To control electric locking elements in doors along escape routes; certified in compliance with EltVTR and DIN EN 13637:2015.

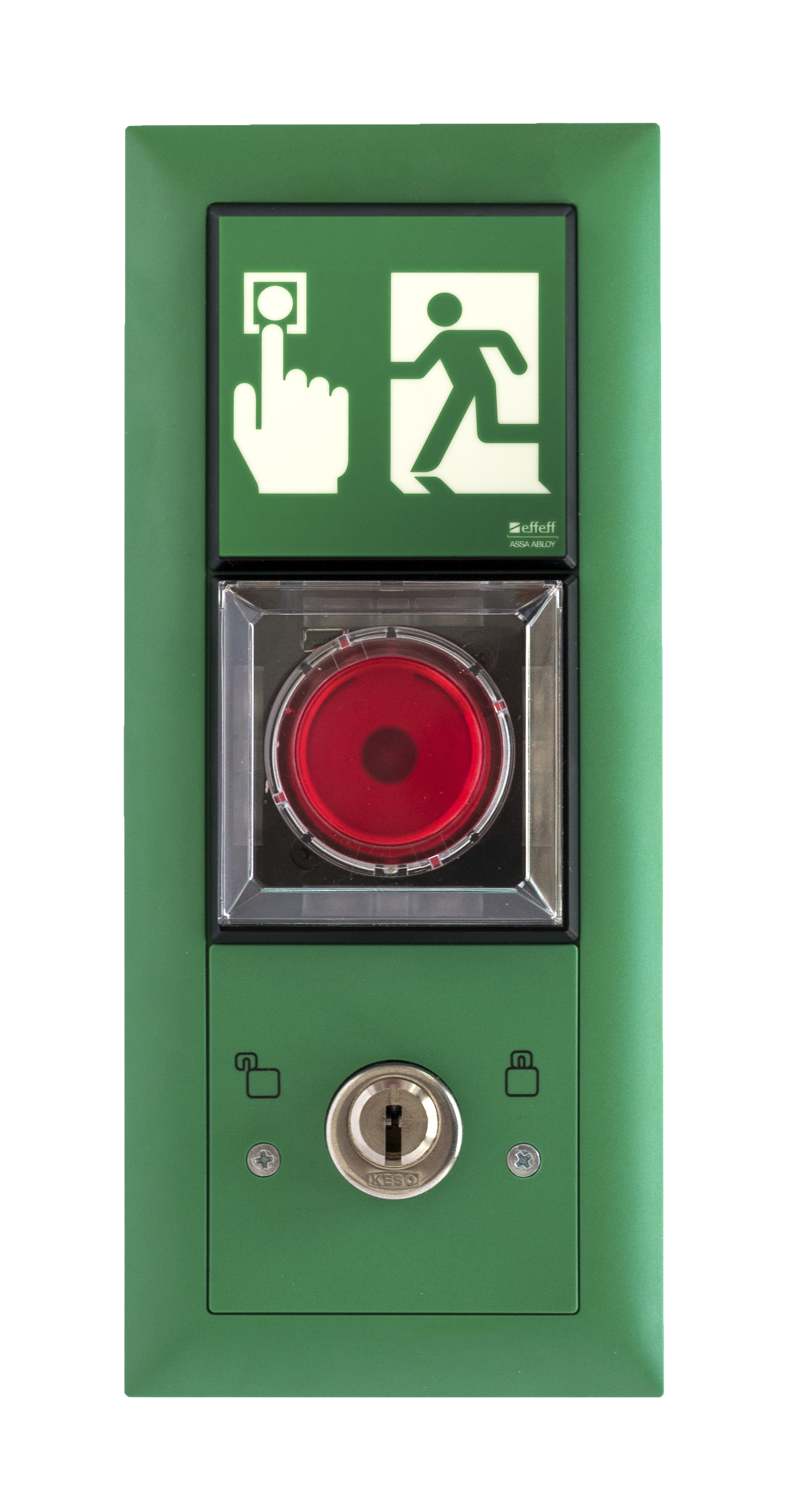

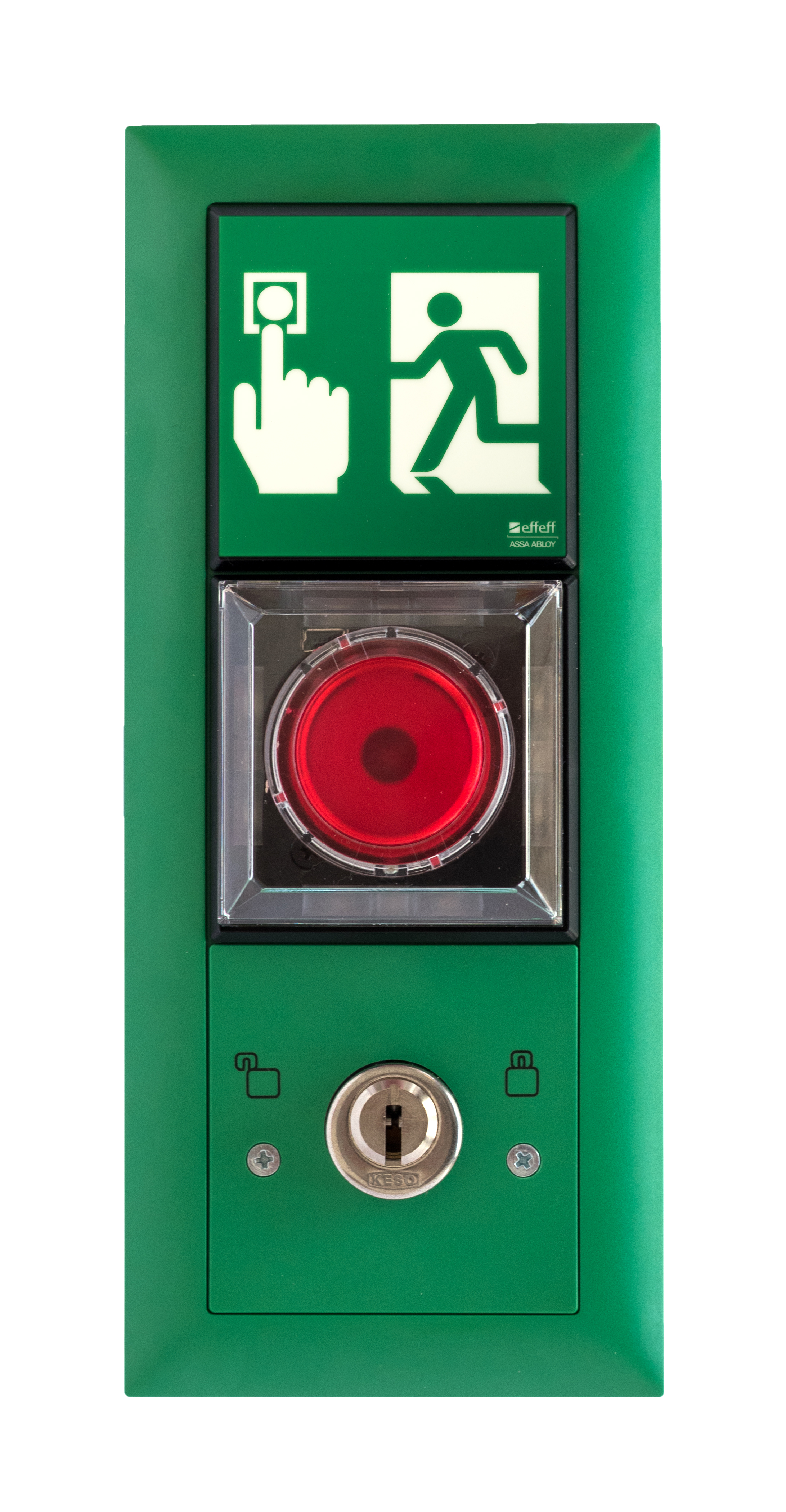

Escape door control module
- Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
- Integrated visual door status indicator with high-performance LEDs (green / red / yellow) signalling unlocked / locked / alarm status
- Sign emergency button
- Tamper contact
- Adjustable time period for max. continuous release, delay in continuous release, temporary unlocking, pre-alarm, alarm interval, guidance signal
- Monitoring of time door is open in the case of temporary unlocking
- With an input featuring adjustable parameters for:
- Control of locking and unlocking, temporary unlocking, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and keypad units, or
- Temporary release using an access control system, or
- Emergency release via fire alarm system, or
- Priority locking via burglar alarm system, or
- Unlocking via timer, etc.
- With a relay output featuring adjustable parameters for:
- Door locked/unlocked, or
- Door open/closed, or
- Collective alarm, or
- Individual alarm, or
- Activation of electric strike/motorised lock/door automatics/arrestor system
- Connections:
- SYSCON-4: power supply
- SYSCON-5: operating unit
- Plug-in screw terminals
- Model range 1385: TS bus interface for parameterisation using software (FT Manager) and networks for parallel operation of visual display software, panel and OPC server
Key switch module
- For locking/unlocking, temporary unlocking, alarm resetting
- Tamper contact
- Cover which matches the corresponding switch range
Scope of delivery
- 1 escape door control module
- 1 key switch module
- 1 frame
- 1 operating manual
| Rated voltage | 12-24 VDC SELV |
| Output voltage | 12-24 V DC |
| Output current | Max. 2 A (depending on external power supply) |
| Power consumption | 0.1A at 24V |
| Control | Yes, integrated |
| Power supply | External power supply required |
| Connection to panel, visualisation system, OPC server | Yes, Model Range 1385 |
| Stand-alone operation with I/O module | Yes, Model Range 1385 |
| Stand-alone operation (offline) | Yes |
| Emergency switch | Yes |
| Control element | Key switch with Euro profile cylinder; cam position 8 x 45°; 30.5 mm long |
| Setting of times and functions | Via key switch, via FT Manager (together with bus controller) |
| Operating temperature range | -5 °C to +40 °C |
| Class of protection | IP 30 |
| Dimension | Double frame in switch range; installation in 2 flush-mounted switch boxes, 62.5 mm deep |
| Inputs | 1x; adjustable parameters |
| Outputs | 1x; 30 V / 1 A switchover contact; adjustable parameters |
| Key switch on opposite side to direction of escape | Yes (without display) |
