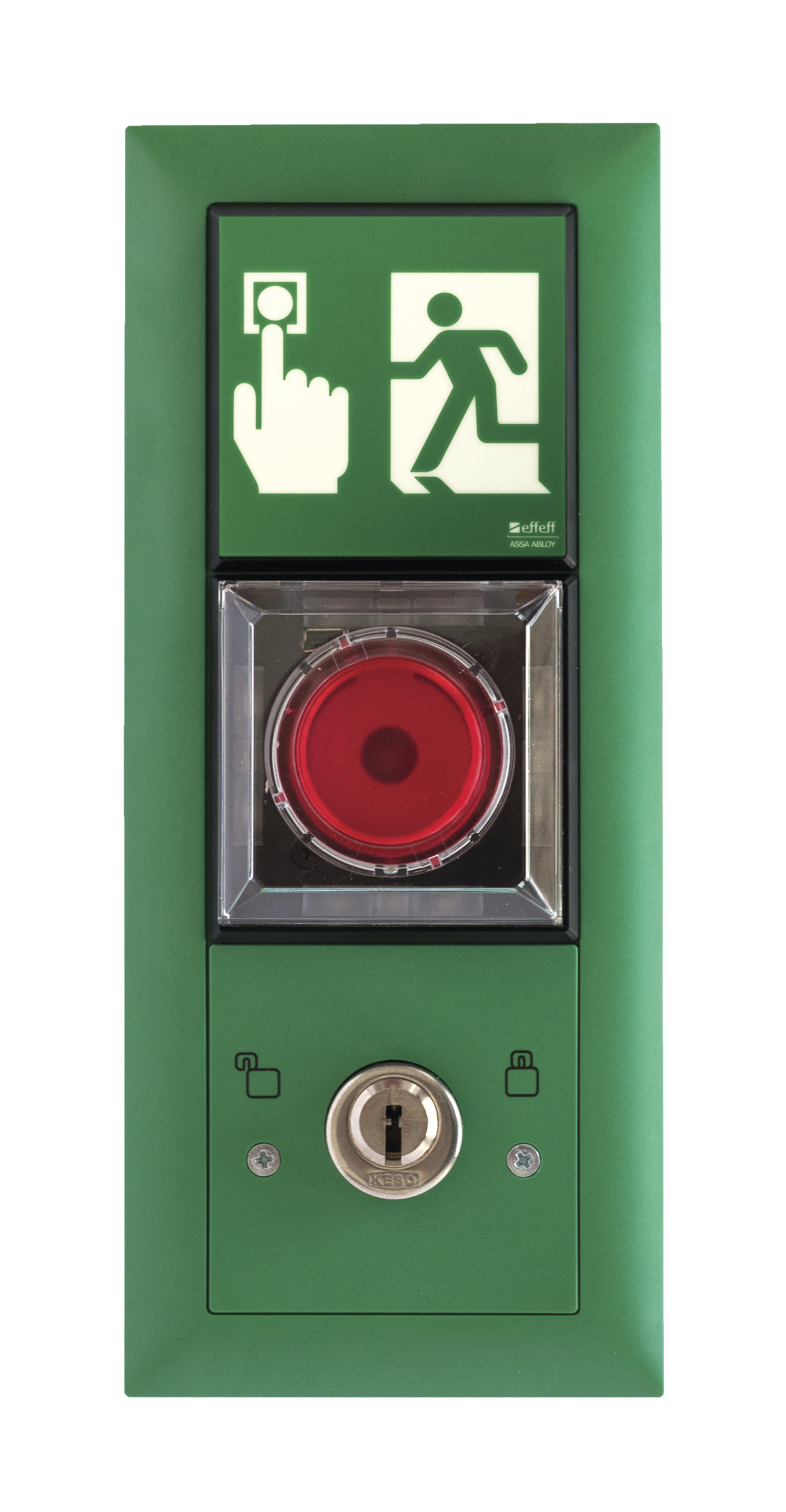

Escape door terminals

with illuminated sign; Feller Edizio green

  • ArtNo: 1385-14T4-CHF90

Product description

To control electric locking elements along escape routes; certified in compliance with EltVTR and DIN EN 13637:2015.

Escape door control module

  • Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
  • Integrated visual door status indicator with high-performance LEDs (green / red / yellow) signalling unlocked / locked / alarm status
  • Acoustic alarm device for alarm systems
  • Emergency button actuation sign
  • Tamper contact
  • Adjustable time periods for max. permanent release, delay permanent release, temporary release, pre-alarm, alarm time, guidance signal
  • Monitoring of time door is open in the case of temporary unlocking
  • With an input featuring adjustable parameters for:
  • Control of locking and unlocking, temporary release, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and door code device, or
  • Temporary release using an access control system, or
  • Priority locking via burglar alarm system, or
  • Unlocking via timer, etc.
  • With an input for:
  • Emergency release via fire alarm system
  • With a relay output featuring adjustable parameters for:
  • Door locked/unlocked, or
  • Door open/closed, or
  • Collective alarm, or
  • Individual alarm, or
  • Activation of electric strike/motorised lock/door automatics/arrestor system
  • Connections:
  • SYSCON-4: power supply
  • SYSCON-5: operating unit
  • Plug-in screw terminals
  • Model range 1385: TS bus interface for parameterisation using software (FT Manager) and networks for parallel operation of visual display software, panel and OPC server

sign

  • Illuminates
  • For identifying emergency button actuation
  • Pictogram according to DIN EN 13637:2015

Key switch module

  • For locking/unlocking, temporary unlocking, alarm resetting
  • Tamper contact
  • Cover which matches the corresponding switch range

Scope of delivery

  • 1 escape door control module
  • 1 key switch module
  • 1 pcs. illuminated sign module
  • 1 mains adapter
  • 1 frame/housing
  • 4 pcs. manuals
  • Accessories
Technical data
Rated voltage230 VAC
Output voltage24 V DC
Output currentMax. 0,9 A
Power consumption0,125 A
Connection to panel, visualisation system, OPC serverOnly model series 1385
Key switch on opposite side to direction of escapeYes (without display)
Emergency switchYes
Configured centrally using FT ManagerOnly model series 1385
Area of applicationFor indoor use, without condensation
ControlYes, integrated
Inputs1x parameterisable; 1x fire alarm system
Control elementKey switch with Euro profile cylinder; cam position adjustable 8 x 45°; length 30.5 mm
TS-Bus interfaceOnly model series 1385
Setting of times and functionsVia key switch; model series 1385 additionally via FT Manager (in conjunction with with bus controller)
Class of protectionIP 30
Power supplyPower supply included in the scope of supply
Outputs1x; 30 V / 1 A switchover contact; adjustable parameters
Stand-alone operation with I/O moduleOnly model series 1385
Stand-alone operation (offline)Yes
Operating temperature range-5 °C to +40 °C
DimensionTriple frame in switch range; installation in 3 flush-mounted switch boxes, 62.5 mm deep
Certified in compliance withEltVTR; DIN EN 13637:2015
