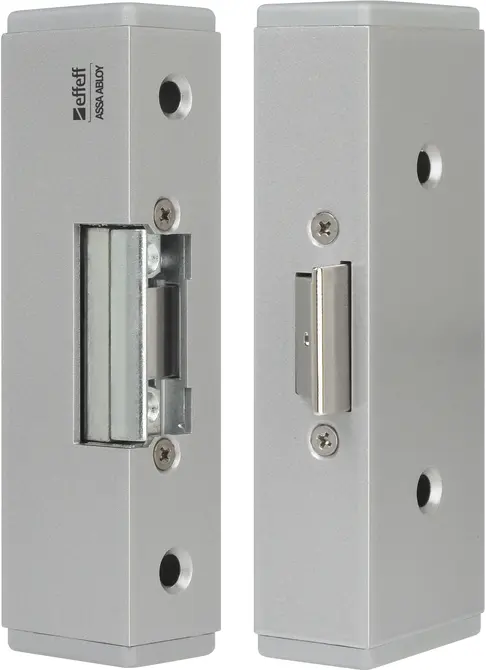

Electric strike 8037R
Product description
Model 8037 is ideally suited for retrofitting to doors. It is the best alternative to a holding magnet; small, strong and low power input.
Overview of Advantages
- Monitoring contact
- Low power consumption
- Simple mounting
- Installation on hinged and non-hinged side possible
- Installation on glass doors possible with additional adhesive plate and adhesive set
- Horizontal adjustment on electric strike and with optional L-bracket
- Vertical adjustment on latch bolt mating component
- Slim housing
| Adjustable keeper (FF, FaFix®) | Yes |
| Monitoring contact (RR) | Yes |
| Diode (05) | Yes |
| Fail-unlocked | Yes |
| Break-in resistance | 3000 N |
| Dimension | 126 x 40 x 30 mm |
| Operating temperature range | -15 °C to +40 °C |
| Installation position | Vertical and horizontal |
| Surface | Similar to RAL 9006 white aluminium |
| DIN direction | universal |
| Dimensions of latch bolt mating component | 126 x 50 x 30 mm |
| FaFix® adjustment range | 3 mm |
| Profile material | Aluminium, coated |
| Material in electric strike | Zinc die-cast |
| Latch bolt mating component material | Steel/die-cast zinc |
| Order number | Description |
|---|---|
| 8037R--N--91E91 | Without striking plate, 12 V DC |
| 8037R--N--91F91 | Without striking plate, 24 V DC |
