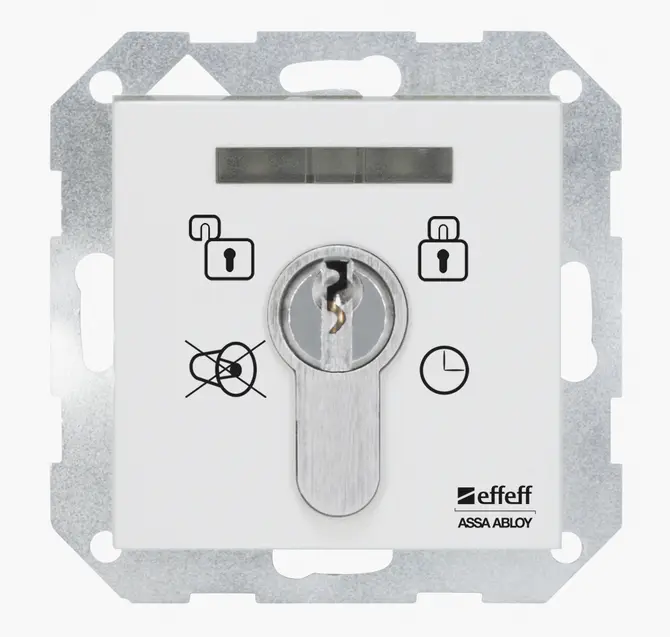

Flush-mounted key switch

With display; Jung AS500; alpine white

  • ArtNo: 1380E03-1--0400
  • EAN: 4042203329775

Product description

An operating unit to release doors against direction of escape (indoors) or an operating unit in direction of escape for applications without local emergency button; in conjunction with escape door control unit.

Key switch module

  • With a momentary n.o. contact which can be operated to the left or right,
  • For locking/unlocking, temporary releasing
  • With Euro profile half cylinder, including 3 keys
  • Cover which matches the corresponding switch range
  • Connections: plug-in screw terminals

Scope of delivery

  • 1 key switch
  • 1 operating manual

Note

  • Frames are not enclosed with the flush-mounted key-operated switch.
Technical data
Rated voltage12-24 VDC SELV
Power consumption0.04 A at 24 V DC
Type of cylinderDesigned for use with client-supplied profile half-cylinder; adjustable cam position: 8 x 45°; 35 mm long
LED displayYes (red, green, yellow)
BuzzerYes
Sabotage switchYes
Operating temperature range0 °C to +40 °C
Class of protectionIP 30

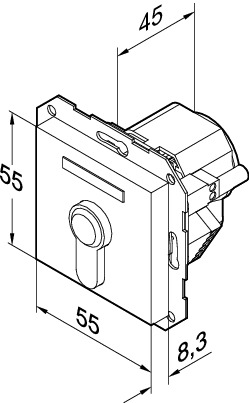

DimensionTo install in a flush-mounted switch box 62.5 mm deep; frame required
Switch rangeJung AS500 - gloss alpine white
