Escape door control unit 720-42

Product description

To control electric locking systems in doors along escape routes in conjunction with applications without local emergency button, or applications with local emergency button and delayed release; certified.

Escape door control module

  • Can be connected to door terminals and operating components
  • Can be connected to locking components
  • Adjustable time period for max. continuous release, delay in continuous release, temporary release, pre-alarm, alarm interval, guidance signal,
  • Monitoring of time door is open during temporary release.
  • With 4 inputs featuring adjustable parameters for:
  • Control of locking and unlocking, temporary release, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and keypad units.
  • Temporary release using an access control system, or
  • Emergency release via fire alarm system, or
  • Priority locking via burglar alarm system, or
  • Unlocking via timer, etc.
  • With 4 relay outputs featuring adjustable parameters for:
  • Door locked/unlocked, or
  • Door open/closed, or
  • Collective alarm, or individual alarm,
  • Activation of electric strike/motorised lock/door automatics/arrestor system.
  • TS bus interface for parameterisation using software (FT Manager) and networks for parallel operation of visual display software, panel and OPC server
  • Security relay module to install applications without emergency button at door
  • Connections: plug-in screw terminals
Technical data
Rated voltage12-24 V DC SELV
Output voltage12-24 V DC
Output currentfor external consumers: max. 2 A (depending on the external power supply unit)
Power consumption0.2 A at 24V (including safety relay module)
ControlYes
Power supplyExternal power supply required
Certified in compliance withEltVTR
Connection to panel, visualisation system, OPC serverYes
Stand-alone operation with I/O moduleYes
Stand-alone operation (offline)Yes
Emergency switchNo
Control elementNo, external operating unit/door terminal required
Setting of times and functionsVia menu buttons and display on device using FT Manager (together with bus controller)
Operating temperature range-20 °C to +40 °C
Class of protectionIP 30
DimensionControl unit: WxHxD: 159x90x60mm; for installation on DIN rail (9 HP), safety relay module: WxHxD: 87x97x63mm or installation on DIN rail (5HP)
Inputs4x; adjustable parameters
Outputs4x; adjustable parameters, 30 V / 1 A switchover contact
Key switch on opposite side to direction of escapeYes
Applications without local emergency buttonYes, in conjunction with central emergency button
Applications featuring local emergency button with delayed releaseYes, in conjunction with central emergency button and FT-Manager
Variants that can be ordered
Order number
Description

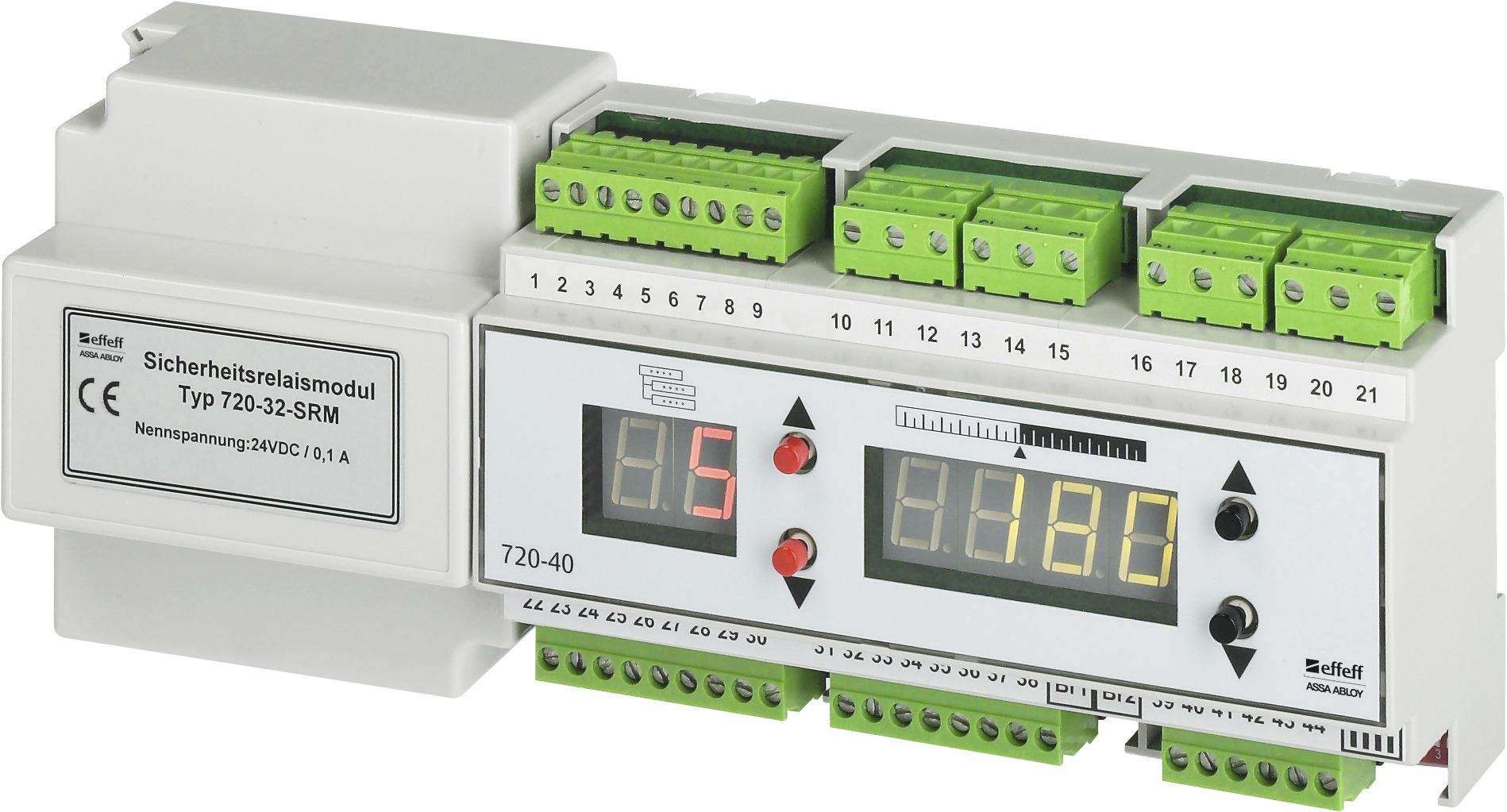

720-42-------00For DIN rail; 12/24 V AC/DC; with safety relay module
