Escape door control device 720-40

Product description

To control electric locking systems in doors along escape routes; certified.

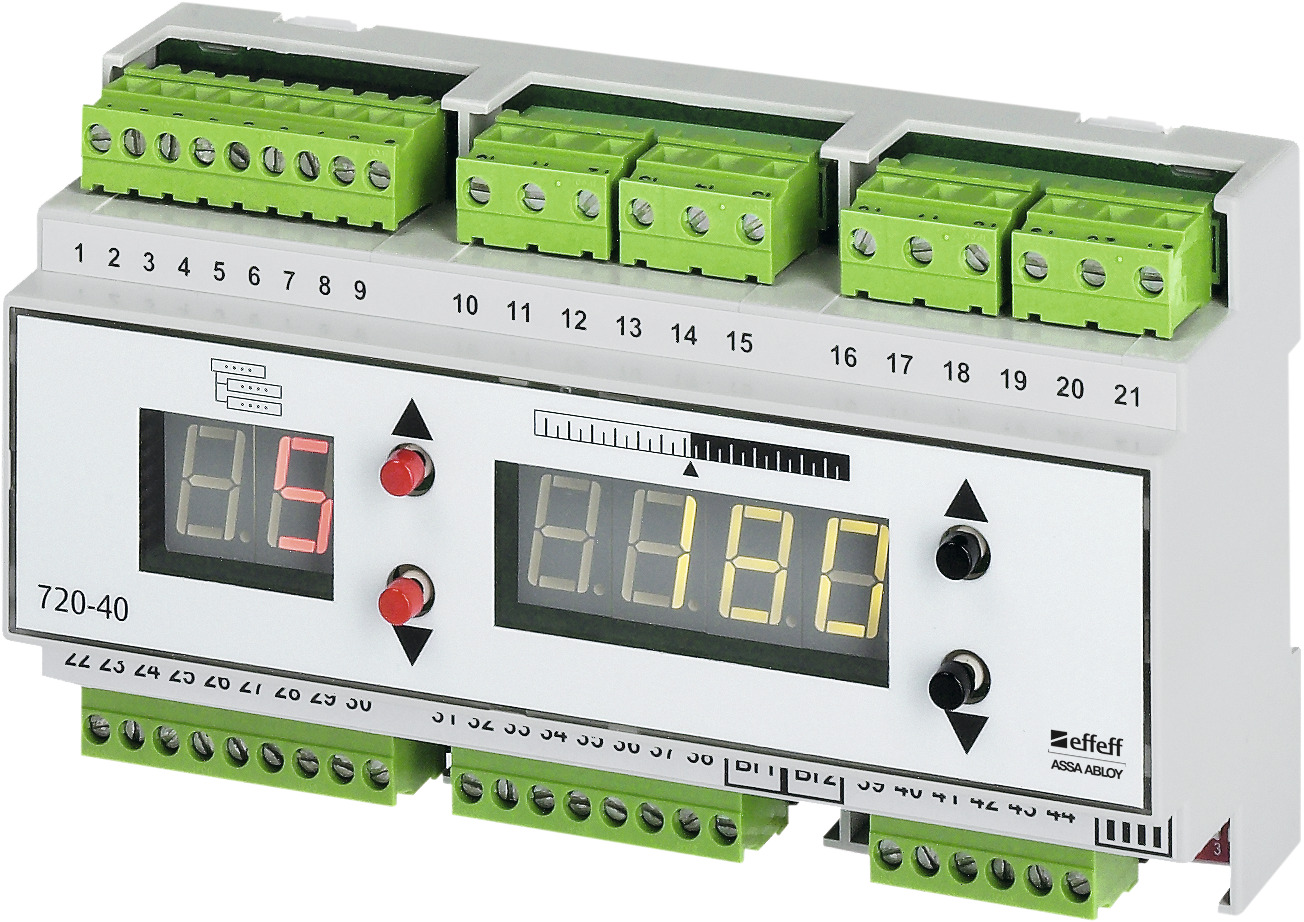

Escape door control module

  • Can be connected to door terminals and operating components
  • Can be connected to locking components
  • Adjustable time period for max. continuous release, delay in continuous release, temporary release, pre-alarm, alarm interval, guidance signal,
  • Monitoring of time door is open during temporary release.
  • With 4 inputs featuring adjustable parameters for:
  • Control of locking and unlocking, temporary release, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and keypad units.
  • Temporary release using an access control system, or
  • Emergency release via fire alarm system, or
  • Priority locking via burglar alarm system, or
  • Unlocking via timer, etc.
  • With 4 relay outputs featuring adjustable parameters for:
  • Door locked/unlocked, or
  • Door open/closed, or
  • Collective alarm, or individual alarm,
  • Activation of electric strike/motorised lock/door automatics/arrestor system.
  • TS bus interface for parameterisation using software (FT Manager) and networks for parallel operation of visual display software, panel and OPC server
  • Connections: plug-in screw terminals
Technical data
Rated voltage12-24 VDC SELV
Output voltage12-24 V DC
Output currentfor external consumers: max. 2 A (depending on the external power supply unit)
Power consumption0.1A at 24V
ControlYes
Power supplyExternal power supply required
Certified in compliance withEltVTR
Connection to panel, visualisation system, OPC serverYes
Stand-alone operation with I/O moduleYes
Stand-alone operation (offline)Yes
Emergency switchNo
Control elementNo, external door terminal required
Setting of times and functionsVia menu buttons and display on device using FT Manager (together with bus controller)
Operating temperature range-20 °C to +40 °C
Class of protectionIP 30
DimensionWxHxD: 159x90x60mm; for installation on DIN rail (9 HP)
Inputs4x; adjustable parameters
Outputs4x; adjustable parameters, 30 V / 1 A switchover contact
Key switch on opposite side to direction of escapeYes
Applications without local emergency buttonNo
Applications featuring local emergency button with delayed releaseNo
Variants that can be ordered
Order number
Description
720-40-------00For top hat rail; 12/24 V DC
