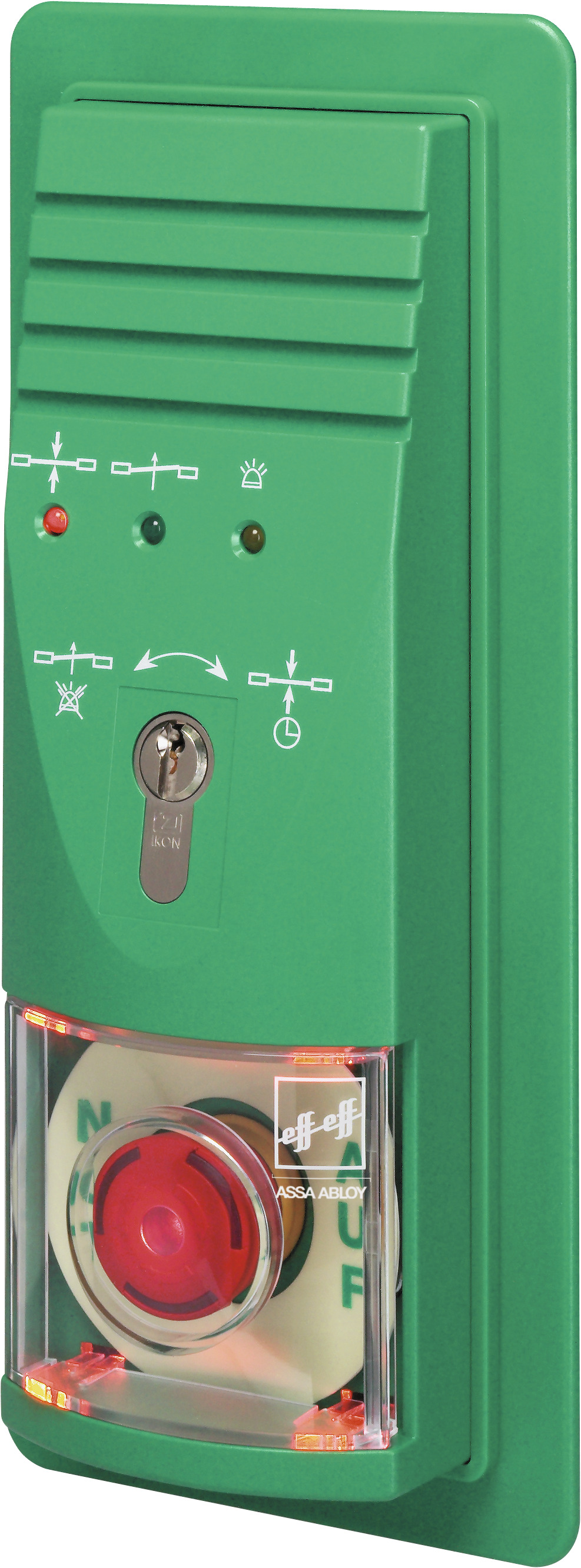

Door terminal 1337-11
Product description
An operating unit to release doors in direction of escape in conjunction with external escape door control unit.
Escape door control module
- Emergency button with re-usable, non-splintering, protective emergency switch cover and integrated visual door status indicator with high-performance LEDs
- Key switch to control door
- With Euro profile half cylinder, including 3 keys
- Emergency button sign (arrow pointing downwards)
- Plastic housing
| Rated voltage | 24 VDC SELV |
| Power consumption | 0,06 A |
| Control | No, external escape door control unit required |
| Emergency switch | Yes |
| Control element | Key switch with Euro profile cylinder; cam position 8 x 45°; 30.5 mm long |
| LED display | Yes (red, green, yellow) |
| Buzzer | Yes |
| Sabotage switch | Yes |
| Operating temperature range | 0 °C to +40 °C |
| Class of protection | IP 20 |

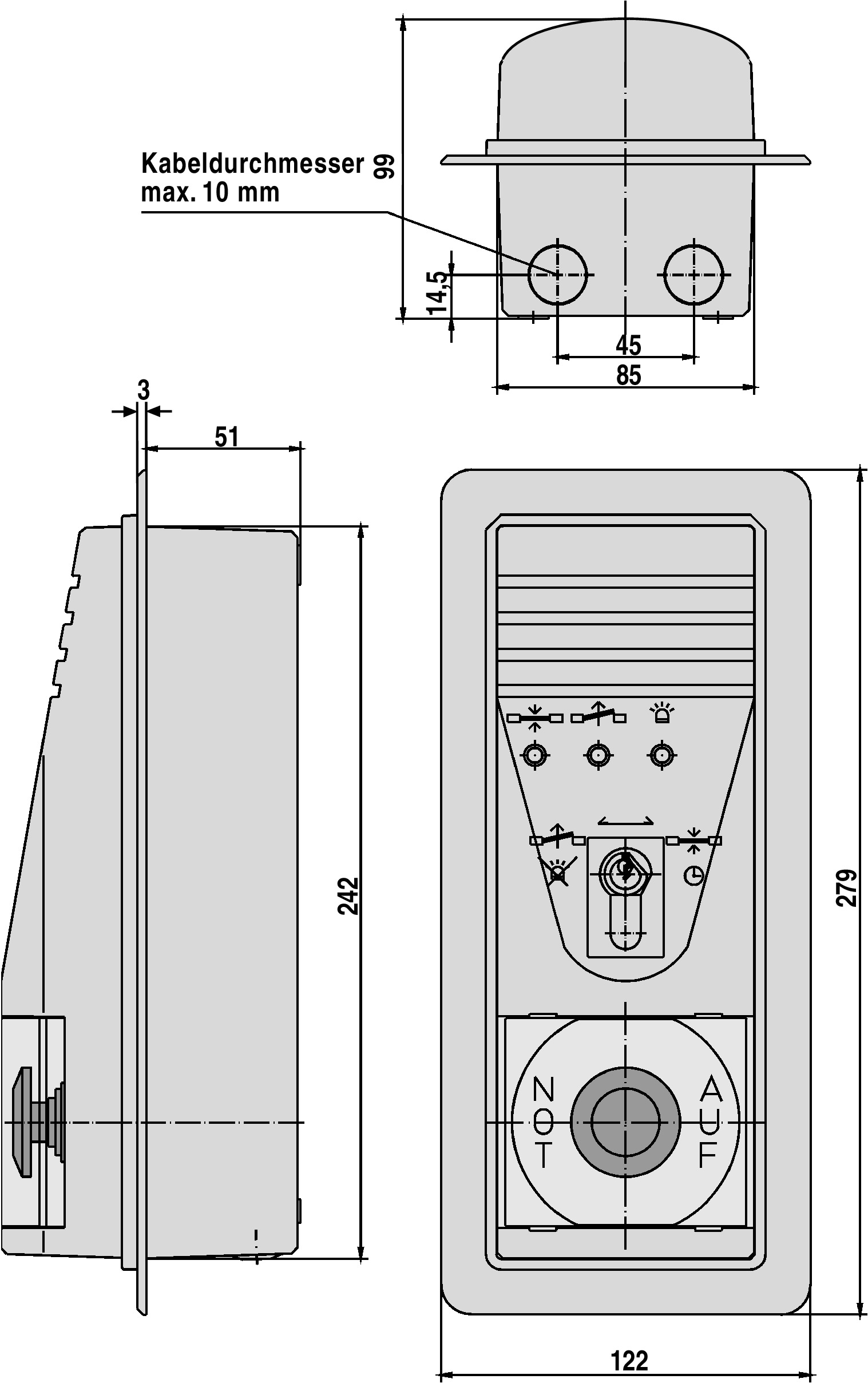

| Dimension | Flush-mounted: (HxWxD) 249x92x47 mm; flush-mounted case: (HxWxD) 242x85x51 mm |
| Order number | Description |
|---|---|
| 1337-11---93-00 | Operating device; flush-mounted; grey white RAL 9002 |
