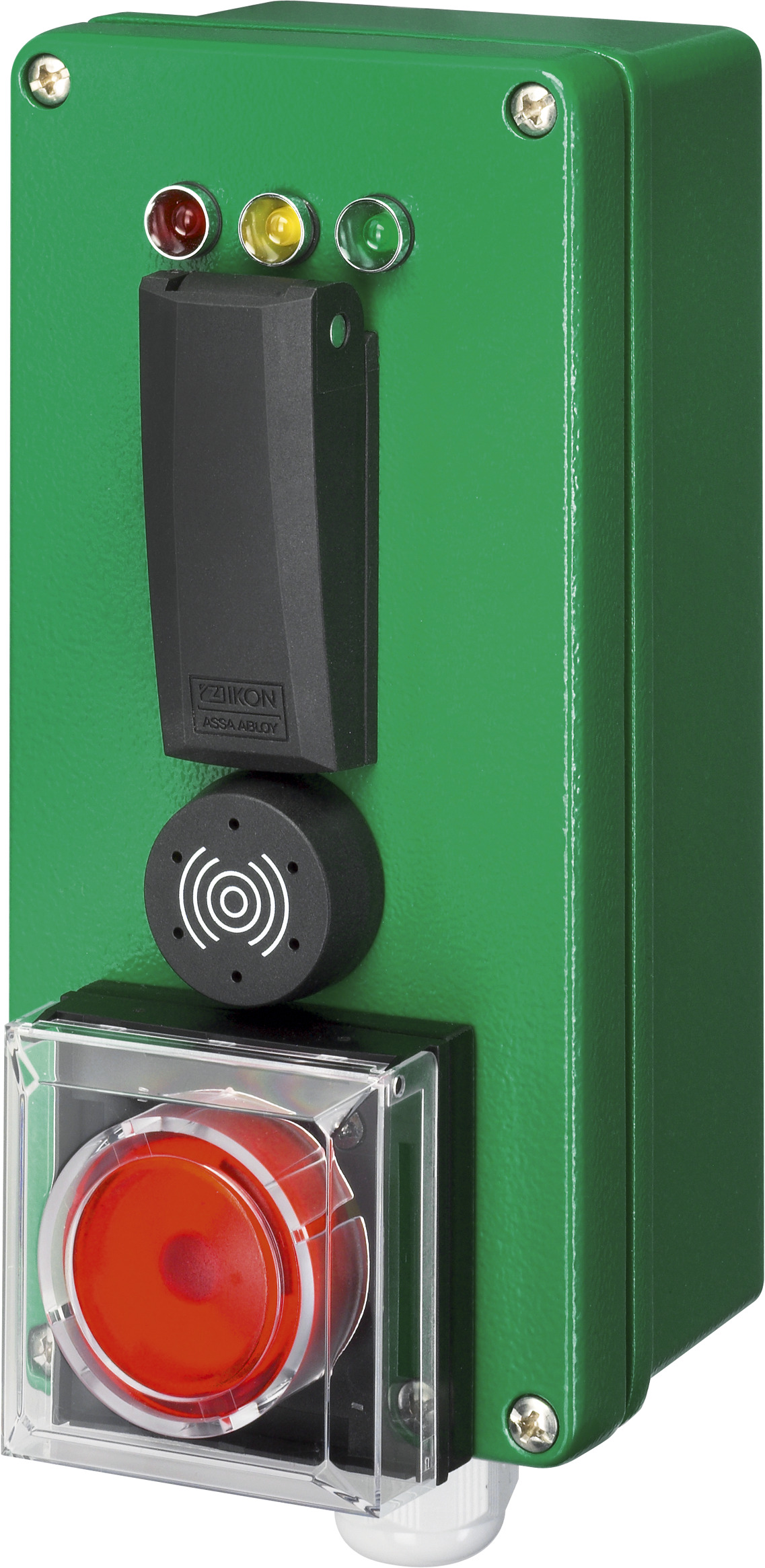

Door terminal

With emergency switch and cylinder; IP54; surface-mounted; green

  • ArtNo: 1337-12-10---00
  • EAN: 4042203441651

Product description

An operating unit in direction of escape in conjunction with external escape door control unit; suitable for outdoor use.

Escape door control module

  • Illuminated emergency button
  • Status display (LED)
  • Key switch with twin protection cover to control door
  • With Euro profile half cylinder, including 3 keys
  • Sign emergency button
  • Metal housing
Technical data
Rated voltage12-24 VDC SELV
Power consumption0.11 A at 24 V
ControlNo, external escape door control unit required
Emergency switchYes
Control elementKey switch with Euro Profile cylinder & escutcheon with twin protection cover; cam position adjustable: 8 x 45°; 30.5 mm long
LED displayYes (red, green, yellow)
BuzzerYes
Sabotage switchYes (casing lid)
Operating temperature range-25 °C to 55 °C
Class of protectionIP 54 bei geschlossener Zylinderabdeckung

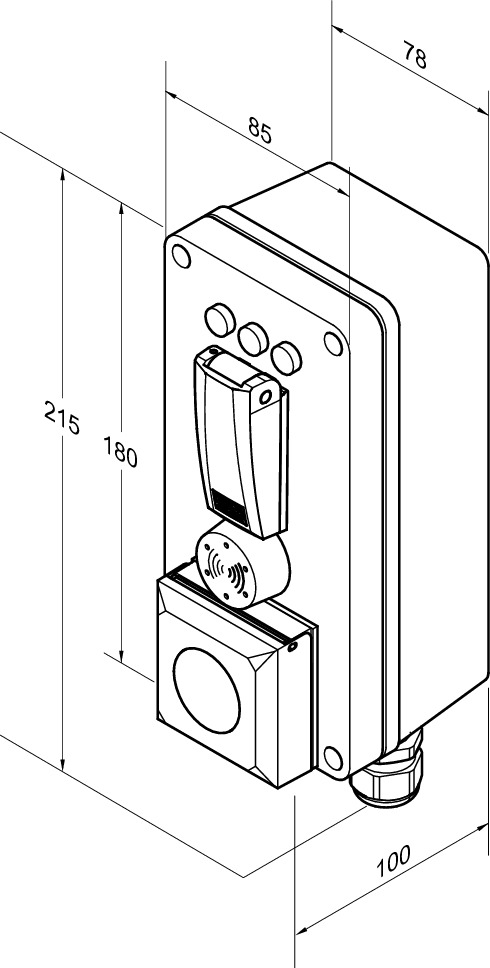

Dimension(WxHxD): 85x205x101 mm
