Product description

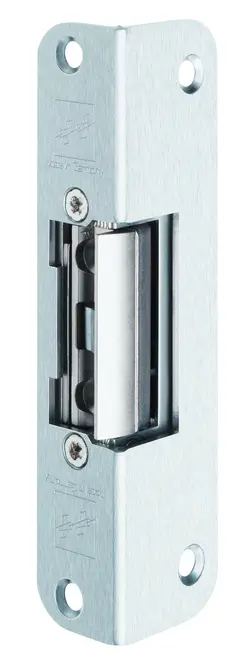

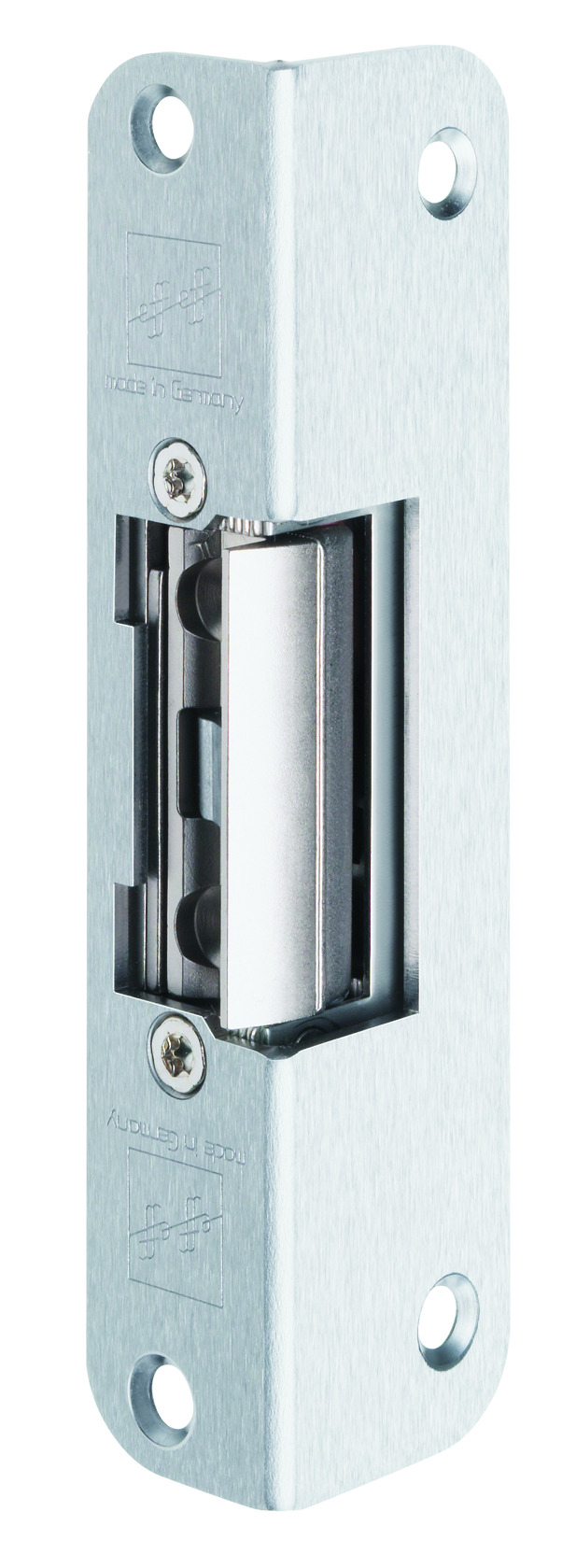

The compact design of the effeff Escape Door Strike 332® is comparable with a standard electric strike, thus guaranteeing fast, simple installation in a wide variety of different profiles and frames.
Overview of Advantages
- radius keeper
- Small symmetrical construction shape
- Min. 2000 N, max. 3000 N holding force in accordance with prEN 13637
- Unlocking under pre-load with 100% holding force
- Monitoring contact as microswitch and armature contact as light barrier
- DL/DR and horizontal universal installation position
- Low current consumption 100 mA (24 V), 200 mA (12 V)
- Adjustable FaFix® latch: 4 mm adjustment range with 0.5 mm increments
- Adjustable with Fix®-grooves in the housing
- Monitoring contact integrated in the housing
- Monitoring flap moves together with the FaFix® screw-on attachment, i.e. the switching point always remains the same
- Approved for installation as secondary locking system on fire doors
Scope of delivery
- 1 electric strike & striking plate combination
