Product description

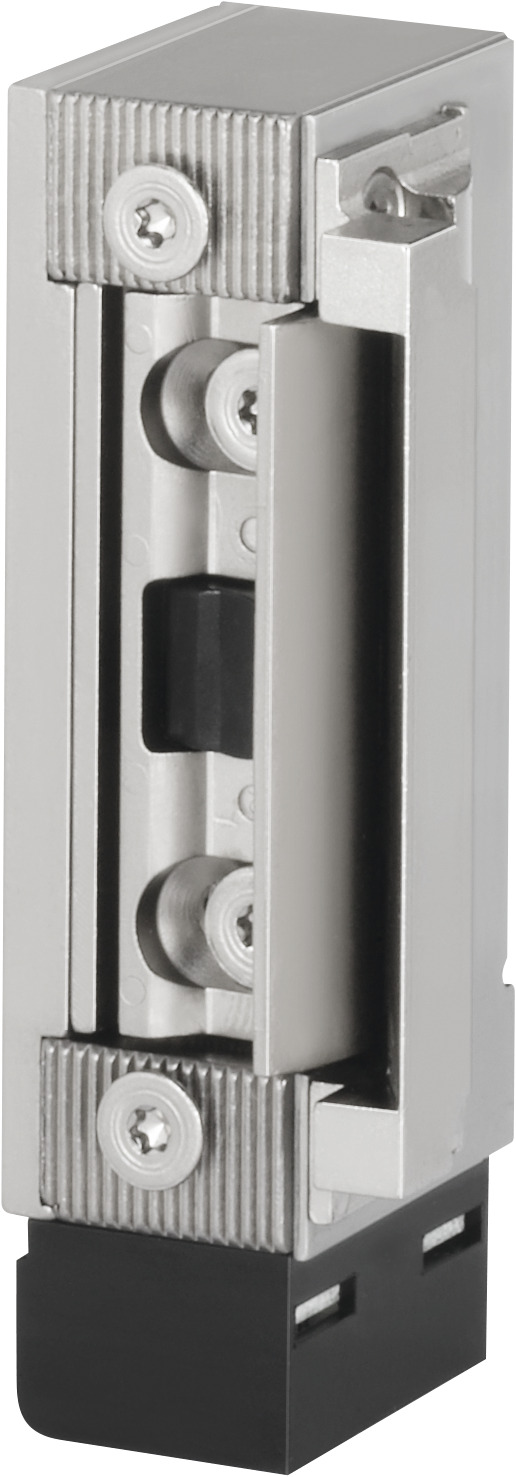

The compact construction of the effeff 332,208 allows rapid, straightforward mounting onto a wide variety of door frame and profiles.
Overview of Advantages
- radius keeper
- Small symmetrical construction shape
- Min. 2000 N, max. 3000 N holding force in accordance with prEN 13637
- Unlocking under pre-load with 100% holding force
- Monitoring contact is potential-free and armature contact is non-isolated *
- DL/DR and horizontal universal installation position

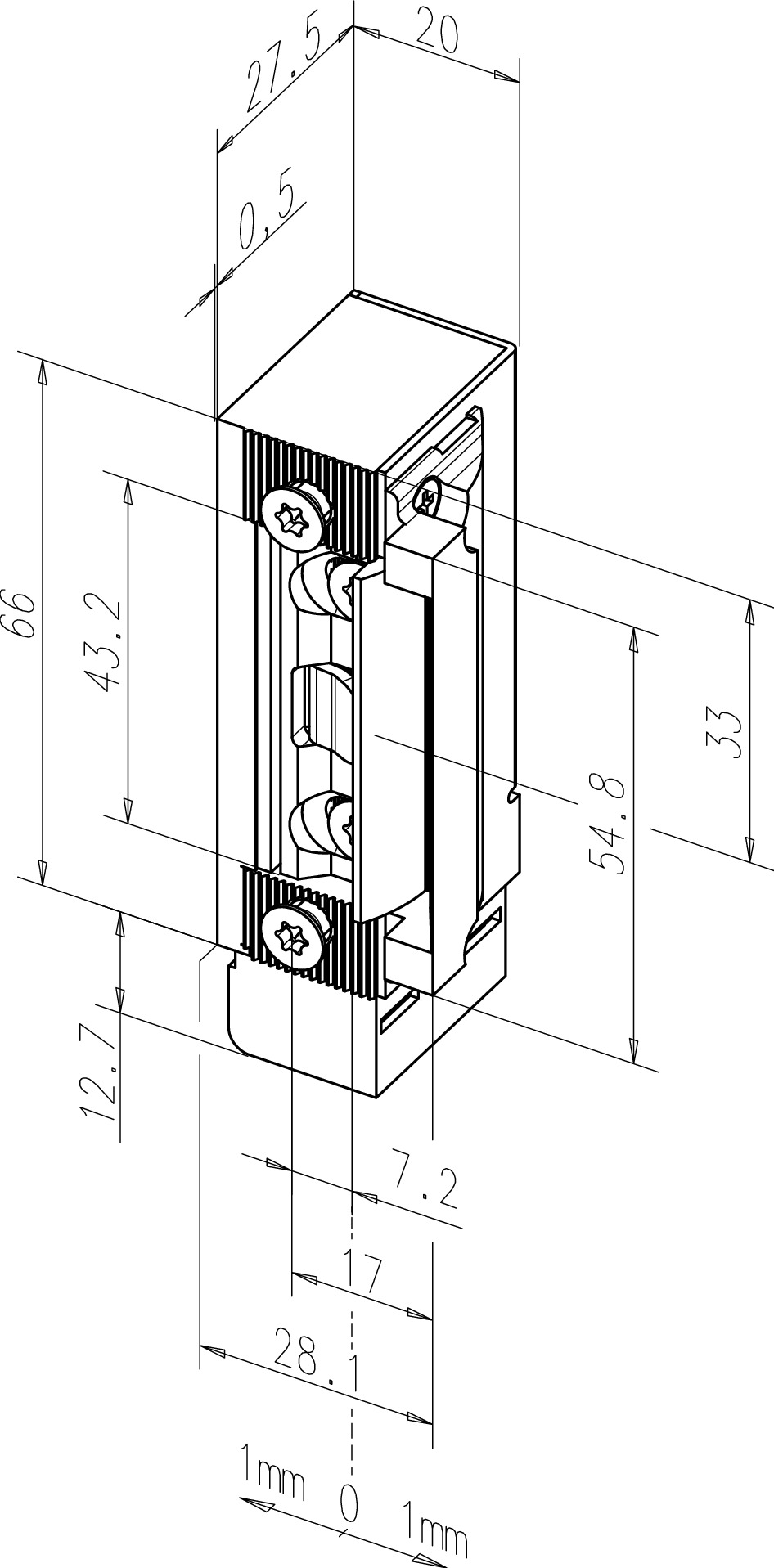

- Compact fitting dimensions
- Adjustable FaFix® latch: 2 mm adjustment range with 0.5 mm increments
- Compatible with ProFix® 1 striking plates
- Monitoring contact integrated in the housing
- Monitoring flap moves together with the FaFix® screw-on attachment, i.e. the switching point always remains the same
Note
- Can only be used as a supplementary locking device on fire doors
- * Coupling Relay 7480 is required for parallel operation.
