Door visualisation

Product description

Web-based door visualisation for escape route technology for devices with TS bus interface in conjunction with the TS bus controller 970-TSBC-30 for the control and monitoring of:

Doors with escape door locking device

Doors with electromechanical locking elements such as electric strikes, motorised lock, motorised bolt

Doors with condition monitoring via door or bolt switch contacts

Door-Visualization IIS Version

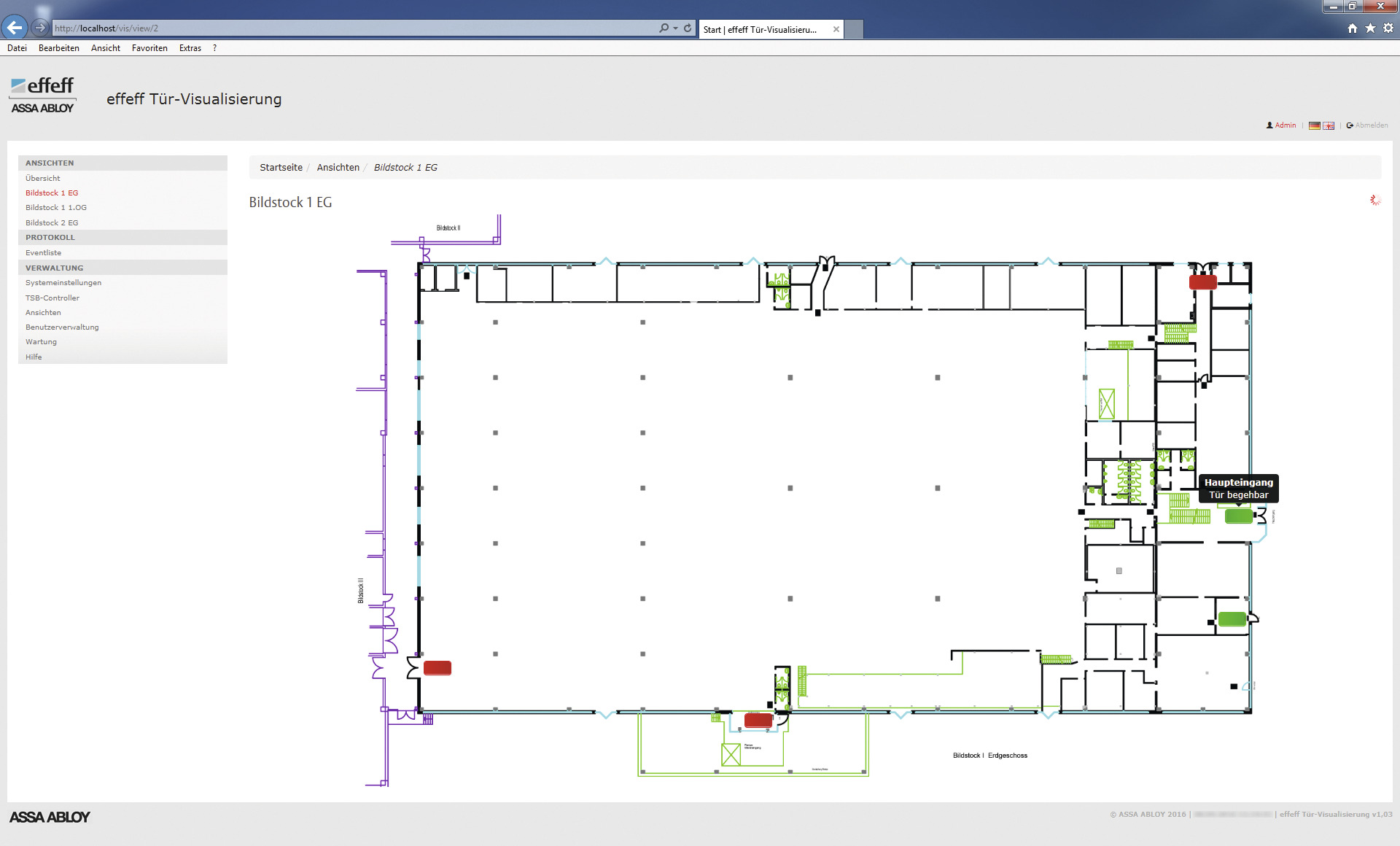

Illustration of panel and floorplan views Floor plan views in JPG, PNG or SVG formats can be included. Configuration takes place via the web interface.

System requirements:

Single-user installation Windows 7 Professional, multi-use solution Windows server operating systems from 2008 version, each with IIS (internet information services) from version 7.5

Overview of Advantages

• 10 views as a panel or doorplan view
• 10 linkable TSB controllers (max. 200 doors)
• Event list with filter capability
• Views can be individually configured by the user, including doorplan views
• User administration
• Backup/restore function
• Single/multi-user version

Note

• Authorization and knowledge is required for installation. Installation support on request.
