MEDIATOR® Lock 609 RR
Product description

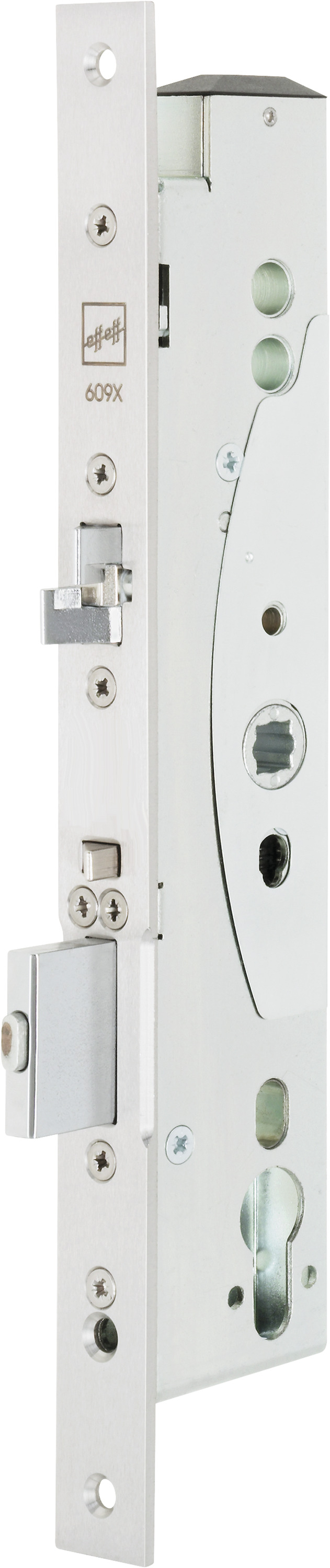

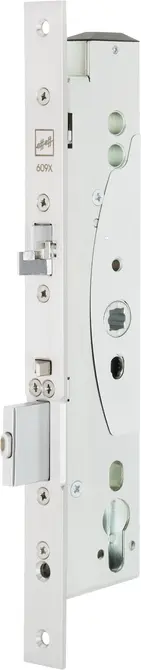

The MEDIATOR® lock in its tubular frame version is available with different backsets and a comprehensive range of accessories.
Overview of Advantages
- Automatic locking system: Bolt and latch are blocked, therefore higher level of security
- Mechanical follow up control between double action latch and control latch
- Integrated panic function via internal door handle
- Changeover function for unlocking with a key from the outside
- Minimum rear backset for tubular frame design: 15 mm
Note
- MEDIATOR® locks have a bolt through the handle and thus require front door furniture (inside handle or panic push bar, outside knob or push bar).
| Backset | 30, 35, 40, 45 mm |
| Distance | Euro profile cylinder: 92 mm |
| Type of cylinder | Euro profile cylinder |
| Bolt throw | 20 mm |
| Follower | 9 mm |
| VdS-approval | G 109 032, M 109314, Z 109001 |
| Approval DIN EN 179 | Certificate of Constancy of performance 0432-CPR-00007-11 |
| DIN EN 1125 approval | Certificate of Constancy of performance 0432-CPR-00007-12 |
| Building authorities test certificate | P-120003555 |
| Mech. strength (EN 12209:2004) | 200,000 cycles, 50N load on latch, Class 6 protection |
| Order number | Description |
|---|---|
| 609-102PZ-----1 | narrow style; backset 30 mm; distance 92 mm; spindle 8-9 mm; angular forend 24 mm |
| 609-202PZ-----1 | narrow style; backset 35 mm; distance 92 mm; spindle 8-9 mm; angular forend 24 mm |
| 609-302PZ-----1 | narrow style; backset 40 mm; distance 92 mm; spindle 8-9 mm; angular forend 24 mm |
| 609-402PZ-----1 | narrow style; backset 45 mm; distance 92 mm; spindel 8-9 mm; angular forend 24 mm |
