MEDIATOR® multi-point lock 629X RR
Product description
The MEDIATOR ® multi-point lock is available with different backsets in its tubular frame version.
Overview of Advantages
- Automatic locking system: Bolt and latch are blocked, therefore higher level of security
- Additional sturdy hooked bolts for improved burglary protection. The hooked bolts are not designed to apply pressure to door seals. The system will only work effectively if there is no side pressure on the bolt.
- Mechanical follow up control between double action latch and control latch
- Integrated panic function via internal door handle
- Changeover function for unlocking with a key from the outside
- Minimum rear backset for tubular frame design: 15 mm
Note
- MEDIATOR® locks have a bolt through the handle and thus require front door furniture (inside handle or panic push bar, outside knob or push bar).

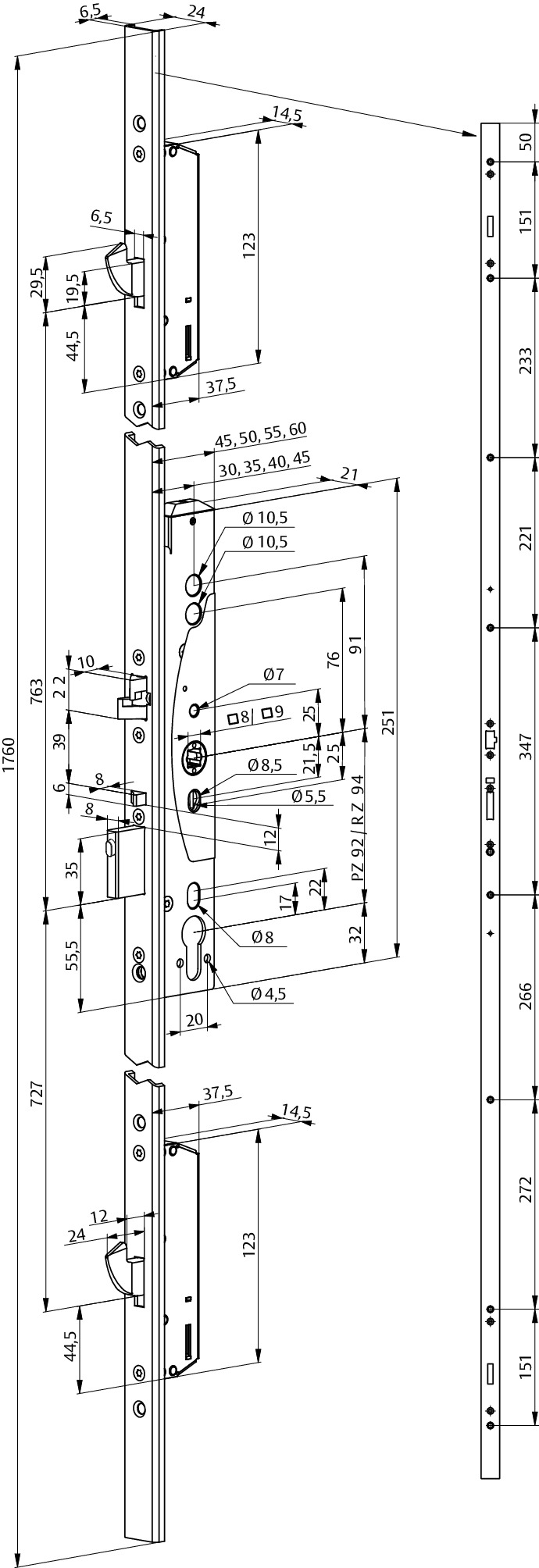

| Forend | 24 x 6,5 x 1760 mm |
| Backset | 30, 35, 40, 45 mm |
| Distance | Euro profile cylinder: 92 mm |
| Bolt throw | 20 mm |
| Follower | 9 mm |
| Approval DIN EN 179 | Certificate of Constancy of performance 0432-CPR-00007-11 |
| DIN EN 1125 approval | Certificate of Constancy of performance 0432-CPR-00007-12 |
| Building authorities test certificate | P-120003555 |
| Mech. strength (EN 12209:2004) | 200,000 cycles, 50N load on latch, Class 6 protection |
| Order number | Description |
|---|---|
| 629X100PZ-----1 | narrow style; backset: 30 mm; centre distance: 92 mm; u-shaped forend 24 x 6.5 mm; DIN universal |
| 629X200PZ-----1 | narrow style; backset: 35 mm; centre distance: 92 mm; u-shaped forend 24 x 6.5 mm; DIN universal |
| 629X300PZ-----1 | narrow style; backset: 40 mm; centre distance: 92 mm; u-shaped forend 24 x 6.5 mm; DIN universal |
| 629X400PZ-----1 | narrow style; backset: 45 mm; centre distance: 92 mm; u-shaped forend 24 x 6.5 mm; DIN universal |
