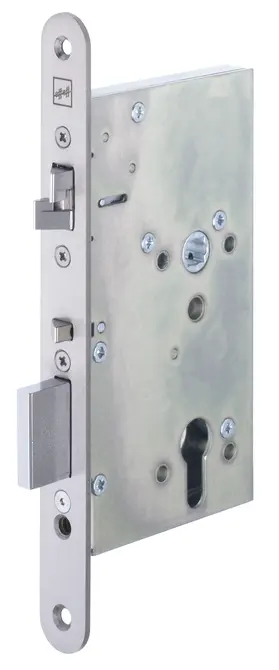

Mechanical security lock 309X502PZ

Product description

Mechanical safety lock 309X is primarily used where a door needs to be secured using a 20 mm bolt throw for insurance reasons.

Overview of Advantages

• Mechanical automatic locking system
• With double-action lock, so can be used with both DIN left and right
• Mechanical self-locking process control between double-action lock and control latch
• Burglary-resistant due to solid bolt with 20 mm throw
• Burglary resistance up to resistance class 2 can be achieved in suitable door systems
• Panic function – approval in accordance with EN 179 – approval in accordance with EN 1125
• Suitable for fire doors
• Used with front door furniture
• Changeover function for unlocking with a key from the outside

Scope of delivery

• 1 piece security lock
• 1 operating manual

Note

• Series 309X locks have a continuous follower and therefore require an exchange fitting (inside handle or crash bar, outside knob or crash bar).
