Flat strike plate for fire protection 03040
Short; latch bolt guide
Product description

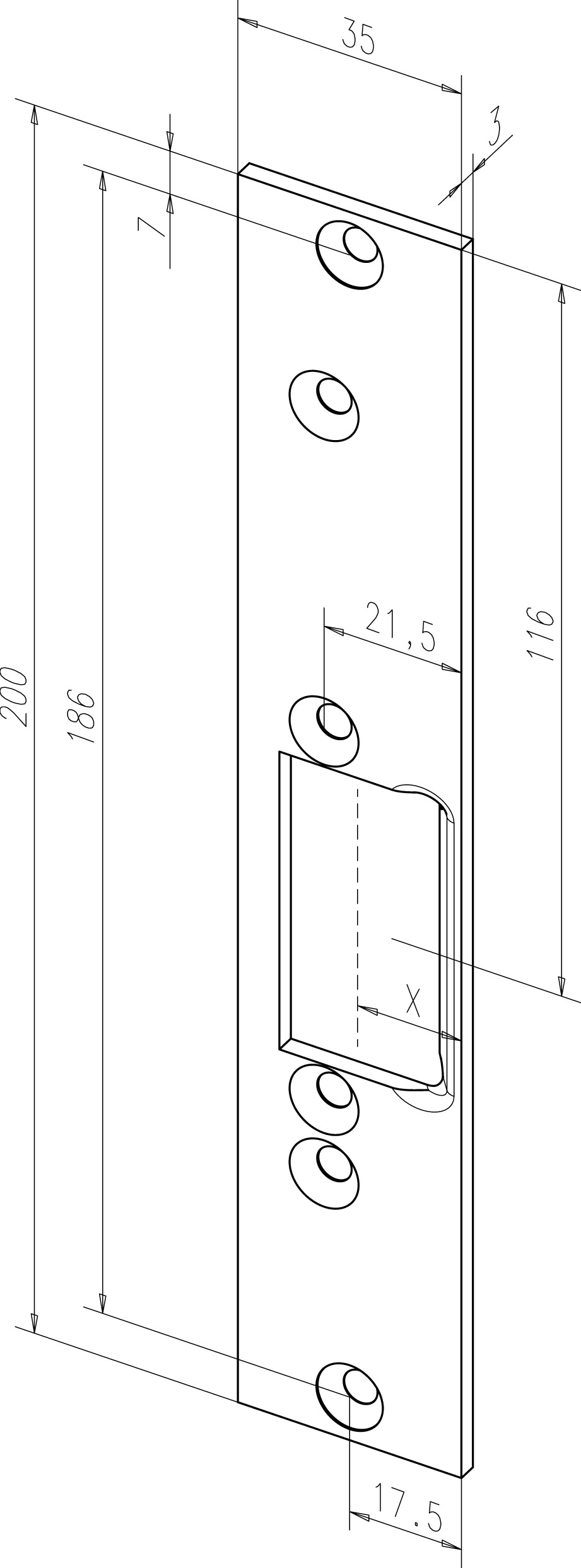

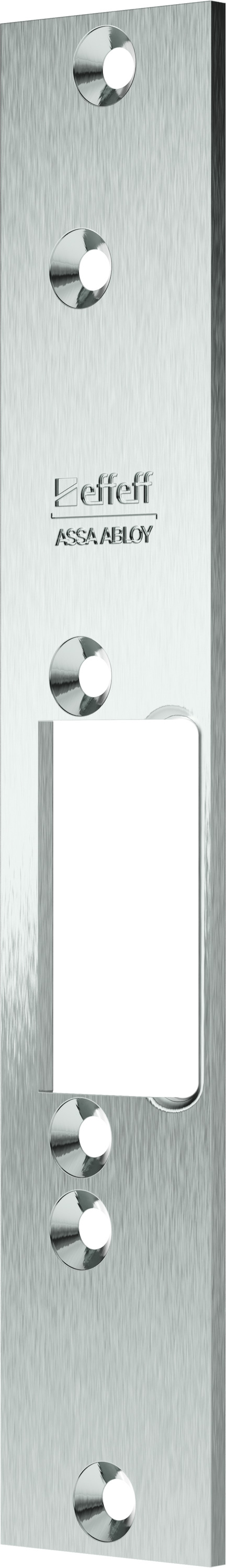

Short flat striking plate with latch bolt aperture.
Overview of Advantages
- With latch bolt guide
- For escape door strikes from the 331U Model Range as well as high-security strike 131 with fixed latch
| Length | 200 mm |
| Width | 35 mm |
| Thickness | 3 mm |
| Dead bolt cutout | No |
| Latch bolt guide | Yes |
| Colour | 40 |
| Colour | Smoothed, galvanised |
| Order number | Description |
|---|---|
| -------03040-04 | 200 x 35 x 3 mm, ground and galvanised, DIN L |
| -------03040-05 | 200 x 35 x 3 mm, ground and galvanised, DIN L |
