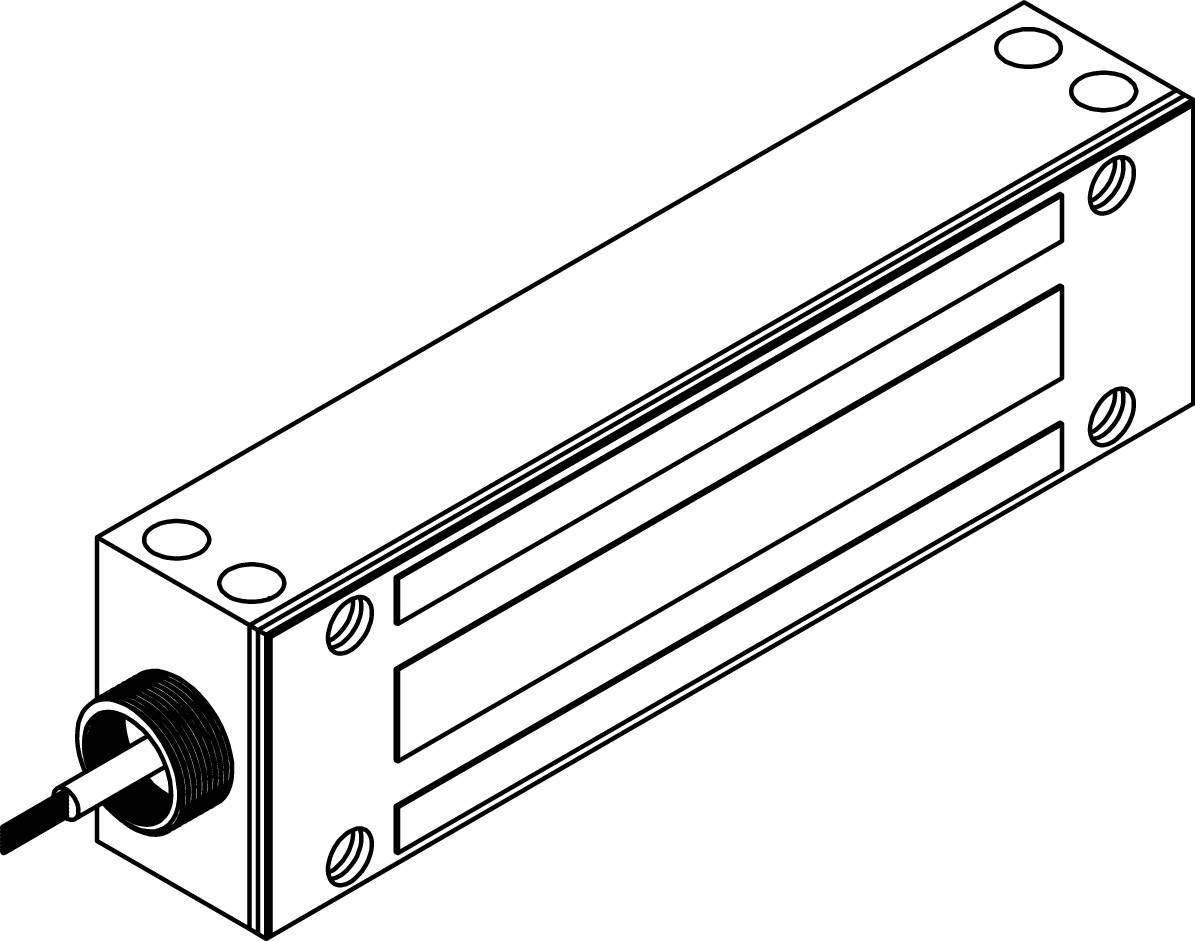

Gate-magnet
Product description
Gate-magnets have a very high adhesive force and are also suitable for outdoor installation. They are often used for locking larger doors and gates. Surface installation. Different versions with integrated hall-sensor for locked signal and accessories are available.
Note
- Holding forces of holding magnets may vary due to material-related fluctuations
| Input operating voltage | 12/24 VDC |
| Current consumption at 12 V DC | 505 mA |
| Current consumption at 24 V DC | 260 mA |
| Protection rating | IP 65 |
| Mounting method | Surface mounting |
| Material | Stainless steel housing surface |
| Operating temperature range | -20 °C to +60 °C |
| Holding force | 1200 lbs |
| Order number | Description |
|---|---|
| MAGG1200SM----- | 1200 lbs (ca. 5300 N), 12-24V DC, surface mounted installation |
| MAGG1200SM----H | 1200 lbs (ca. 5300 N), 12-24V DC, surface mounted installation, hall-sensor |
