L-mounting bracket

for double maxi-magnets, L-shaped

  • ArtNo: MAGAC-L-AL1200D
  • EAN: 4042203789586

Scope of delivery

  • 2 pieces mounting brackets
Technical data
MaterialAluminium
Length266 mm
Width76.3 mm
Depth38 mm
Downloads for Product

General

Product sheet L-mounting bracket (PDF)
Mounting instruction for mounting bracket MAGAC-L-AL (PDF, 172 KB)

Medias

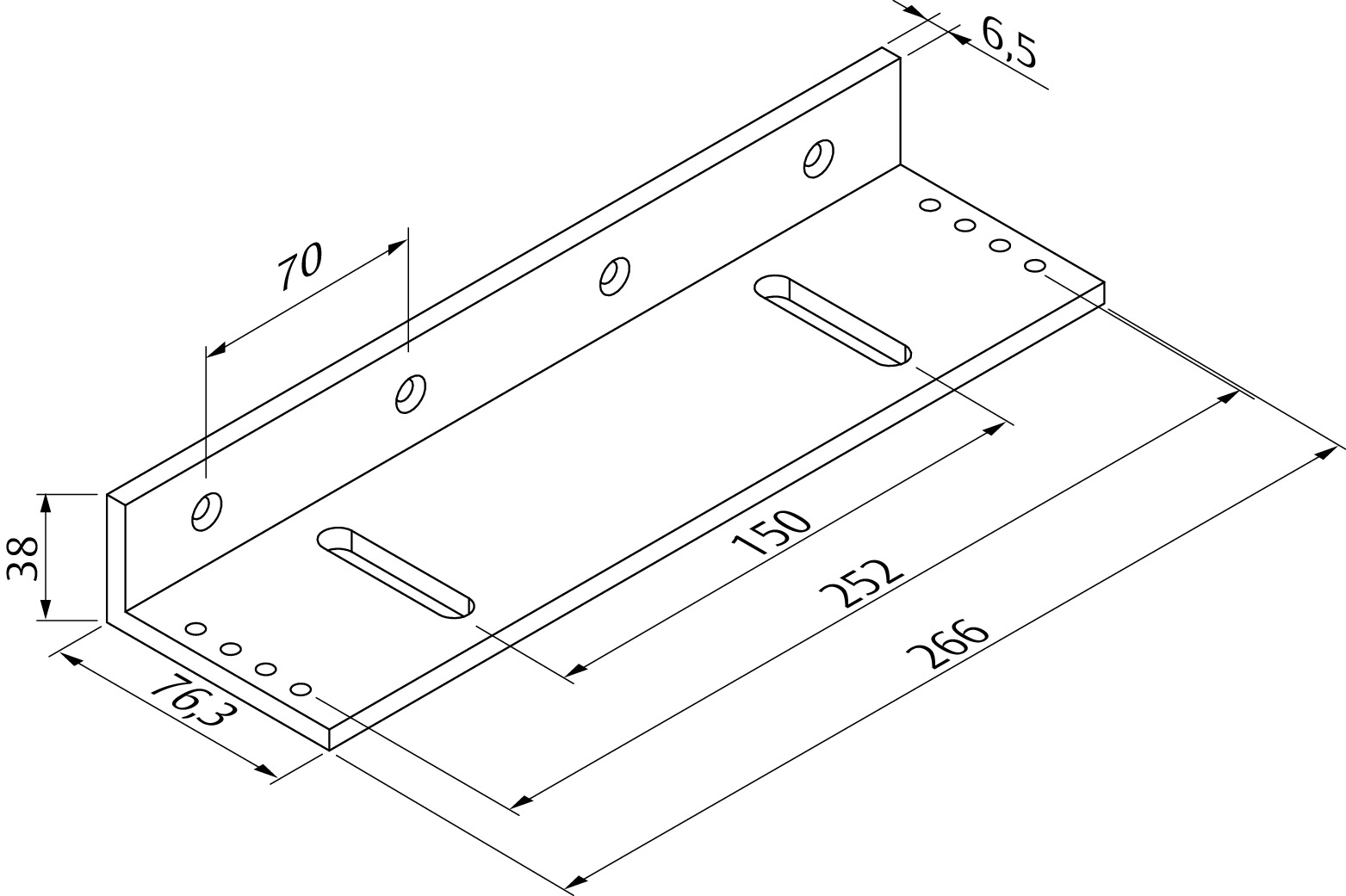

Technical drawing (JPG, 148 KB)
Technical drawing (EPS, 1.15 MB)
