Z-mounting bracket

Universal mounting bracket, Z-shaped

  • ArtNo: MAGAC-Z-1200---
  • EAN: 4042203789715

Product description

For fixing counter-holding plates.

Scope of delivery

  • 1 piece counter plate bracket (Z-bracket)
Technical data
MaterialAluminium
Length185 mm
Width50 mm
Depth50 mm
Downloads for Product

General

Product sheet Z-mounting bracket (PDF)
Operating instructions (PDF, 348 KB)

Medias

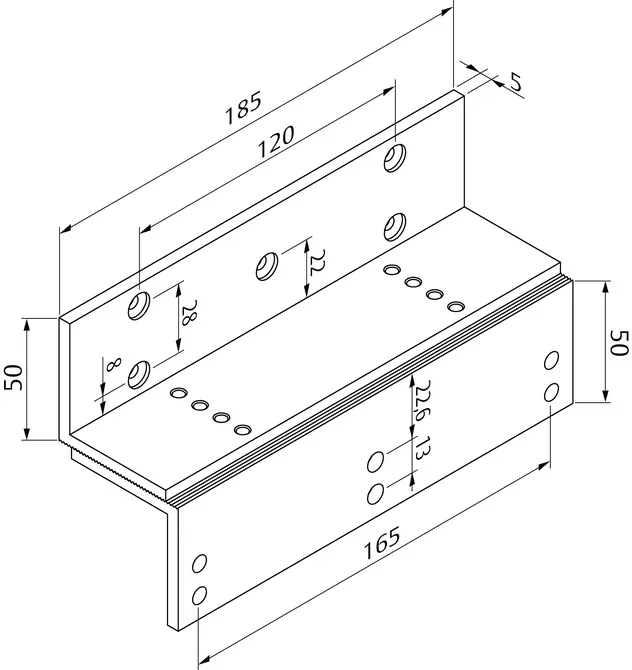

Technical drawing (JPG, 167 KB)
Technical drawing (EPS, 1.20 MB)
