Z-mounting bracket kit
For double mini-magnets, Z-shaped
Product description
For mounting on flush-surface door elements.
Scope of delivery

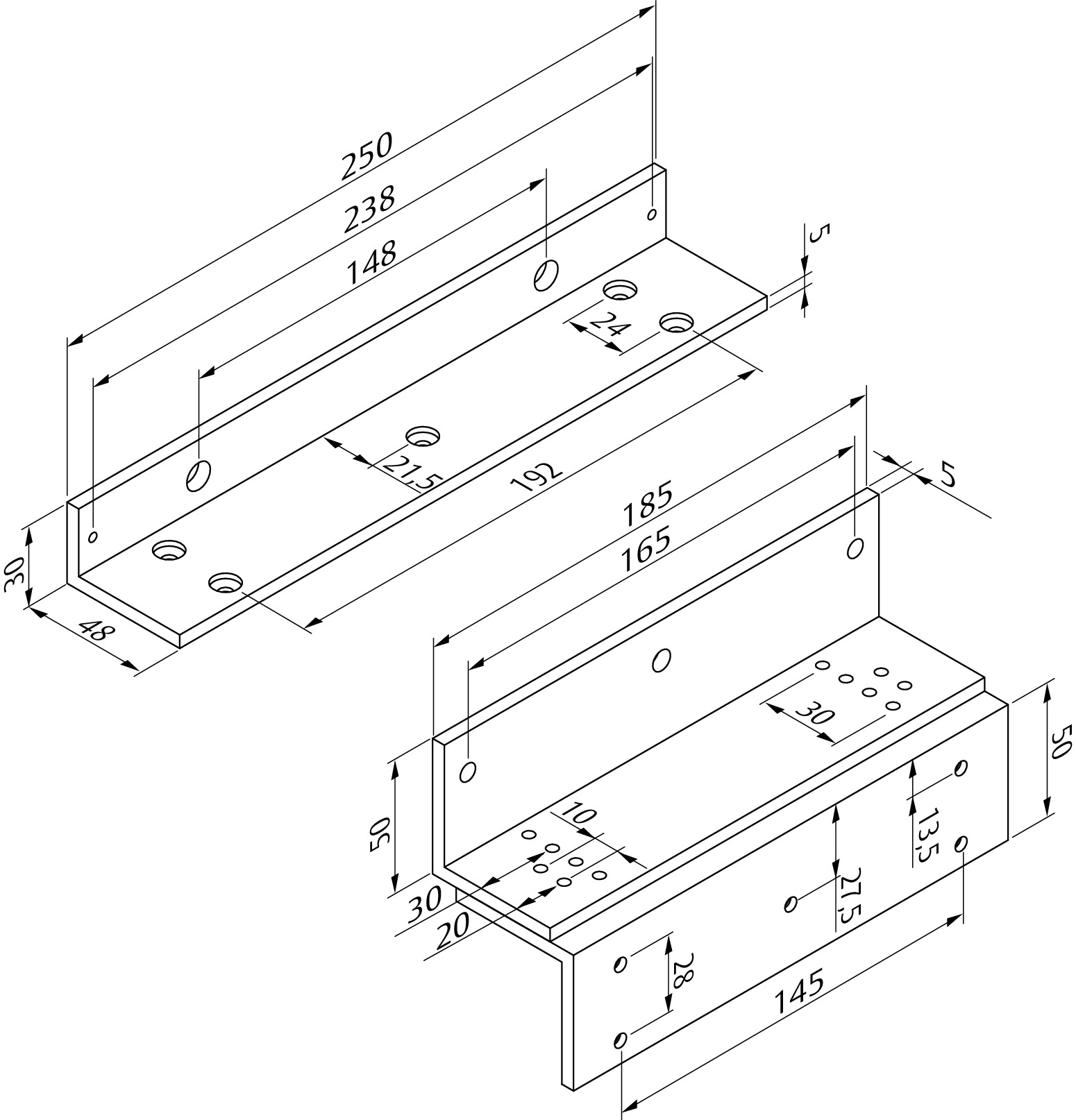

- 2 pieces magnet fixture and 2 pieces counter plate bracket (Z-bracket)
| Material | Aluminium |
| Length | Magnet fixture: 250 mm |
| Length | Counter plate bracket (Z-bracket): 185 mm |
| Width | Magnethalterung: 48 mm |
| Width | Gegenplattenhalterung (Z-Winkel): 50 mm |
| Depth | Magnet fixture: 30 mm |
| Depth | Counter plate bracket (Z-bracket): 50 mm |
