Mounting plate

for mini-magnets

  • ArtNo: MAGAC-P-600----
  • EAN: 4042203791886

Scope of delivery

  • 1 mounting plate
Technical data
Length200 mm
Width55 mm
Depth15 mm
MaterialAluminium
Downloads for Product

General

Product sheet Mounting plate (PDF)
Mounting instruction for mounting bracket MAGAC-L-AL (PDF, 172 KB)

Medias

Product image (JPG, 94 KB)
Product image (EPS, 394 KB)

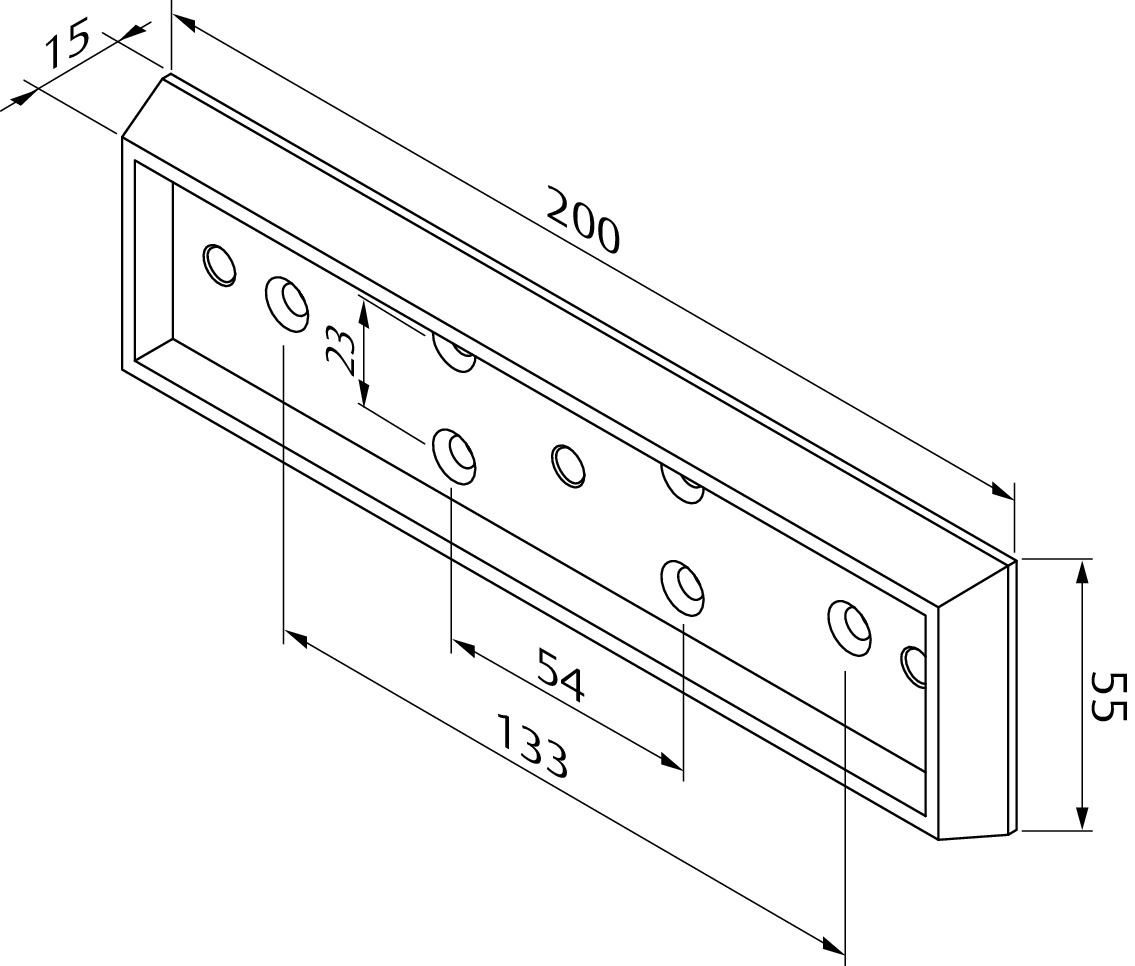

Technical drawing (JPG, 124 KB)
Technical drawing (EPS, 1.09 MB)
