Holding magnet 830xxIGW/U
Product description

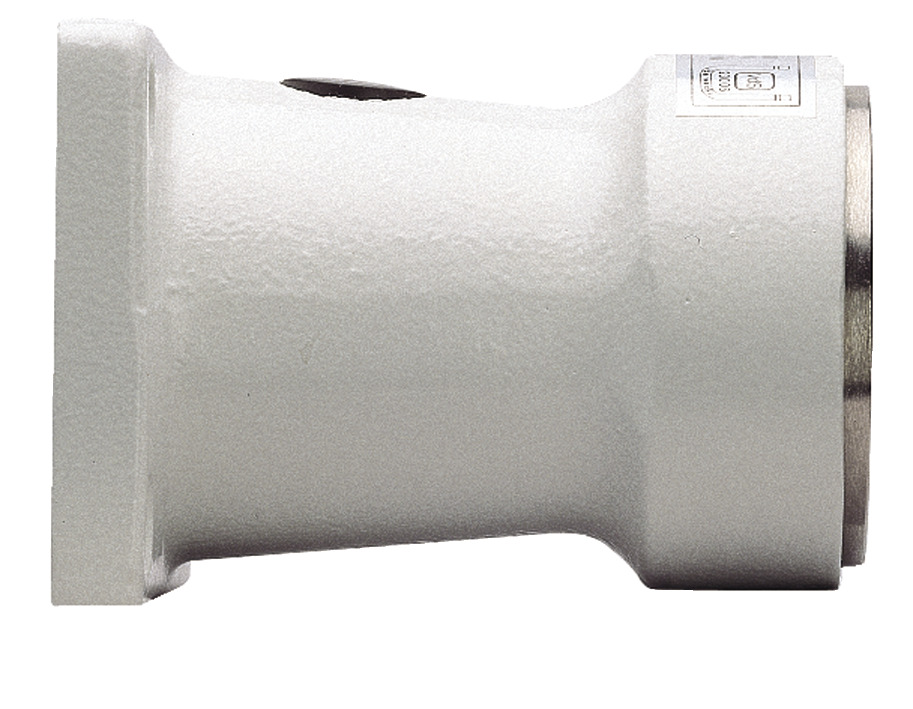

Holding magnet in aluminium housing for wall mount, with optional interrupter pushbutton
| Supply voltage | 24 V DC |
| Current consumption at 24 V | Model 830-3: 300 N / 20 mA; Model 830-5: 500 N / 25 mA; Model 830-8: 800 N / 45 mA; Model 83012: 1200 N / 105 mA |
| Operating temperature range | 0 to +50 °C |
| Certified in compliance with | EN 1155 |

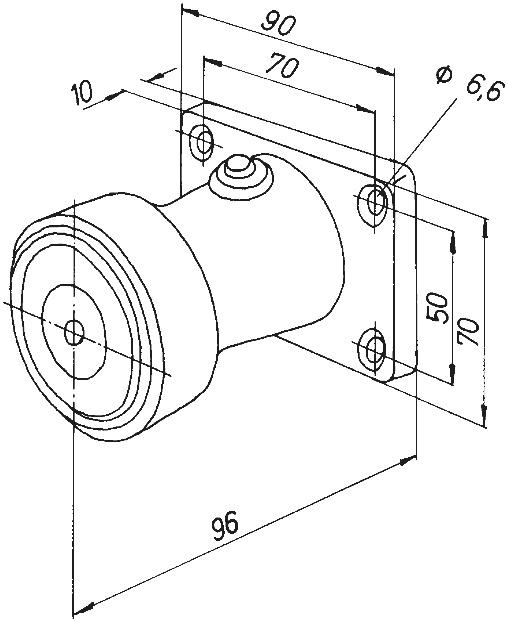

| Height | 70 mm |
| Width | 90 mm |
| Depth | 96 mm |
| Continous duty | 100 % ED |
| Class of protection | IP 40 |
| Order number | Description |
|---|---|
| 830-3IGW----F90 | In aluminium housing for wall mount, holding force: 300 N; 96 mm wall clearance |
| 830-5IGW----F90 | In aluminium housing for wall mount, holding force: 500 N; 96 mm wall clearance |
| 830-8IGW----F90 | In aluminium housing for wall mount, holding force: 800 N; 96 mm wall clearance |
| 83012IGW----F90 | In aluminium housing for wall mount, holding force: 1200 N; 96 mm wall clearance |
| 830-3IGWU---F90 | In aluminium housing for wall mount with interrupter push-button, holding force: 300 N; 96 mm wall clearance |
| 830-5IGWU---F90 | In aluminium housing for wall mount with interrupter push-button, holding force: 500 N; 96 mm wall clearance |
| 830-8IGWU---F90 | In aluminium housing for wall mount with interrupter push-button, holding force: 800 N; 96 mm wall clearance |
| 83012IGWU---F90 | In aluminium housing for wall mount with interrupter push-button, holding force: 1200 N; 96 mm wall clearance |
