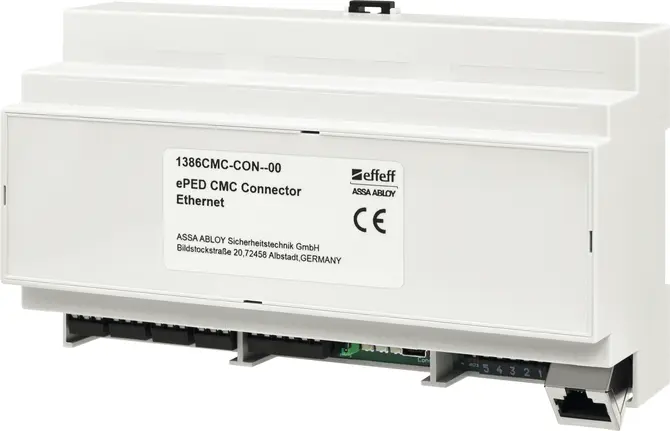

ePED® CMC connector Ethernet
Product description
The ePED® CMC Connector connects the ePED® escape door system with the central control unit.
System plug for the parametrization with ePED® Service Interface und Software for MS Windows.
The ePED® CMC Connector is connected to the ePED Central Control Unit through the ethernet. The doors are equipped with ePED® Escape Door System. The ethernet connection of the escape door door is provided by the ePED® CMC Connector 1386CMC-CON, with the following limits: One Central Control Unit 1386CMC can control maximum 128 escape doors through 128 CMC-Connectors 1386CMC-CON. One escape door can be controlled by maximum 32 Central Control Units 1386CMC through one CMC Connector 1386CMC-CON.
Rated current consumption | 24 V DC 200 mA |
Control function | Yes, Hi-O technology |
Operating and display function | No |
Connection | Ethernet |
Initial configuration | With ePED® service interface and software for MS Windows |
Operating temperature range | -10 °C – +55 °C |
Area of application | For indoor use |
Installation | Mounting rail |
Dimension | 90 x 160 x 60 mm |
Certified in compliance with | EltVTR; DIN EN 13637:2015 |
