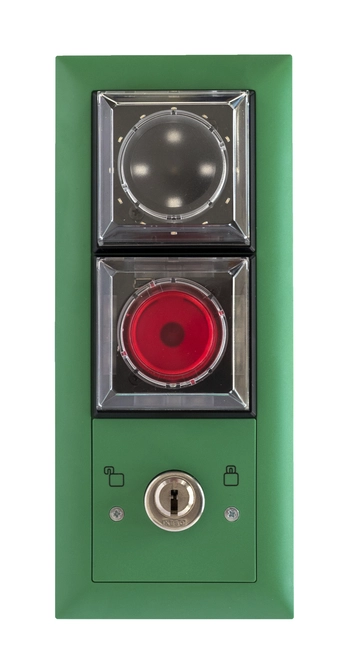

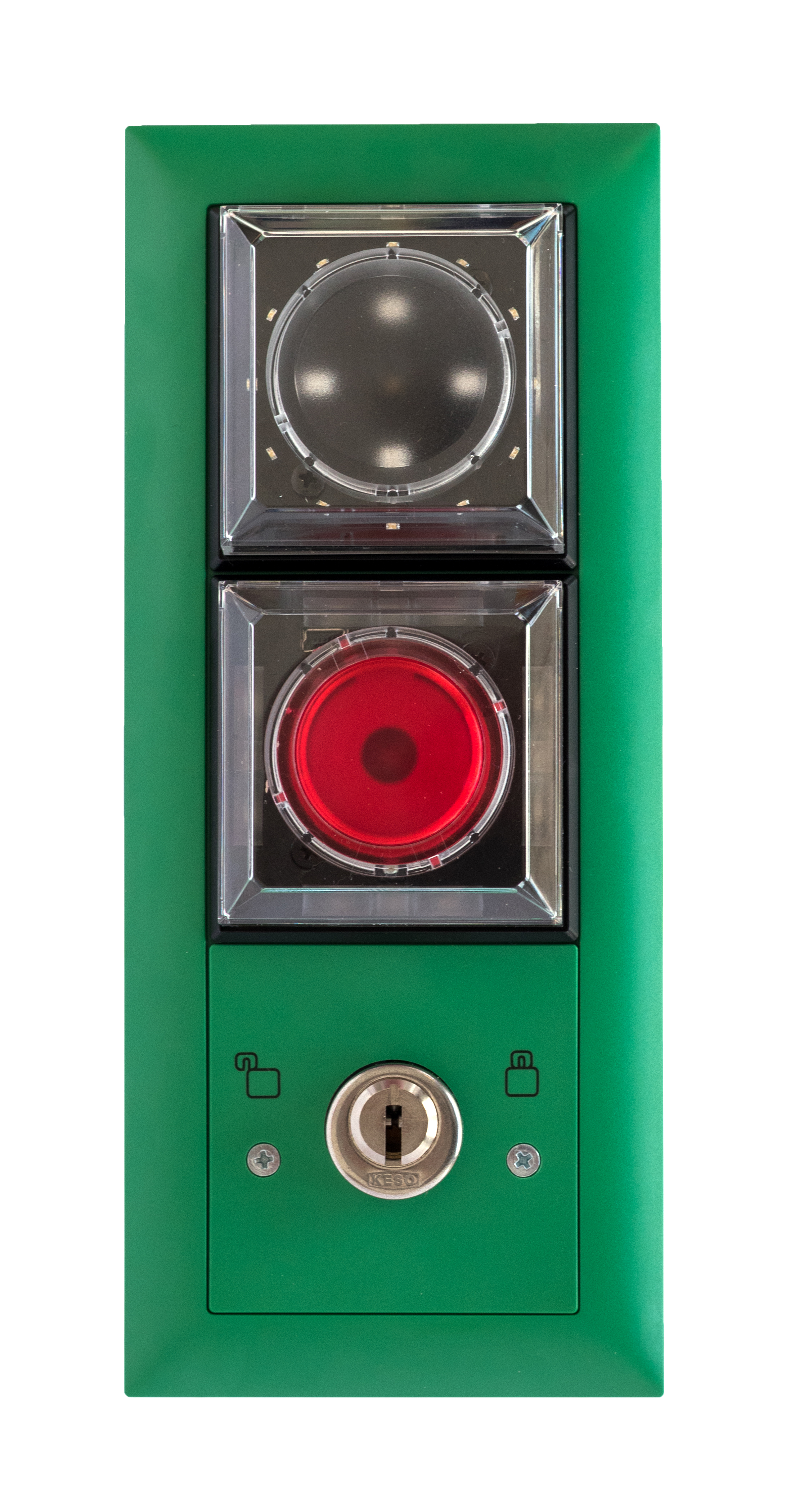

ePED® escape door terminal in switch design, 24 V DC, flush-mounted for time delay 1386Z12B
Product description
For use with time delay, with 4-wire bus cabling in Hi-O technology.
With emergency open module for the control and monitoring of electrical locking elements for escape routes.
The time delay is tested according to the requirements of DIN EN 13637:2015 (electrically controlled exit systems for use on escape routes) as per EN 61508 Safety Integrity Level 2 (SIL2).
Time delay applications are subject to local Building Regulations. Additional permissions may be required.
For mounting in DIN switch boxes for light switch systems with manufacturer-specific covers and frames.
Consists of: Display release delay; emergency open module; key switch module
| Current consumption 24 V DC | 225 mA |
| Inputs | 2 |
| Required power supply | 24 V (±15 %) DC SELV |
| Outputs | 1 x 30 V / 1 A switchover contact |
| Control function | Yes, Hi-O technology |
| Operating and display function | Yes, integrated |
| Connection | 4-wire bus |
| Time delay | Yes |
| Illuminated pictogram | No |
| Display of down counter | Yes |
| Emergency button | Yes, latching |
| Control element | Key switch with CH-RC, adjustable lock ward 8 x 45°; 32.5 mm long |
| Initial configuration | With ePED® service interface and software for MS Windows |
| Operating temperature range | -10 °C – +55 °C |
| Area of application | For indoor use |
| Class of protection | IP30 (wenn vollständig montiert) |
| Installation | in switch boxes |
| Dimension | 3-gang switch combination |
| Sabotage switch | Yes |
| Amount of bus addresses | 3 |
| Key switch on opposite side to direction of escape | Yes (without display) |
| Certified in compliance with | EltVTR; DIN EN 13637:2015 |
| Order number | Description |
|---|---|
| 1386-16-4-03-GN | Feller Edizio Due green |
| 1386-16-4-03-WS | Feller Edizio Due white |
| | Order number | Product |
|---|---|---|
 | 1386D00-HW--F90 | Illuminated information pictogram module for escape routes illuminates |
 | 1386D00-Coun-00 | ePED® release delay display Standard for 55 mm modules |
 | 1386D00------00 | ePED® EMERGENCY OPEN module Standard for 55 mm modules |
 | 1380EF4-1--0400 | Cover frame 4-gang model 1380EF4 4-gang; Jung AS500; alpine white |
| 1380EF4-1--1800 | Cover frame 4-gang model 1380EF4 4-gang; Jung AS500; green |
| 1380EF4-2--3500 | Cover frame 4-gang model 1380EF4 4-gang; Gira E2; alu colour |
 | 1380EF4-3--0400 | Cover frame 4-gang model 1380EF4 4-gang; Gira Standard 55; glossy pure white |
 | 1380EF4-6--0400 | Cover frame 4-gang model 1380EF4 4-gang; Jung LS 990; alpine white |
 | 1380EF4-6353500 | Cover frame 4-gang model 1380EF4 4-gang; Jung LS 990; stainless steel |
