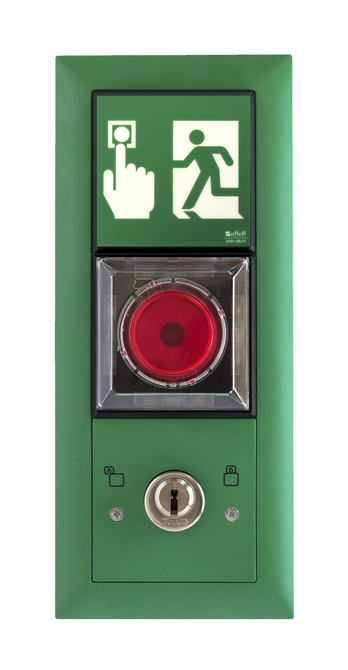

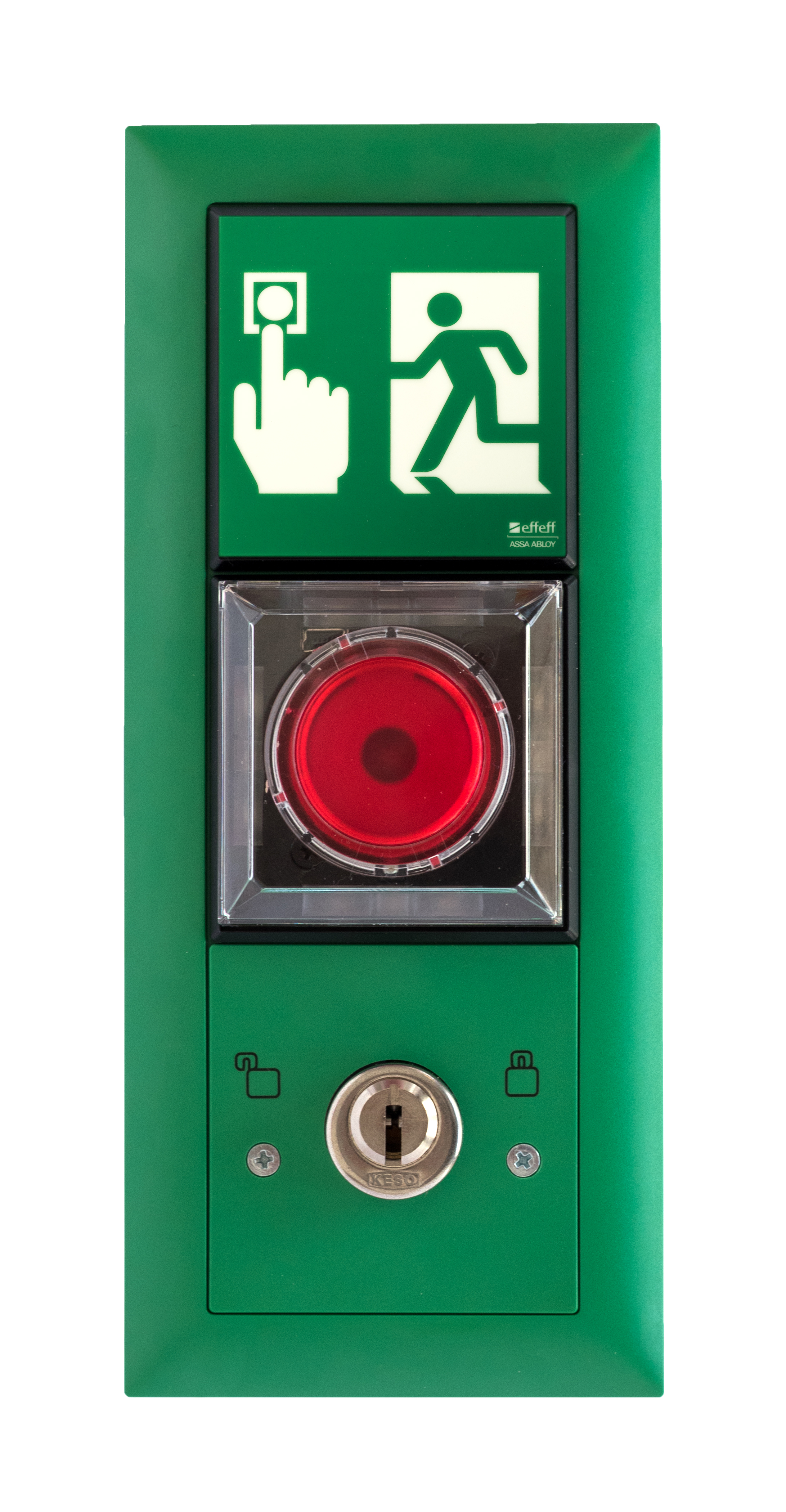

ePED® Escape door terminal

  • ArtNo: 1386-16-4-CHF90

Product description

For use without time delay, with 4-wire bus cabling in Hi-O technology.

With emergency open module for the control and monitoring of electrical locking elements for escape routes.

For mounting in DIN switch boxes for light switch systems with manufacturer-specific covers and frames.

Technical data
Current consumption 24 V DC145 mA
Required power supply24 V (±15 %) DC SELV
Outputs1 x 30 V / 1 A switchover contact
Control functionYes, Hi-O technology
Operating and display functionYes, integrated
Power supplyExternal power supply required
Connection4-wire bus
Control elementKey switch with CH-RC, adjustable lock ward 8 x 45°; 32.5 mm long
Initial configurationWith ePED® service interface and software for MS Windows
Operating temperature range-10 °C – +55 °C
Area of applicationFor indoor use
Class of protectionIP30 (if completely installed)
Installationin switch boxes
Sabotage switchYes
Inputs2
Amount of bus addresses2
Key switch on opposite side to direction of escapeYes (without display)
Certified in compliance withEltVTR; DIN EN 13637:2015
