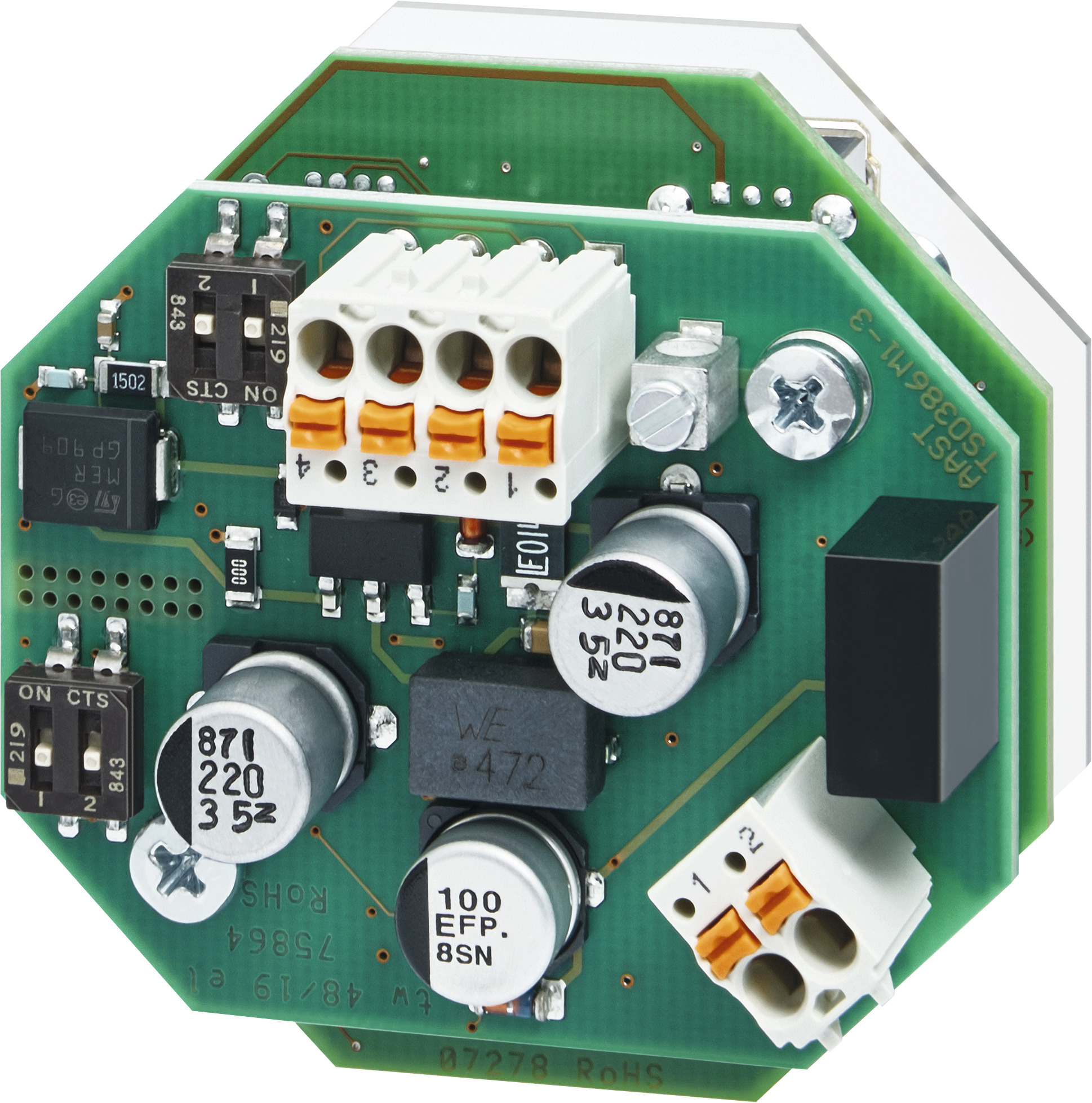

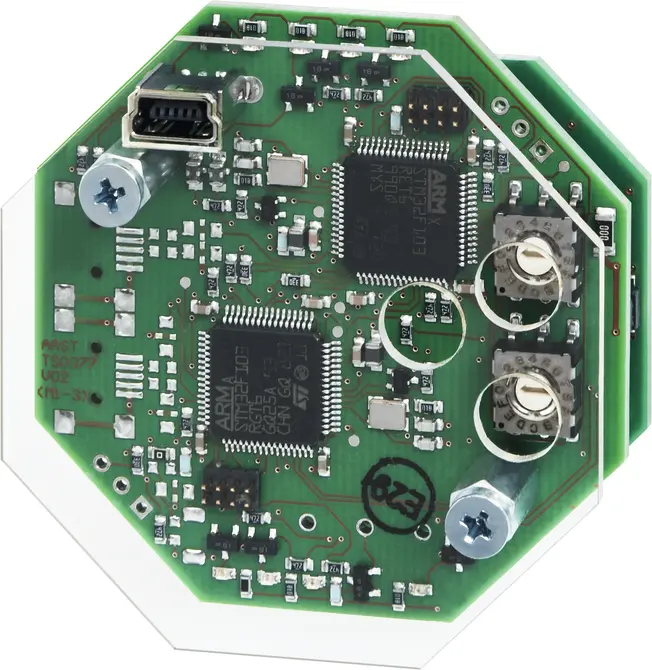

ePED^® TSB-Connector

Communication interface between the Hi-O system bus and the effeff TSB (door control bus).

Note: For reasons of compatibility, the connector is displayed in the FT Manager as model 1338.

Total power consumption	0.2 A at 24 V DC
Area of application	For indoor use
Operating temperature range	-10 °C – +55 °C
Connection	Hi-O: 4 wire bus wiring; TSB (effeff door control bus), address setting 1… 125
Installation	To install flush mounted switch box, 62 mm deep
Required power supply	24 V (±15 %) DC SELV
Class of protection	IP30 (wenn vollständig montiert)
Amount of bus addresses	2
