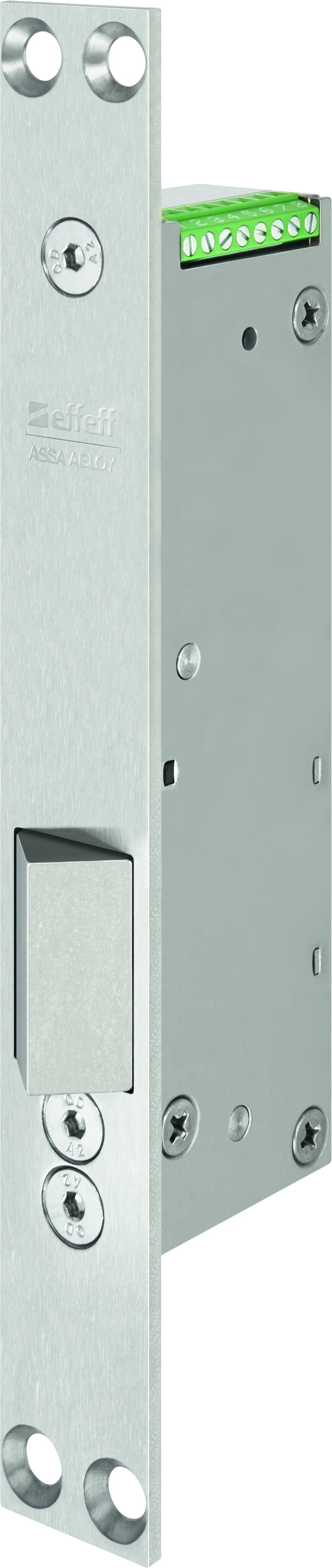

Escape door lock 352M
Version with square-cut strike plate without counterpart
Product description
Version with strike plate, without counterpart and without spacer plates
Installation compatible with model 331U…with strike plate No. 116 Suitable for combination with counterparts SET352AT-37H-00 or SET352AT-38H-00 as well as with counterparts SET352R-25---00 or SET352E-25---00.
Overview of Advantages
- Very quiet locking and unlocking, silent during permanent release
- The 352M escape door lock is especially designed as an additional locking system to secure doors along escape routes
- Suitable as an additional locking element for instalation in fire doors
- Example for further usage options: double action swing door, revolving doors, interlocking doors, special doors
- Universal installation position, vertical and horizontal in the door frame or door leaf
- Holding force of 5000 N
- Safe unlocking under pre-load of up to 5000 N
- 12V DC to 24V DC multi-voltage, controlled DC voltage
- Monitoring contact and armature contact integrated
- Compatible for installation with models 351U and 351M
Scope of delivery
- Supply includes square-cut strike plate
| DIN-direction | universal |
| Monitoring contact (RR) | Yes |
| Diode (05) | Yes |
| Fail-unlocked | Yes |
| Adjustable keeper (FF, FaFix®) | Yes |
| Armature monitoring contact | Yes |
| Input operating voltage | ± 15% |
| Max. current consumption with motor operation (approx. 2 s) 12 V DC | 600 mA |
| Max. current consumption with motor operation (approx. 2 s) 24 V DC | 290 mA |
| Current consumption in continuous operation (locked) 12 V DC | 360 mA |
| Current consumption in continuous operation (locked) 24 V DC | 190 mA |
| Installation position | Vertical and horizontal |
| Operating temperature range | -15 °C to +50 °C |
| Break-in resistance | 5000 N |
| Length | 200 mm |
| Max. pre-load | 5000 N |
| Depth | 42 mm |
| material bolt | Steel |
| Width | 24 mm |
| Approvals | EltVTR / EN 13637 |
| | Order number | Product |
|---|---|---|
 | SET352E-25---00 | Counterpart (VarioFix) with spacer plates Square-cut counterpart with VarioFix adjustment |
 | 352E-3-------00 | Spacer plate 3mm thickness, suitable for counterpart (VarioFix) |
 | SET352R-25---00 | Counterpart with spacer plates Round counterpart |
 | SET352AT-37H-00 | Counterpart with spacer plates Square-cut counterpart |
 | SET352AT-38H-00 | Counterpart (VarioFix) with spacer plates Square-cut counterpart with VarioFix adjustment |
| 352AT-3------00 | Spacer plate 3mm thick, suitable for counterpart SET352AT-37H-00 and SET352AT-38H-00 |
