Mounting set model 10313
Timber; for short cable transitions, width 25 mm
Product description
This saves time when installing the concealed lead covers (one-sided and on both sides) in wood structures. It consists of two radius end pieces and 5 stainless steel screws to fasten the installation housing and the plate on the opposite side. When using the 10313 installation set, only a cut-out is required, with no finishing work. There is no longer the need to chisel out to fit the installation housing and the square fastening plate.
Overview of Advantages
- Time-saving installation
Scope of delivery
- 1 mounting kit
Note
- For short version: Width 25 mm

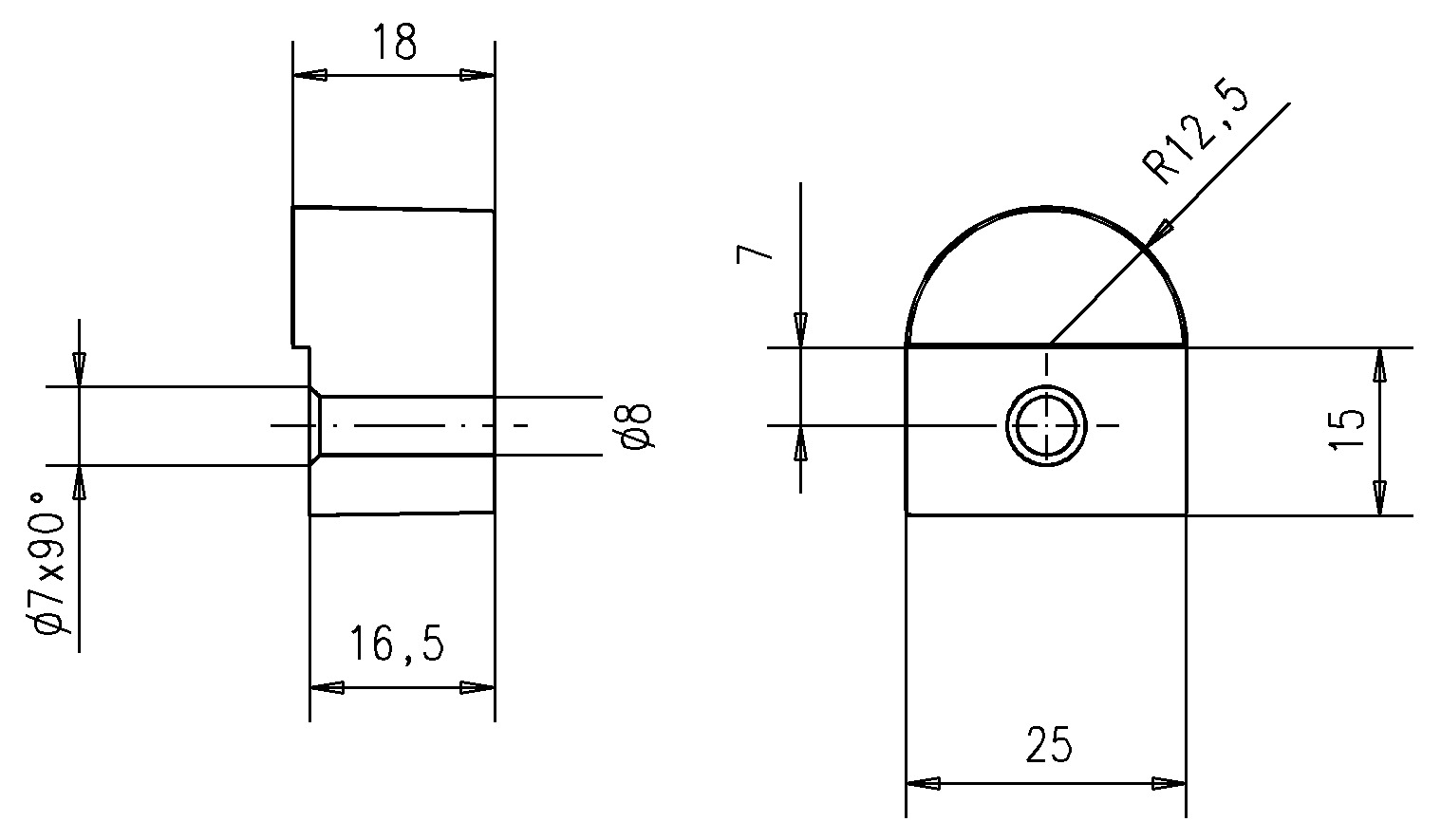

| Length | 27,5 mm |
| Depth | 18 mm |
| Width | 25 mm |
| Version | For short cable transitions |
