Mounting case for drop bolt

With profile cylinder bore

  • ArtNo: 843ZY-4-1----35
  • EAN: 4042203287501

Product description

Mounting case for electric drop bolt with profile cylinder hole (model 843ZY)

Scope of delivery

  • 1 mounting case

Note

  • Supplied without bolt
Technical data
Housing length295 mm
Housing width27 mm
Housing depth47 mm
Material housingStainless steel
Downloads for Product

General

Product sheet Mounting case for drop bolt (PDF)

Medias

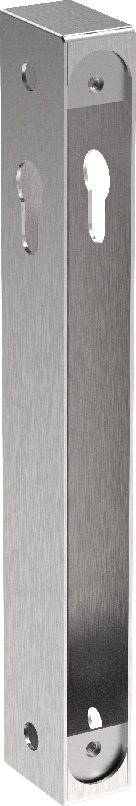

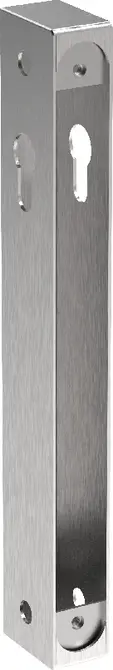

Product image (JPG, 47 KB)
Product image (EPS, 9.57 MB)

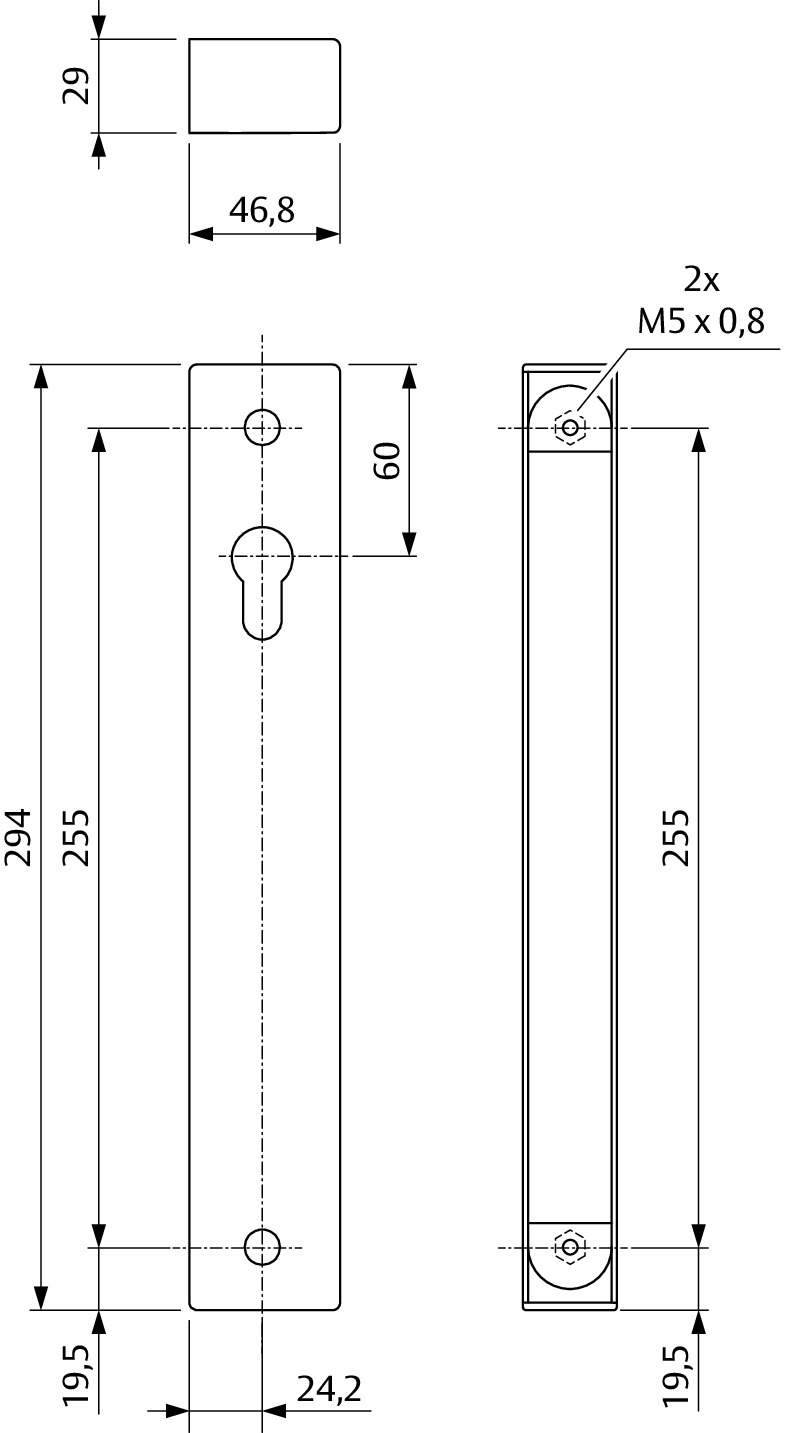

Technical drawing (JPG, 111 KB)
Technical drawing (EPS, 684 KB)
