Fire protection fittings

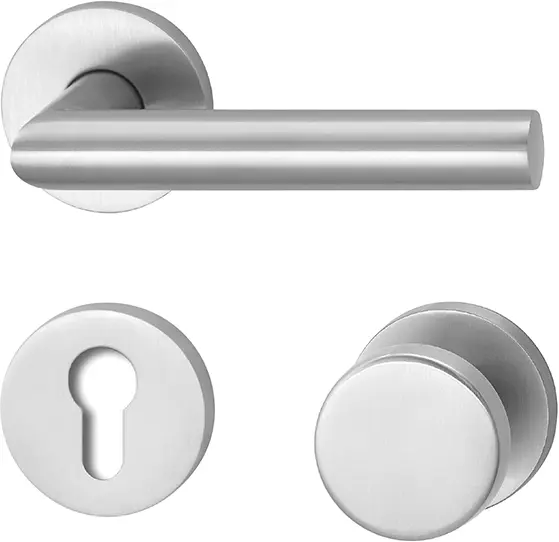

L-shaped handle with flat knob
Product description
The fire protection fitting for wide style doors meets requirements for fire and smoke protection hardware in accordance with DIN 18273. The high-quality L-shaped handle on rose blends elegantly into any building. Durable brushed stainless steel as a modern and corrosion-resistant material is perfect for any environment where quality matters. This model is supplied with a flat knob.
Overview of Advantages
- Prepared for your door thickness
- Elegant bevel handle
- Meets requirements for fire and smoke protection hardware in accordance with DIN 18273
Note
- Compatible with locks of series N1050
| Exterior escutcheon | Flat knob |
| Protection rating | 0 |
| Handle | L-shaped |
| Type of cylinder | Profile cylinder |
| spindle | 9 mm |
| Material | Standard, brushed stainless steel |
| Mounting | Rose |
| Order number | Door leaf thickness | DIN-direction |
|---|---|---|
| H501021X0911000 | 37 - 50 mm | DIN left |
| H501021X0912000 | 51 - 60 mm | DIN left |
| H501021X0913000 | 61 - 70 mm | DIN left |
| H501021X0914000 | 71 - 80 mm | DIN left |
| H501021X0915000 | 81 - 90 mm | DIN left |
| H501021X0916000 | 91 - 100 mm | DIN left |
| H501021X0921000 | 37 - 50 mm | DIN right |
| H501021X0922000 | 51 - 60 mm | DIN right |
| H501021X0923000 | 61 - 70 mm | DIN right |
| H501021X0924000 | 71 - 80 mm | DIN right |
| H501021X0925000 | 81 - 90 mm | DIN right |
| H501021X0926000 | 91 - 100 mm | DIN right |
