Panic door fittings

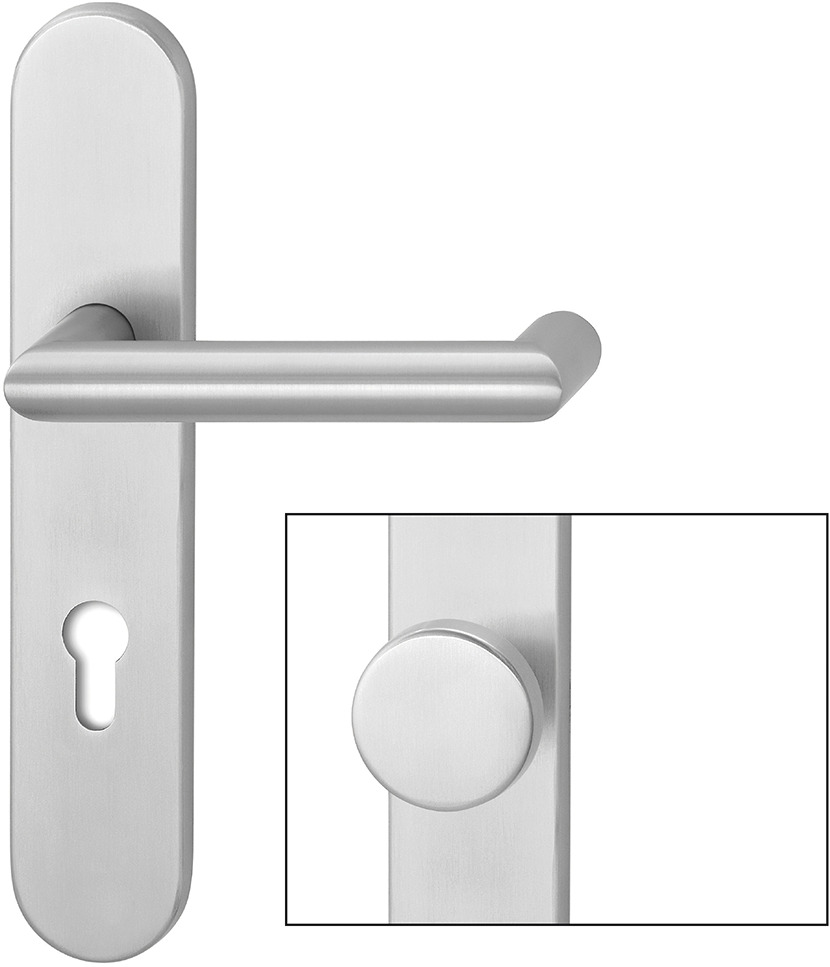

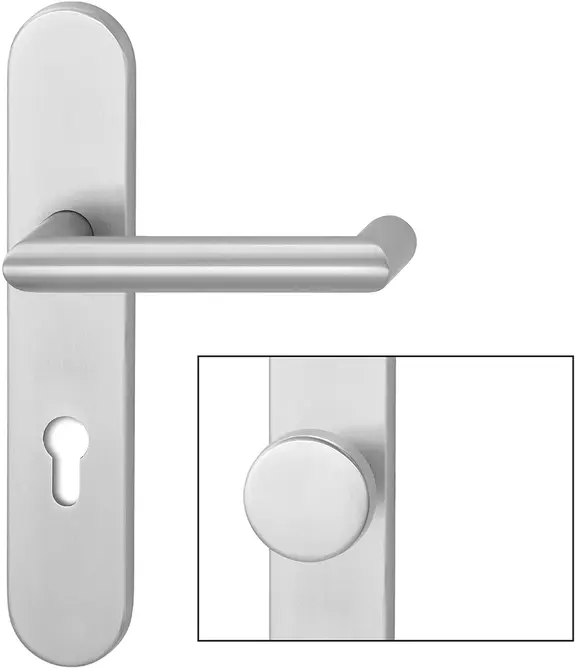

C-shaped handle with flat knob
Product description
The panic fitting for wide style doors is suitable for use on doors with escape door function in accordance with EN 179. The high-quality C-shaped handle on long plate blends elegantly into any building. Durable brushed stainless steel as a modern and corrosion-resistant material is perfect for any environment where quality matters. This model is supplied with a round knob.
Overview of Advantages
- Prepared for your door thickness
- Elegant bevel handle
- Suitable for use on escape doors in accordance with EN 179
Note
- Compatible with locks of series N11**
| Exterior escutcheon | Flat knob |
| Protection rating | 0 |
| Handle | C-shaped |
| Type of cylinder | Profile cylinder |
| spindle | 9 mm |
| Material | Standard, brushed stainless steel |
| Mounting | Long plate |
| Order number | Door leaf thickness | Distance | DIN-direction |
|---|---|---|---|
| H13402150931000 | 36 - 49 mm | 92 mm | DIN left/right, without spring assist |
| H13402150932000 | 50 - 59 mm | 92 mm | DIN left/right, without spring assist |
| H13402150933000 | 60 - 69 mm | 92 mm | DIN left/right, without spring assist |
| H13402150934000 | 70 - 79 mm | 92 mm | DIN left/right, without spring assist |
| H13402150935000 | 80 - 89 mm | 92 mm | DIN left/right, without spring assist |
| H13402150936000 | 90 - 99 mm | 92 mm | DIN left/right, without spring assist |
