Fire protection fitting with panic handle

U-shaped handle blank

Product description

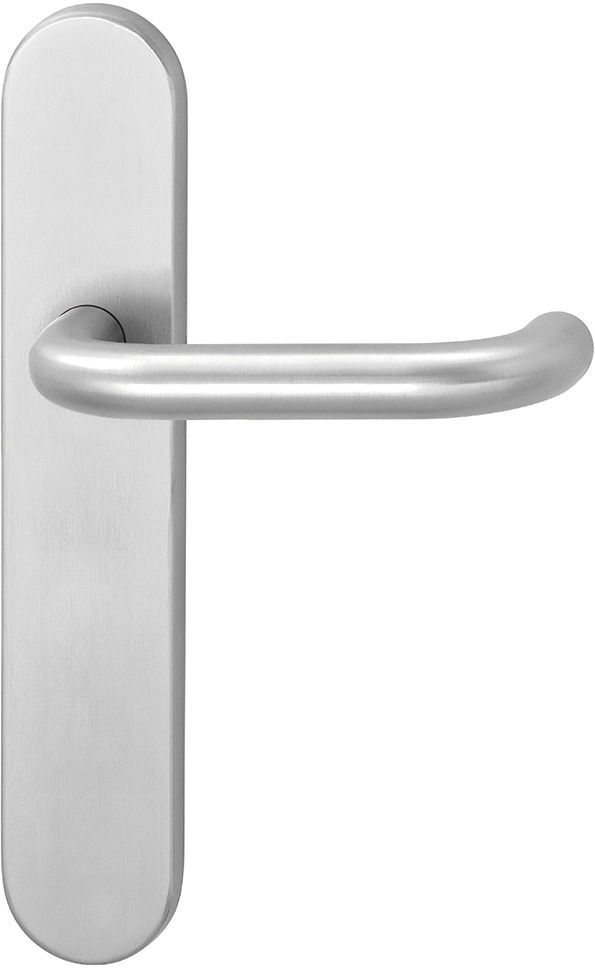

The fire protection fitting with panic handle for wide style doors meets requirements for fire and smoke protection hardware in accordance with DIN 18273 and with escape door function in accordance with EN 180. The high-quality U-shaped handle as an passive leaf set blends elegantly into any building. Durable brushed stainless steel as a modern and corrosion-resistant material is perfect for any environment where quality matters. This model is delivered blank.

Overview of Advantages

  • Freely configurable to your door thickness
  • Classic curved handle
  • Meets requirements for fire and smoke protection hardware in accordance with DIN 18273
  • Suitable for use on escape doors in accordance with EN 179

Note

  • Accessories must be selected separately
Technical data
Exterior escutcheonblank
Protection rating0
Versionwithout drilled hole
HandleU-shaped
spindle9 mm
MaterialStandard, brushed stainless steel
MountingPassive leaf set
Variants that can be ordered
Order number
DIN-direction
H77303XZ0940000DIN left, without spring assist
H77303XZ0950000DIN right, without spring assist
