Protection fittings

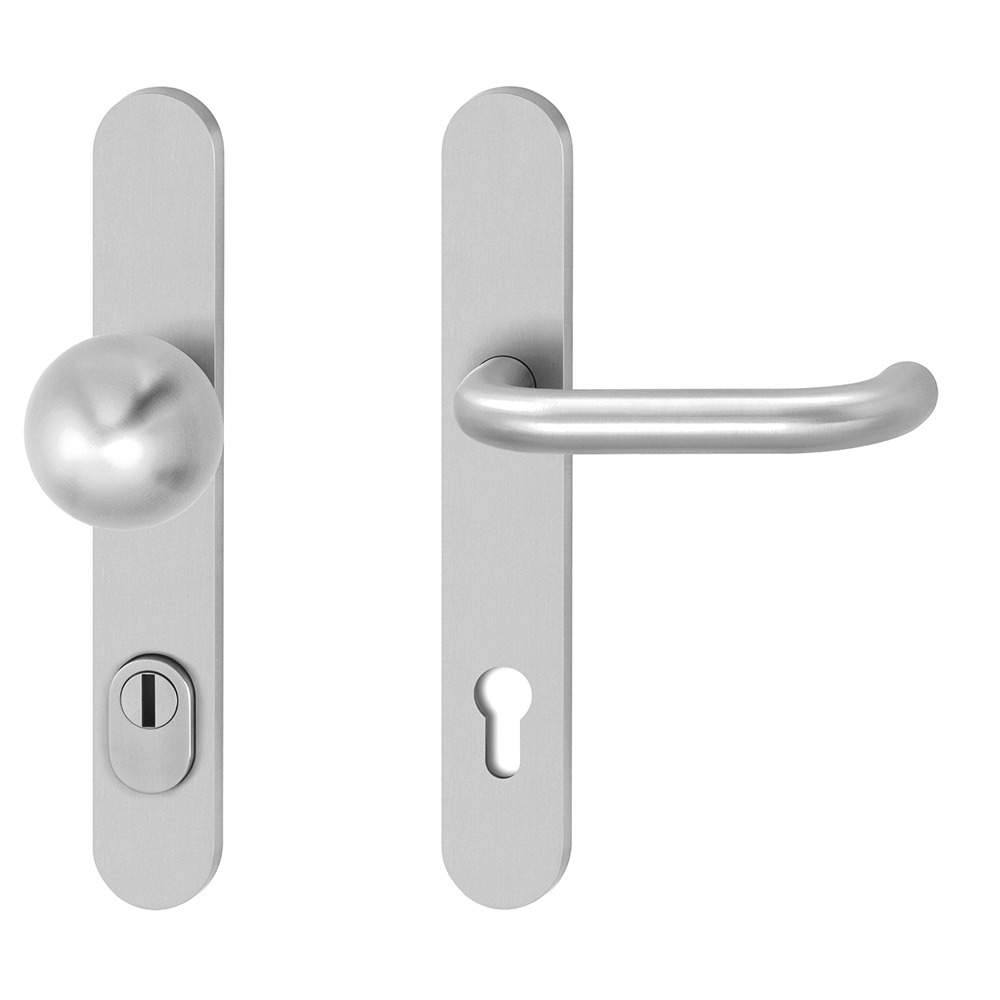

U-shaped handle with round knob SK3

ArtNo: H83301253900000
EAN: 4042203797321

Product description

The security fitting for narrow style doors meets requirements for fire and smoke protection hardware in accordance with DIN 18273 and with escape door function in accordance with EN 179, as well as requirements for burglary protection. The high-quality KC-shaped handle on long plate blends elegantly into any building. Durable brushed stainless steel as a modern and corrosion-resistant material is perfect for any environment where quality matters. This model is supplied with a round knob.

Overview of Advantages

Freely configurable to your door thickness
Classic curved handle
Meets requirements for fire and smoke protection hardware in accordance with DIN 18273
Suitable for use on escape doors in accordance with EN 179
Security fitting with burglary-resistant effect in accordance with DIN 1906
Protection rating SK 3 according to DIN 1906

Note

Compatible with locks of series N16**, 319N, 819N und 519N

Technical data

Distance	92 mm
Type of cylinder	Profile cylinder
Exterior escutcheon	Round knob
Protection rating	3
Handle	U-shaped
spindle	9 mm
Material	Standard, brushed stainless steel
Mounting	Long plate
Version	with protective cover

Accessories/Individual parts

	Order number	Product
	HA32S0000206000	Mounting set narrow style long plate 9 mm half spindle protection rating 2 for door leaf thickness 32-36 mm Protection rating 2 with 9 mm half spindle for door leaf thickness 32-36 mm
	HA32S0000207000	Mounting set narrow style long plate 9 mm half spindle protection rating 2 for door leaf thickness 37-41 mm Protection rating 2 with 9 mm half spindle for door leaf thickness 37-41 mm
	HA32S0000208000	Mounting set narrow style long plate 9 mm half spindle protection rating 2 for door leaf thickness 42-46 mm Protection rating 2 with 9 mm half spindle for door leaf thickness 42-46 mm
	HA32S0000209000	Mounting set narrow style long plate 9 mm half spindle protection rating 2 for door leaf thickness 47-51 mm Protection rating 2 with 9 mm half spindle for door leaf thickness 47-51 mm
	HA32S0000210000	Mounting set narrow style long plate 9 mm half spindle protection rating 2 for door leaf thickness 52-56 mm Protection rating 2 with 9 mm half spindle for door leaf thickness 52-56 mm
	HA32S0000211000	Mounting set narrow style long plate 9 mm half spindle protection rating 2 for door leaf thickness 57-61 mm Protection rating 2 with 9 mm half spindle for door leaf thickness 57-61 mm
	HA32S0000212000	Mounting set narrow style long plate 9 mm half spindle protection rating 2 for door leaf thickness 62-66 mm Protection rating 2 with 9 mm half spindle for door leaf thickness 62-66 mm
	HA32S0000213000	Mounting set narrow style long plate 9 mm half spindle protection rating 2 for door leaf thickness 67-71 mm Protection rating 2 with 9 mm half spindle for door leaf thickness 67-71 mm
	HA32S0000214000	Mounting set narrow style long plate 9 mm half spindle protection rating 2 for door leaf thickness 72-76 mm Protection rating 2 with 9 mm half spindle for door leaf thickness 72-76 mm
	HA32S0000215000	Mounting set narrow style long plate 9 mm half spindle protection rating 2 for door leaf thickness 77-81 mm Protection rating 2 with 9 mm half spindle for door leaf thickness 77-81 mm
	HA32S0000226000	Mounting set narrow style long plate 9 mm half spindle protection rating 3 for door leaf thickness 32-36 mm Protection rating 3 with 9 mm half spindle for door leaf thickness 32-36 mm
	HA32S0000227000	Mounting set narrow style long plate 9 mm half spindle protection rating 3 for door leaf thickness 37-41 mm Protection rating 3 with 9 mm half spindle for door leaf thickness 37-41 mm
	HA32S0000228000	Mounting set narrow style long plate 9 mm half spindle protection rating 3 for door leaf thickness 42-46 mm Protection rating 3 with 9 mm half spindle for door leaf thickness 42-46 mm
	HA32S0000229000	Mounting set narrow style long plate 9 mm half spindle protection rating 3 for door leaf thickness 47-51 mm Protection rating 3 with 9 mm half spindle for door leaf thickness 47-51 mm
	HA32S0000230000	Mounting set narrow style long plate 9 mm half spindle protection rating 3 for door leaf thickness 52-56 mm Protection rating 3 with 9 mm half spindle for door leaf thickness 52-56 mm
	HA32S0000231000	Mounting set narrow style long plate 9 mm half spindle protection rating 3 for door leaf thickness 57-61 mm Protection rating 3 with 9 mm half spindle for door leaf thickness 57-61 mm
	HA32S0000232000	Mounting set narrow style long plate 9 mm half spindle protection rating 3 for door leaf thickness 62-66 mm Protection rating 3 with 9 mm half spindle for door leaf thickness 62-66 mm
	HA32S0000233000	Mounting set narrow style long plate 9 mm half spindle protection rating 3 for door leaf thickness 67-71 mm Protection rating 3 with 9 mm half spindle for door leaf thickness 67-71 mm
	HA32S0000234000	Mounting set narrow style long plate 9 mm half spindle protection rating 3 for door leaf thickness 72-76 mm Protection rating 3 with 9 mm half spindle for door leaf thickness 72-76 mm
	HA32S0000235000	Mounting set narrow style long plate 9 mm half spindle protection rating 3 for door leaf thickness 77-81 mm Protection rating 3 with 9 mm half spindle for door leaf thickness 77-81 mm
