Distance plate

300 x 24 x 3 mm

  • ArtNo: Z09-DBRR3----00
  • EAN: 4042203345256

Product description

MEDIATOR® requires a spacing of 2 to 5.5 mm between the striking plate and face plate for secure functioning. Larger spacing can be reduced by distance plates on both the strike side (striking plate) and the lock side (face plate).

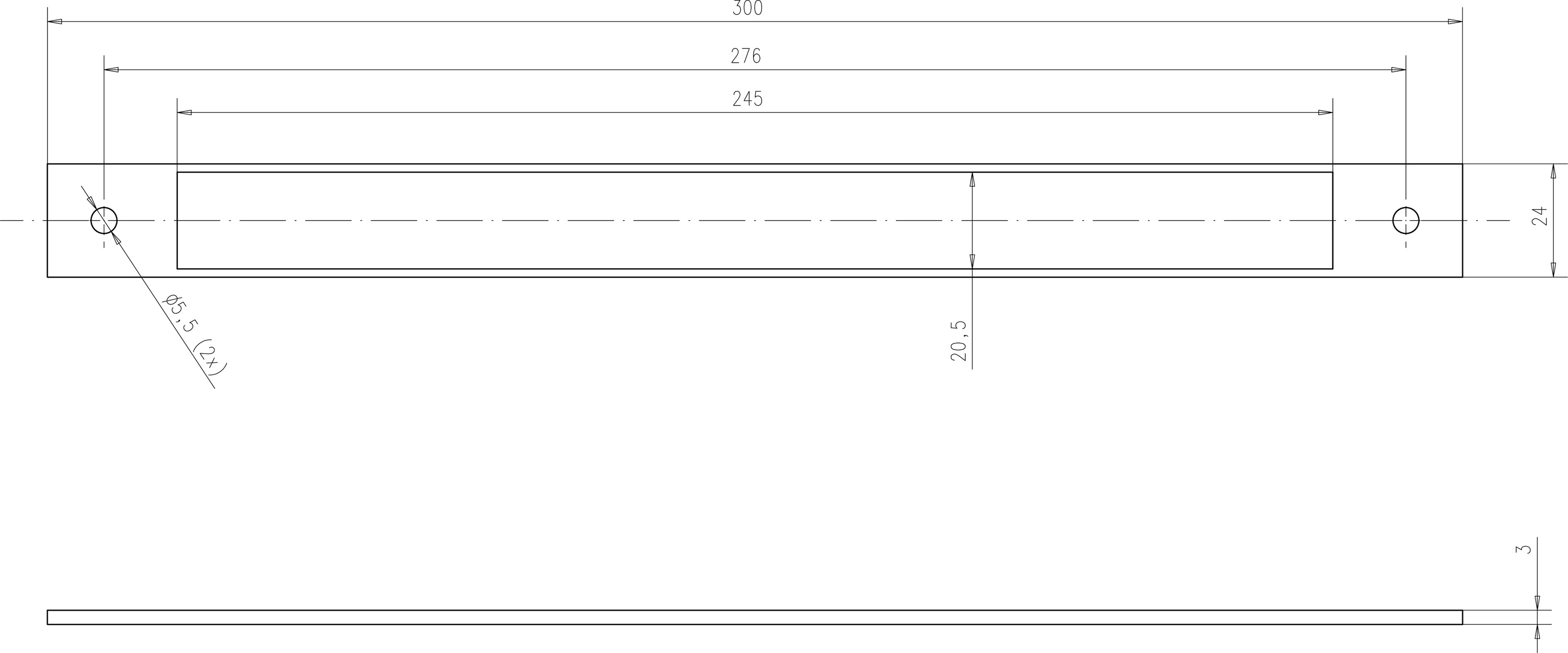

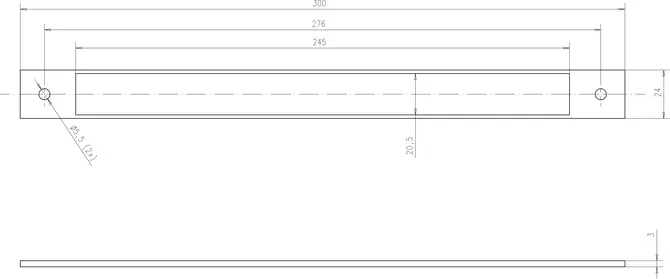

Technical data
Height300 mm
Width24 mm
Thickness3 mm
