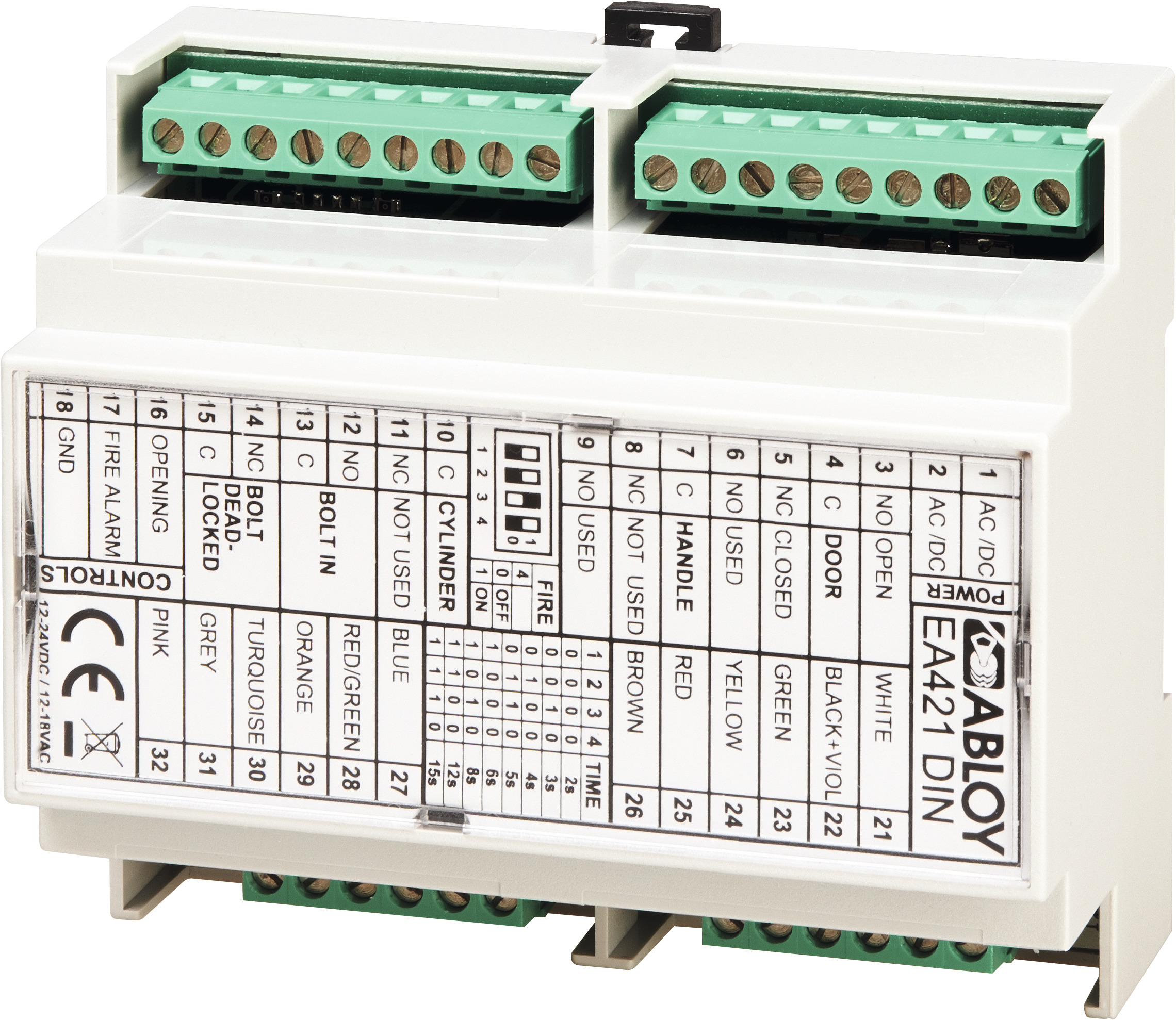

Motorised lock control

For security motorised lock 509X/529X, suitable for top hat rail/distributor installation.

  • ArtNo: 509XSTRG-421DIN
  • EAN: 6416495243169

Product description

For triggering of motor security locks of the range 509X/520X

Overview of Advantages

  • Potential-free relais output for status indication: Dead bolt unlocked, dead bolt locked, door handle activation, profile cylinder activation, door CLOSED
  • Short time release, re-locking time adjustable 2-15 sec.
  • Permanent release function
  • Automatic locking during power failure
  • Input for potential-free contact of a smoke detector system

Scope of delivery

  • 1 control unit

Note

  • A fire detector approved by the building authorities is also required for use in fire rated doors.
Technical data
Switch-on current 1300 mA
Rated voltage12-24 V DC controlled (-10%/+15%), 12-18 V AC Ueff (-10%/+15%)
Stand-by current power input80 mA (12 V) / 40 mA (24 V)
Current consumption motorised operation450 mA
Dimension105 x 90 x 58 mm
Class of protectionIP 20
