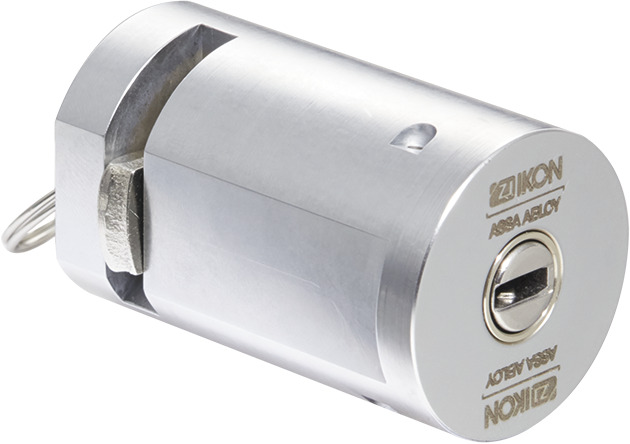

Special cylinder for key-safe tube eCLIQ N549

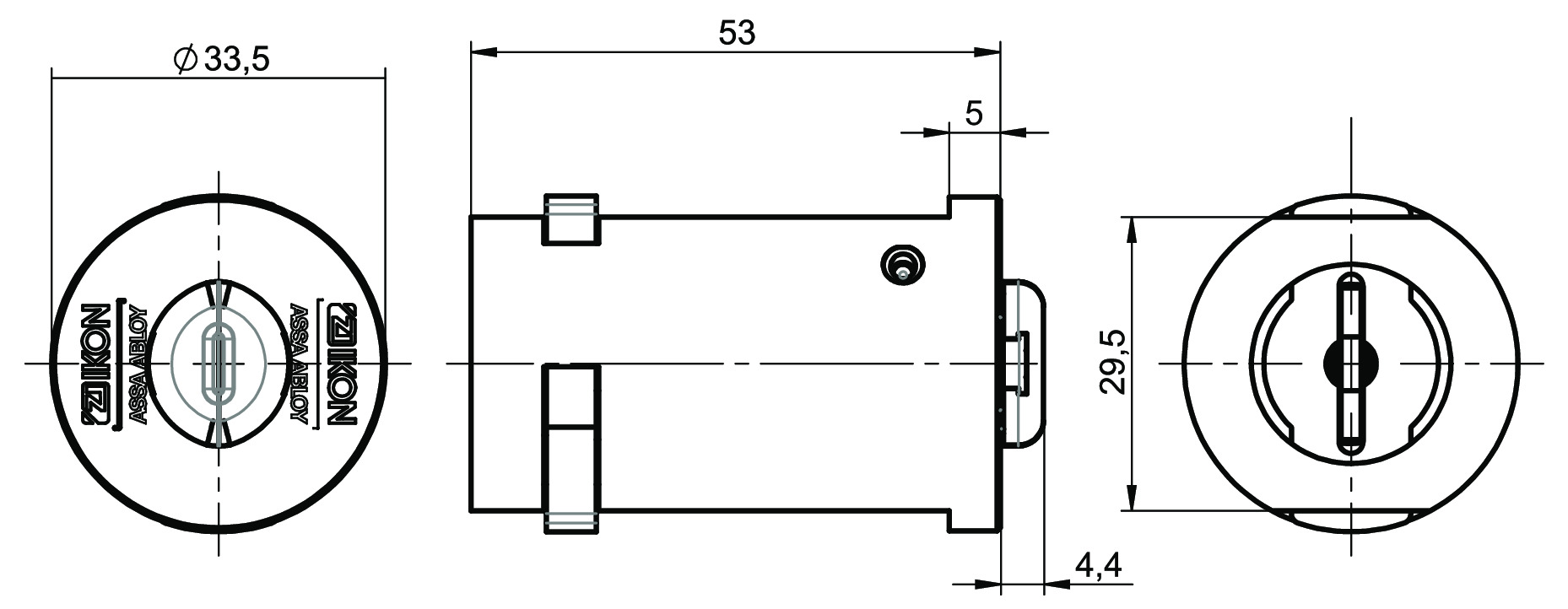

33.5 mm diameter -without key-

Power is supplied exclusively via the key (no battery in the cylinder)
Available as electronical version (V=)
Standard finish, matt chrome-plated (OF=MC)
Cylinder material: hardened and tempered steel
Standard anti drilling protection (AB=2)

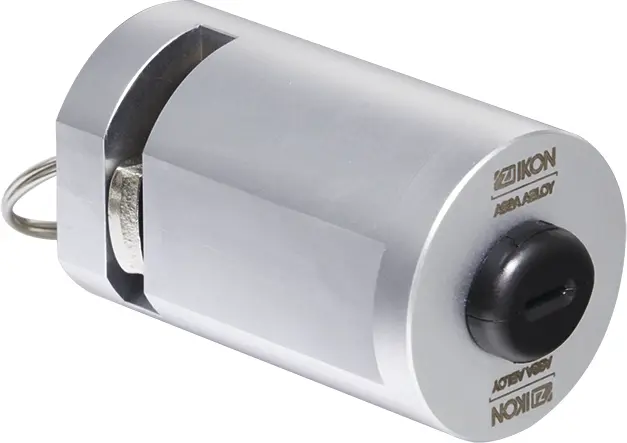

Standard with dust and rain cover (SUR=1)
Optionally without dust and rain cover (SUR=0)
Maintenance-free for up to 200,000 cycles
Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G Ex ib IIC T4 Gb)

Article number	OF=	V=	SUR=
N549	MC	E	1

	Order number	Product
	8074	Security Key Safe Tube

Description	Info
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=)	per cylinder

ATEX=	Description	Info
II 2G Ex ib IIC T4 Gb	Locking cylinders for Zone 1 hazardous areas	per cylinder

AB=	Description	Area of application	Info
2	Security category 2 drilling protection	For profile knob, half and special cylinders	per cylinder

OF=	Area of application	Info
MC	For profile and locking lever cylinders	Matt, chrome plated
PC	For profile and locking lever cylinders	Polished chrome-plated
MP	For profile and locking lever cylinders	Polished brass
MG	For profile and locking lever cylinders	Brass, satin brushed

SUR=	Area of application	Info
1	For special cylinders	per cylinder

V2=	AUS3=	Description	Info
OHNE AUDIT		Cylinder without events list, frontal marking with symbol "§"	per cylinder
	ONLINE	Cylinder with function "Online Open", frontal marking with symbol "@"	per cylinder
	SEQUENCE	Cylinder with function "two-man rule", frontal marking with symbol "&"	per cylinder
