Mechatronic key
Long key with primary RFID, optional secondary RFID
Overview of Advantages
- Material: Nickel silver
- Refinement: see options
- Colour cap: see options
- Head clip: white with secondary RFID
- Head clip: grey without secondary RFID
- Temperature range: no influence
- Humidity: no influence
- Operability: Online/Offline/NOK
Product description
- Mechanical long key for use of the primary RFID chip with EM4450 components and the secondary RFID chip with Legic or Mifare components in mechatronic online Offline (NOK) and Stand Alone applications.
- NOK applications via EM4450 RFID.
- Active copy protection can be selected with the Omega function.
Scope of delivery
- 1 Mechatronic key
- * Data import
- * Segmenting list (optional with secondary RFID)
Note
- Specification RFID chips:
- Legic Advant ATC-4096-MP-311 4K
- Legic Prime&Advant CTC-4096-MP-410 4K
- Mifare Classic MF1S703x 4K
- Mifare Desfire EV3MF3ICD41 4K
- EM4450 (read-only)

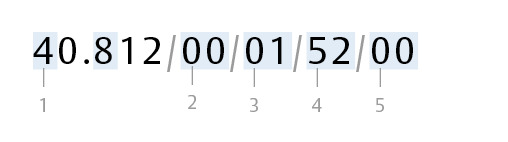

| 1: System | 4: 4000SΩ 3: 3000FPΩ, 3000SΩ, 3000S 2: 2000SΩ, 2000S, 2000 reg., 2000 1: 1000SΩ, 1000S, 1000 reg. |
| 2: Key version | 00: Standard 10: Omega |
| 3: Surface | 1: Standard 04: gold-plated 02: hard chrome-plated |
| 4: | 28: Fluo orange 33: Ruby red 34: Traffic red 40: Fluo Yellow 41: Latte Macchiato 42: Fluo Berry 44: Berry 45: Petrol 46: Avocado 48: Fluo green 49: Slate 52: Ultramarine blue 92: Graphite black |
| 5: Addition RFID | 10: Legic Advant 12: Legic CTC Prime & Advant 20: Mifare Desfire 21: Mifare Classic 00: without |
| System | Produktnummer |
|---|---|
| 40.812 | |
| 30.817 | |
| 30.812 | |
| 20.812 | |
| 10.812 |
