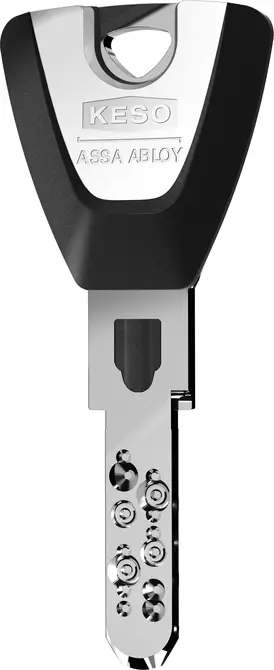

Mechatronic key

Extra-long key with primary RFID, optional secondary RFID

Overview of Advantages

  • Material: Nickel silver
  • Refinement: see options
  • Colour cap: see options
  • Head clip: white with secondary RFID
  • Head clip: grey without secondary RFID
  • Temperature range: no influence
  • Humidity: no influence
  • Operability: Online/Offline/NOK

Product description

  • Mechanical long key for use of the primary RFID chip with EM4450 components and the secondary RFID chip with Legic or Mifare components in mechatronic online Offline (NOK) and Stand Alone applications.
  • NOK applications via EM4450 RFID.
  • Active copy protection can be selected with the Omega function.
  • Erasure key deletes user or programming keys in combination with master key.

Scope of delivery

  • 1 Mechatronic key
  • * Data import

Note

  • Specification RFID Chip:
  • Programming key online in green head colour
  • Erasure key only in red head colour
  • EM4450 (read-only)
Special equipment

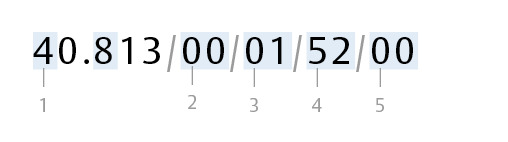

Artikelnummer
1: System4: 4000SΩ

2: 2000SΩ, 2000S, 2000 reg.

1: 1000SΩ, 1000S, 1000 reg.
2: Key version00: Standard

10: Omega
3: Surface1: Standard

04: gold-plated

02: hard chrome-plated
4: 28: Fluo orange

33: Ruby red

34: Traffic red

40: Fluo Yellow

41: Latte Macchiato

42: Fluo Berry

44: Berry

45: Petrol

46: Avocado

48: Fluo green

49: Slate

52: Ultramarine blue

92: Graphite black
5: Addition RFID10: Legic Advant

12: Legic CTC Prime & Advant

20: Mifare Desfire

21: Mifare Classic

00: without
Product numbers
SystemProduktnummer
40.813
20.813
10.813
