Mechatronic key

Extra-long key with primary RFID, optional secondary RFID

Overview of Advantages

  • Material: Nickel silver
  • Refinement: see options
  • Colour cap: see options
  • Head clip: white with secondary RFID
  • Head clip: grey without secondary RFID
  • Temperature range: no influence
  • Humidity: no influence
  • Humidity: 15 to +70%

Product description

  • Mechanical long key for use of the primary RFID chip with EM4450 components and the secondary RFID chip with Legic or Mifare components in mechatronic online Offline (NOK) and Stand Alone applications.
  • NOK applications via EM4450 RFID.

Scope of delivery

  • 1 Mechatronic key

Note

  • Specification RFID Chip:
  • Programming key online in green head colour
  • Erasure key only in red head colour
  • Legic Advant ATC-4096-MP-311 4K
  • Legic Prime&Advant CTC-4096-MP-410 4K
  • Mifare Classic MF1S703x 4K
  • Mifare Desfire EV2MF3ICD41 4K
  • EM4450 (read-only)
Special equipment

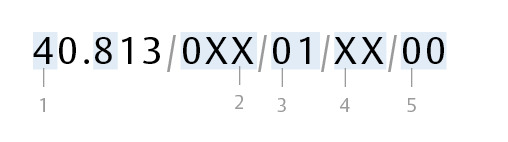

Artikelnummer
1: System4: 4000SΩ

3: 3000FP, 3000FPΩ

3: 3000SΩ, 3000S

2: 2000SΩ, 2000S, 2000 reg.

1: 1000SΩ, 1000S, 1000 reg.
2: Key version070: Mechatronic key

070: Deletion key

088: Master key
3: Surface1: Standard

04: gold-plated

02: hard chrome-plated
4: 34: Traffic red

48: Fluo green

52: Ultramarine blue
5: Addition RFID10: Legic Advant

12: Legic CTC Prime & Advant

20: Mifare Desfire

21: Mifare Classic

00: without
Product numbers
SystemProduktnummer
40.813/070/34
40.813/070/64
40.813/088
20.813/070/34
20.813/070/64
20.813/088
10.813/070/34
10.813/070/64
10.813/088
