Mechatronic key
Long key with primary RFID, optional secondary RFID
Overview of Advantages
- Material: Nickel silver
- Refinement: see options
- Colour cap: see options
- Head clip: white with secondary RFID
- Head clip: grey without secondary RFID
- Temperature range: no influence
- Humidity: no influence
- Humidity: 15 to +70%
Product description
- Mechanical long key for use of the primary RFID chip with EM4450 components and the secondary RFID chip with Legic or Mifare components in mechatronic online Offline (NOK) and Stand Alone applications.
- NOK applications via EM4450 RFID.
Scope of delivery
- 1 Mechatronic key
Note
- Specification RFID Chip:
- Programming key online in green head colour
- Erasure key only in red head colour
- EM4450 (read-only)

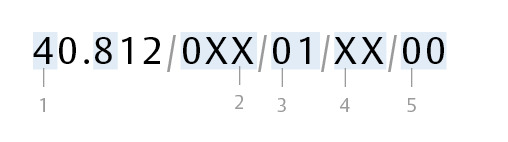

| 1: System | 4: 4000SΩ 3: 3000FP, 3000FPΩ 3: 3000SΩ, 3000S 2: 2000SΩ, 2000S, 2000 reg. 1: 1000SΩ, 1000S, 1000 reg. |
| 2: Key version | 070: Mechatronic key 070: Deletion key 088: Master key |
| 3: Surface | 1: Standard 04: gold-plated 02: hard chrome-plated |
| 4: | 34: Traffic red 48: Fluo green 52: Ultramarine blue |
| 5: Addition RFID | 10: Legic Advant 12: Legic CTC Prime & Advant 20: Mifare Desfire 21: Mifare Classic 00: without |
| System | Produktnummer |
|---|---|
| 40.812/070/34 | |
| 40.812/070/64 | |
| 40.812/088 | |
| 30.817/070/34 | |
| 30.817/070/64 | |
| 30.817/088 | |
| 30.812/088 | |
| 30.812/070/64 | |
| 30.812/070/34 | |
| 20.812/070/34 | |
| 20.812/070/64 | |
| 20.812/088 | |
| 10.812/070/34 | |
| 10.812/070/64 | |
| 10.812/088 |
