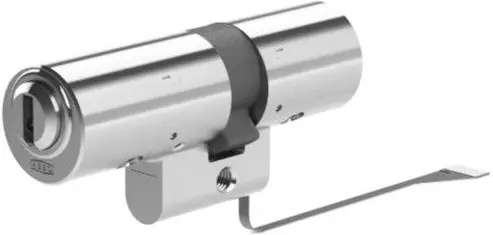

Integra double cylinder _1.G3Z

Priority function, round profile

Overview of Advantages

  • Material: brass (nickel-plated, steel look)
  • Protection rating: IP55
  • Power supply via external electronics
  • Humidity: 0 to 95% not dewing
  • Temperature range: -25°C to +65°C
  • Reader method: ISO 14443A / contact-based
  • Interface: micro-USB (via electronics)
  • Operational capability: Stand Alone / offline (NOK+)

Product description

  • Mechatronic double cylinder with priority function for all applications where an authorised key can be used to open from the outside even when the key is inserted on the inside
  • Outside mechatronic / inside mechanical
  • Mechatronic authorisation takes place via the separate electronics (online, offline, home).
  • Maximum cylinder length: 97.5/97.5mm

Scope of delivery

  • 1 double cylinder
  • 1 fixing screw

Note

  • Requires electronics
  • Requires k-entry 6.0
  • Extension cables must be ordered separately, see chapter (Accessories & replacement parts)
Special equipment

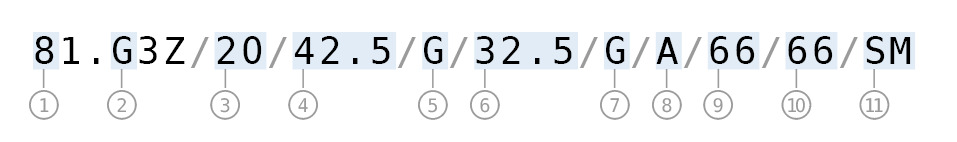

Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²

4: 4000SΩ

2: 2000SΩ, 2000S, 2000 reg.
2: Security levelG: without drill protection
3: Installation type20: Electronics in faceplate

21: Electronics attached
4: Length A42.5: 42.5 mm

47.5: 47.5 mm

52.5: 52.5 mm

XX: 5 mm Schritte (see appendix)
5: Security level AG: without drill protection
6: Length B32.5: 32.5 mm

37.5: 37.5 mm

42.5: 42.5 mm

XX: 5 mm Schritte (see appendix)
7: Security level BG: without drill protection
8: Corrosion protectionA: EN1670 Kl. 3
9: Cylinder colour A66: nickel-plated, steel look

04: gold decor
10: Cylinder colour B66: nickel-plated, steel look

4: gold decor
11: Cam typeSM: Standard position M

SQ: Standard position Q

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

BL: Biffar left

BR: Biffar right

NM: Standard position M narrow

NQ: Standard position Q narrow
Variants that can be ordered
Article number
91.G3Z
81.G3Z
41.G3Z
21.G3Z
