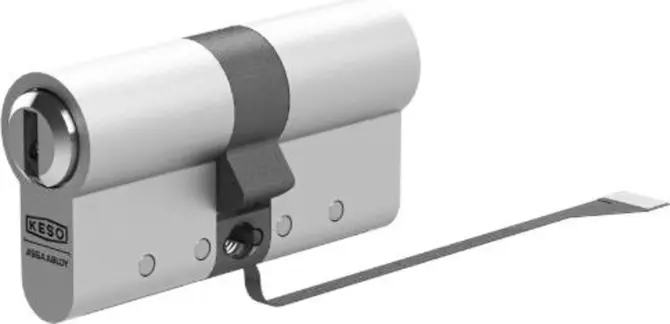

Integra double cylinder _1.A3J
with freewheel cam, Euro profile
Overview of Advantages
- Material: Brass (nickel-plated matt)
- Protection rating: IP55
- Power supply via external electronics
- Humidity: 0 to 95% not dewing
- Temperature range: -25°C to +65°C
- Reader method: ISO 14443A, contact-based
- Interface: KAPI
- Operational capability: Stand Alone / offline (NOK+)
- * The service life of the battery is reduced in tem-peratures below 0°C
Product description
- Mechatronic double cylinder for use in panic locks where a freewheeling cam is necessary to ensure the panic function at all times.
- Outside mechatronic / inside mechanical
- The mechatronic authorisation is carried out via separate electronics
- Maximum cylinder length: 90/90mm
Scope of delivery
- 1 double cylinder
- 1 fixing screw
Note
- Requires electronics; see chapter (Accessories & replacementparts)
- Requires k-entry 6.0
- Extension cables must be ordered separately, see chapter (Accessories & replacement parts)

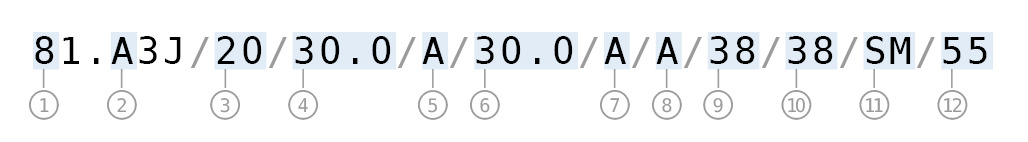

| 1: System | 9: 9000Ω² 4: 4000SΩ 2: 2000SΩ, 2000S, 2000 reg. |
| 2: | 8: 8000Ω², 8000Ω³ |
| 3: Security level | A: comparable EN15684:2012 |
| 4: Installation type | 20: Electronics in faceplate |
| 5: Length A | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 6: Security level A | A: comparable EN15684:2012 |
| 7: Length B | 30: 30 mm XX: 5 mm Schritte (see appendix) |
| 8: Security level B | A: comparable EN15684:2012 |
| 9: Corrosion protection | A: EN1670 Kl. 3 |
| 10: Cylinder colour A | 38: Nickel matt 04: gold decor |
| 11: Cylinder colour B | 38: Nickel matt 4: gold decor |
| 12: Cam type | EQ: Spain position Q BL: Biffar left BR: Biffar right EM: Spain position M |
| 13: Protection class | 55: IP55 |
| Article number |
|---|
| 91.A3J |
| 81.A3J |
| 41.A3J |
| 21.A3J |
