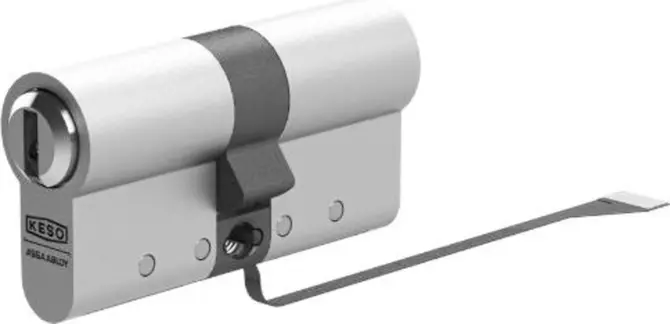

Integra double cylinder _1.A3Z

Priority function, Euro profile

Overview of Advantages

  • Priority function: one-sided
  • Material: brass, matt nickel plated
  • Protection rating: IP55
  • Power supply via external electronics
  • Humidity: 90 to 100% non-condensing
  • Temperature range: -25°C to +65°C
  • Reader method: ISO 14443A, contact-based
  • Interface: KAPI
  • Operational capability: Stand Alone / offline (NOK+)

Product description

  • Mechatronic double cylinder with priority function for all applications where an authorised key can be used to open from the outside even when the key is inserted on the inside.
  • Mechatronic on the outside / mechanical on the inside.
  • The mechatronic authorisation is carried out via separate electronics.
  • Maximum cylinder length: 90/90mm
  • Special lengths on request

Scope of delivery

  • 1 double cylinder
  • 1 fixing screw

Note

  • Requires electronics; see chapter (Accessories & replacementparts)
  • Requires k-entry 6.0
  • The supplied cable length depends on the type of installation
  • complies with EN15684:2012 (not certified)
  • If the electronics are mounted in the compact housing, add 20 mm to the B side for mounting.
Special equipment

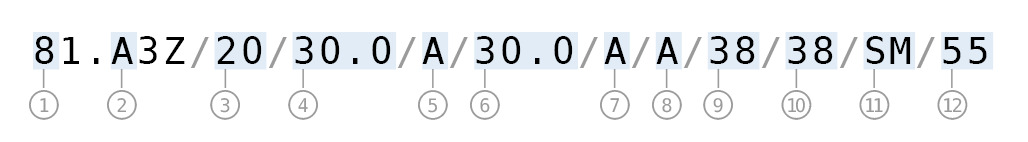

Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²

4: 4000SΩ

2: 2000SΩ, 2000S, 2000 reg.
2: Security levelA: comparable EN15684:2012
3: Installation type20: Electronics in faceplate

21: Electronics attached
4: Length A30: 30 mm

XX: 5 mm Schritte (see appendix)
5: Security level AA: comparable EN15684:2012
6: Length B30: 30 mm

XX: 5 mm Schritte (see appendix)
7: Security level BA: comparable EN15684:2012
8: Corrosion protectionA: EN1670 Kl. 3
9: Cylinder colour A38: Nickel matt

04: gold decor
10: Cylinder colour B38: Nickel matt

4: gold decor
11: Cam typeEQ: Spain position Q

KQ: Eurokey position Q

SM: Standard position M

SQ: Standard position Q

KM: Eurokey position M

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

BL: Biffar left

BR: Biffar right

EM: Spain position M

NM: Standard position M narrow

NQ: Standard position Q narrow
12: Protection class55: IP55
Variants that can be ordered
Article number
91.A3Z
81.A3Z
41.A3Z
