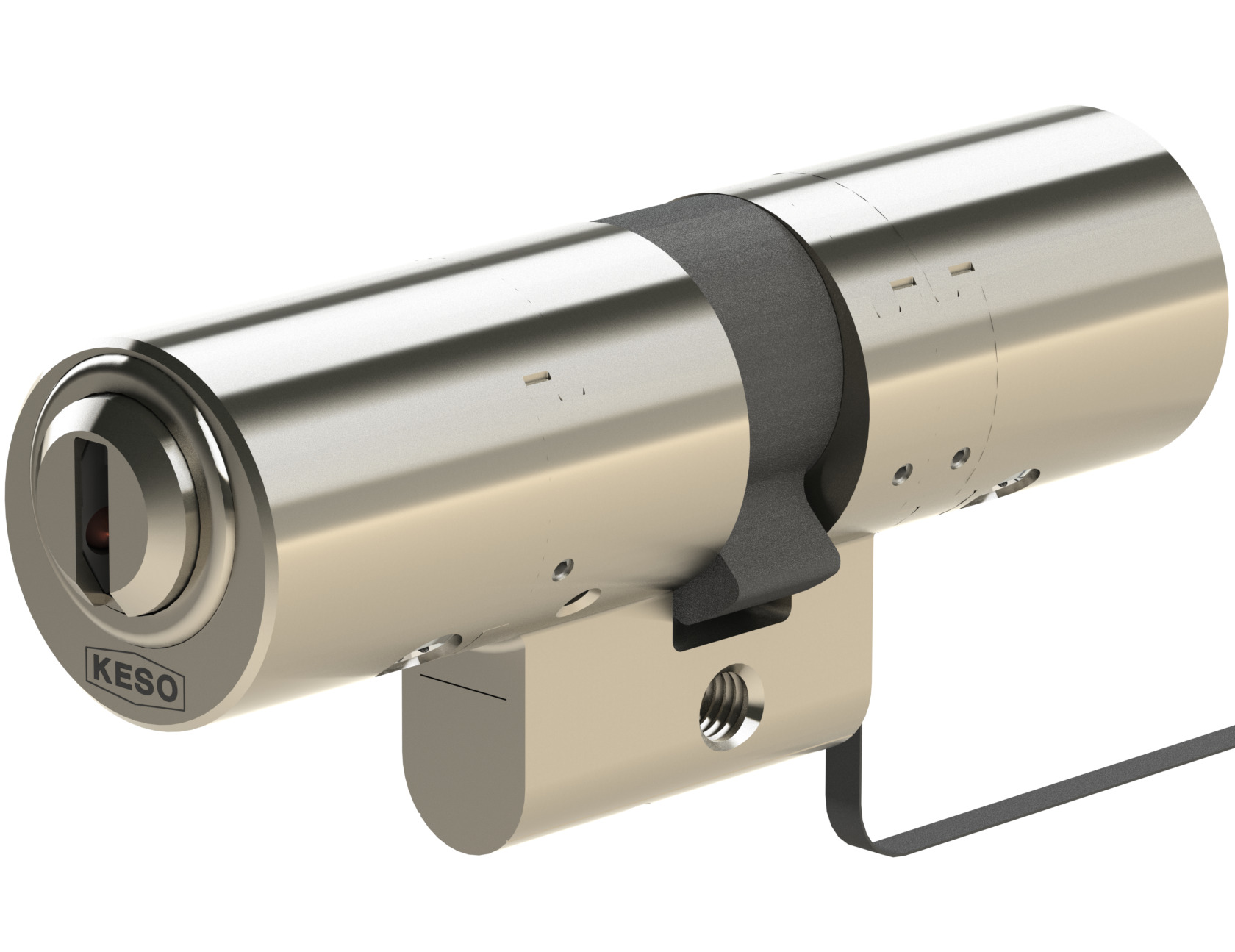

Integra double cylinder _1.G3J

with freewheel cams

Overview of Advantages

  • Material: brass (nickel-plated, steel look)
  • Protection rating: IP55
  • Power supply via external electronics
  • Humidity: 0 to 95% not dewing
  • Temperature range: -25°C to +65°C
  • Reader method: ISO 14443A / contact-based
  • Interface: KAPI
  • Operational capability: Stand Alone / offline (NOK+)
  • * Battery life is reduced at temperatures below 0 C

Product description

  • Mechatronic double cylinder for use in panic locks where a free-running cam is required to guarantee the panic function at all times.
  • Outside mechatronic / inside mechanical
  • The mechatronic authorisation is carried out via separate electronics
  • Maximum cylinder length: 97.5/97.5 mm

Scope of delivery

  • 1 double cylinder
  • 1 fixing screw

Note

  • Requires electronics
  • Requires k-entry 6.0
  • Extension cables must be ordered separately, see chapter (Accessories & replacement parts)
Special equipment

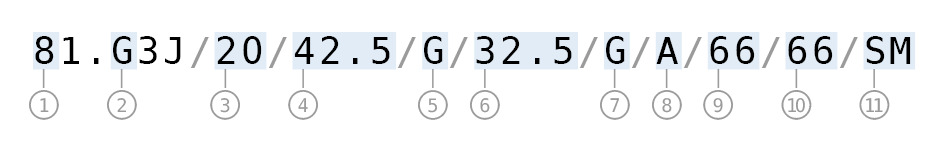

Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²

4: 4000SΩ

2: 2000SΩ, 2000S, 2000 reg.
2: Security levelG: without drill protection
3: Installation type20: Electronics in faceplate

21: Electronics attached
4: Length A42.5: 42.5 mm

47.5: 47.5 mm

52.5: 52.5 mm

XX: 5 mm Schritte (see appendix)
5: Security level AG: without drill protection
6: Length B42.5: 42.5 mm

47.5: 47.5 mm

52.5: 52.5 mm

XX: 5 mm Schritte (see appendix)
7: Security level BG: without drill protection
8: Corrosion protectionA: EN1670 Kl. 3
9: Cylinder colour A66: nickel-plated, steel look

04: gold decor
10: Cylinder colour B66: nickel-plated, steel look

4: gold decor
11: Cam typeSM: Standard position M

SQ: Standard position Q

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

BL: Biffar left

BR: Biffar right

NM: Standard position M narrow

NQ: Standard position Q narrow
Variants that can be ordered
Article number
91.G3J
81.G3J
41.G3J
21.G3J
