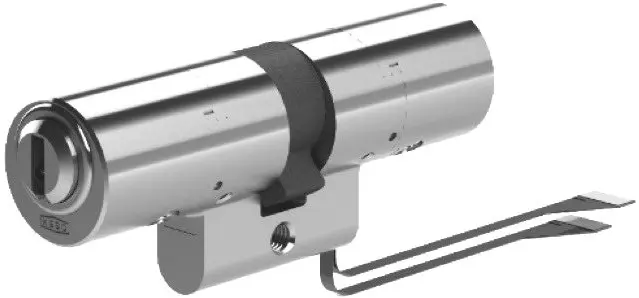

Integra double cylinder _1.H3K
with electronics on both sides and anti-drill protection, round profile
Overview of Advantages
- Material: brass (nickel-plated, steel look)
- Protection rating: IP55
- Power supply via external electronics
- Humidity: 0 to 95% not dewing
- Temperature range: -25°C to +65°C
- Reader method: ISO 14443A / contact-based
- Interface: Micro-USB (via electronics)
- Operational capability: Stand Alone / offline (NOK+)
Product description
- Mechatronic double cylinder for applications where mechatronic authorisation is required from the inside and outside, possibly with different authorisations. With hardened tumblers HRC60 for anti-drill protection.
- Mechatronic authorisation takes place via the separate electronics (online, offline, home).
- Maximum cylinder length: 97.5/97.5mm
Scope of delivery
- 1 double cylinder
- 1 fixing screw
Note
- Requires electronics
- Requires k-entry 6.0
- Extension cables must be ordered separately, see chapter (Accessories & replacement parts)

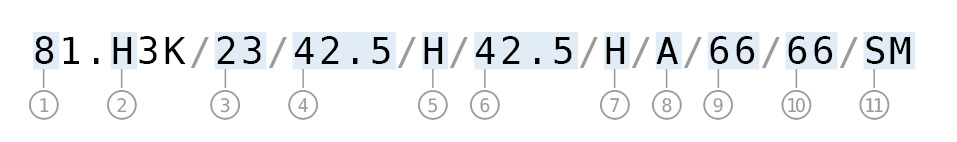

| 1: | 8: 8000Ω², 8000Ω³ |
| 2: Security level | H: with drilling protection |
| 3: Installation type | 23: |
| 4: Length A | 42.5: 42.5 mm 47.5: 47.5 mm 52.5: 52.5 mm XX: 5 mm Schritte (see appendix) |
| 5: Security level A | H: with drilling protection |
| 6: Length B | 42.5: 42.5 mm 47.5: 47.5 mm 52.5: 52.5 mm XX: 5 mm Schritte (see appendix) |
| 7: Security level B | H: with drilling protection |
| 8: Corrosion protection | A: EN1670 Kl. 3 |
| 9: Cylinder colour A | 66: nickel-plated, steel look |
| 10: Cylinder colour B | 66: nickel-plated, steel look |
| 11: Cam type | SM: Standard position M SQ: Standard position Q MT: Multilock MS: Multilock narrow SP: Spider gear wheel BL: Biffar left BR: Biffar right NM: Standard position M narrow NQ: Standard position Q narrow |
| Article number |
|---|
| 81.H3K |
