Integra double cylinder _1.H3Z

with priority function and anti-drill protection, round profile

Overview of Advantages

  • Material: brass (nickel-plated, steel look)
  • Protection rating: IP55
  • Power supply via external electronics
  • Humidity: 0 to 95% not dewing
  • Temperature range: -25°C to +65°C
  • Reader method: ISO 14443A / contact-based
  • Interface: micro-USB (via electronics)
  • Operational capability: Stand Alone / offline (NOK+)

Product description

  • Mechatronic double cylinder with priority function for all applications where an authorised key can be used to open from the outside even when the key is inserted on the inside. With hardened tumblers HRC60 for anti-drill protection.
  • Outside mechatronic / inside mechanical
  • Mechatronic authorisation takes place via the separate electronics (online, offline, home).
  • Maximum cylinder length: 97.5/97.5mm

Scope of delivery

  • 1 double cylinder
  • 1 fixing screw

Note

  • Requires electronics
  • Requires k-entry 6.0
  • Extension cables must be ordered separately, see chapter (Accessories & replacement parts)
Special equipment

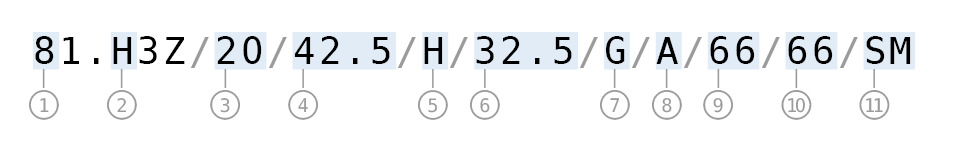

Artikelnummer
1: System8: 8000Ω²
2: Security levelH: with drilling protection
3: Installation type20: Electronics in faceplate

21: Electronics attached
4: Length A42.5: 42.5 mm

47.5: 47.5 mm

52.5: 52.5 mm

XX: 5 mm Schritte (see appendix)
5: Security level AH: with drilling protection
6: Length B32.5: 32.5 mm

37.5: 37.5 mm

42.5: 42.5 mm

XX: 5 mm Schritte (see appendix)
7: Security level BG: without drill protection
8: Corrosion protectionA: EN1670 Kl. 3
9: Cylinder colour A66: nickel-plated, steel look
10: Cylinder colour B66: nickel-plated, steel look
11: Cam typeSM: Standard position M

SQ: Standard position Q

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

BL: Biffar left

BR: Biffar right

NM: Standard position M narrow

NQ: Standard position Q narrow
