Integra thumbturn cylinder _1.G3H

Standard, round profile

Overview of Advantages

  • Material: brass (nickel-plated, steel look)
  • Protection rating: IP55
  • Power supply: Battery
  • Humidity: 0 to 95% not dewing
  • Temperature range: -25°C to +65°C
  • Reader method: ISO 14443A / contact-based
  • Interface: micro-USB (via electronics)
  • Operational capability: Stand Alone / offline (NOK+)
  • Battery service life: at 20°C up to 40'000 actions or 2 years
  • * The service life of the battery is reduced in tem-peratures below 0°C

Product description

  • Mechatronic rotary knob cylinder with integrated electronics for stand-alone applications
  • Mechatronic cylinder on the outside / mechanical knob on the inside
  • Maximum cylinder length: 97.5/97.5mm

Scope of delivery

  • 1 Thumbturn cylinder including electronics
  • 1 fixing screw
  • 3 LR1 batteries

Note

  • Requires k-entry 6.0
Special equipment

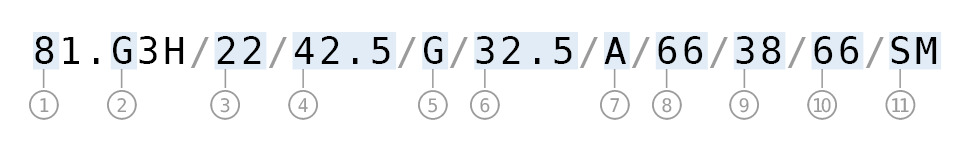

Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²

4: 4000SΩ

2: 2000SΩ, 2000S, 2000 reg.
2: Security levelG: without drill protection
3: Installation type22: Electronics in the knob
4: Length A42.5: 42.5 mm

47.5: 47.5 mm

52.5: 52.5 mm

XX: 5 mm Schritte (see appendix)
5: Security level AG: without drill protection
6: Length B32.5: 32.5 mm

37.5: 37.5 mm

42.5: 42.5 mm

XX: 5 mm Schritte (see appendix)
7: Corrosion protectionA: EN1670 Kl. 3
8: Cylinder colour A66: nickel-plated, steel look

04: gold decor
9: Thumbturn colour38: Nickel matt

4: gold decor
10: Cylinder colour B66: nickel-plated, steel look
11: Cam typeSM: Standard position M

SQ: Standard position Q

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

BL: Biffar left

BR: Biffar right

NM: Standard position M narrow

NQ: Standard position Q narrow
Variants that can be ordered
Article number
91.G3H
81.G3H
41.G3H
21.G3H
