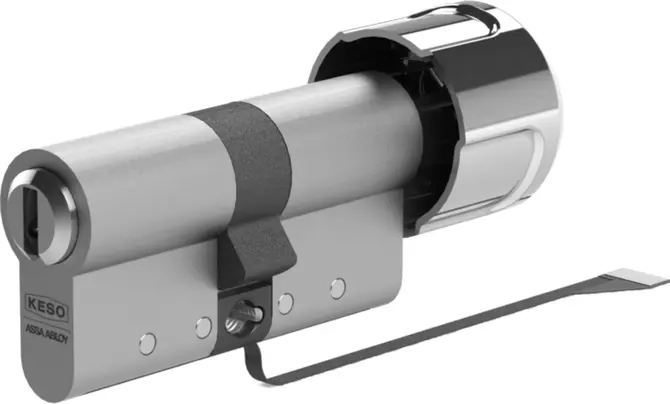

Integra rotary knob cylinder _1.A3G

Standard, Euro profile

Overview of Advantages

  • Material: brass (nickel-plated, steel look)
  • Protection rating: IP55
  • Power supply via external electronics
  • Humidity: 90 to 100% non-condensing
  • Temperature range: -25°C to +65°C
  • Reader method: ISO 14443A, contact-based
  • Interface: KAPI
  • Operational capability: Stand Alone / offline (NOK+)

Product description

  • Mechatronic rotary knob cylinder in standard design.
  • Outside mechatronic cylinder / inside mechani-cal rotary knob
  • Mechatronic authorisation takes place via the separate electronics (online, offline, home).
  • Maximum cylinder length: 90/90mm
  • Special lengths on request

Scope of delivery

  • 1 rotary knob cylinder
  • 1 fixing screw

Note

  • Requires electronics; see chapter (Accessories & replacementparts)
  • Requires k-entry 6.0
  • The supplied cable length depends on the type of installation
  • complies with EN15684:2012 (not certified)
  • If the electronics are mounted in the compact housing, add 20 mm to the B side for mounting.
Special equipment

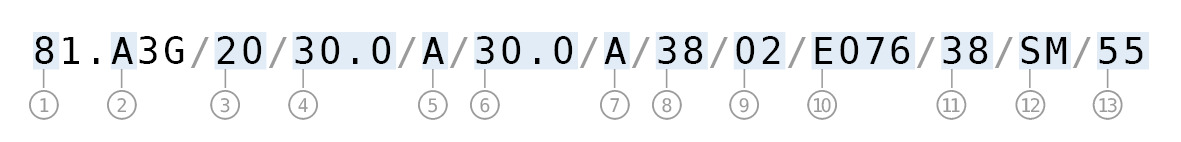

Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²

4: 4000SΩ

2: 2000SΩ, 2000S, 2000 reg.
2: Security levelA: comparable EN15684:2012
3: Installation type20: Electronics in faceplate

21: Electronics attached
4: Thumbturn BE051: 35 mm with key holding device

E076: 30 mm standard

E051: 35 mm with key holding device

E052: double wing
5: Length AXX: 5 mm Schritte (see appendix)
6: Security level AA: comparable EN15684:2012
7: Length B30: 30 mm

XX: 5 mm Schritte (see appendix)
8: Corrosion protectionA: EN1670 Kl. 3
9: Cylinder colour A38: Nickel matt

04: gold decor
10: Thumbturn colour2: nickel plated
11: Cylinder colour B38: Nickel matt

4: gold decor
12: Cam typeEQ: Spain position Q

KQ: Eurokey position Q

SM: Standard position M

SQ: Standard position Q

KM: Eurokey position M

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

BL: Biffar left

BR: Biffar right

EM: Spain position M

NM: Standard position M narrow

NQ: Standard position Q narrow
13: Protection class55: IP55
Variants that can be ordered
Article number
91.A3G
81.A3G
41.A3G
21.A3G
