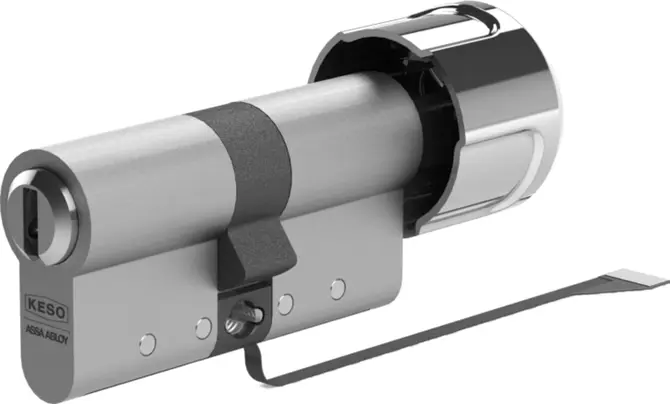

Integra rotary knob cylinder _1.A3N

with priority function, Euro profile

Overview of Advantages

  • Priority function: one-sided
  • Material: brass, matt nickel plated
  • Protection rating: IP55
  • Power supply: external electronics/batteries
  • Humidity: 90 to 100% non-condensing
  • Temperature range: -25°C to +65°C
  • Reader method: ISO 14443A, contact-based
  • Interface: KAPI
  • Operational capability: Stand Alone / offline (NOK+)

Product description

  • Mechatronic rotary knob cylinder with priority function.
  • Priority function for all applications where the door can be opened from the outside with an authorised key even if the rotary knob on the inside is blocked.
  • Outside mechatronic cylinder / inside mechani-cal rotary knob
  • Mechatronic authorisation takes place via the separate electronics (online, offline, home).
  • Maximum cylinder length: 90/90mm
  • Special lengths on request

Scope of delivery

  • 1 rotary knob cylinder
  • 1 fixing screw

Note

  • Requires electronics; see chapter (Accessories & replacementparts)
  • Requires k-entry 6.0
  • The supplied cable length depends on the type of installation
  • complies with EN15684:2012 (not certified)
  • If the electronics are mounted in the compact housing, add 20 mm to the B side for mounting.
Special equipment
Artikelnummer
1: System8: 8000Ω²

4: 4000SΩ
2: Security levelA: comparable EN15684:2012
3: Installation type20: Electronics in faceplate

21: Electronics attached
4: Length A30: 30 mm

XX: 5 mm Schritte (see appendix)
5: Security level AA: comparable EN15684:2012
6: Length B30: 30 mm

XX: 5 mm Schritte (see appendix)
7: Corrosion protectionA: EN1670 Kl. 3
8: Cylinder colour A38: Nickel matt

04: gold decor
9: Thumbturn colour2: nickel plated
10: Thumbturn BE076: 30 mm standard

E051: 35 mm with key holding device

E052: double wing
11: Cylinder colour B38: Nickel matt

4: gold decor
12: Cam typeEQ: Spain position Q

KQ: Eurokey position Q

SM: Standard position M

SQ: Standard position Q

KM: Eurokey position M

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

BL: Biffar left

BR: Biffar right

EM: Spain position M

NM: Standard position M narrow

NQ: Standard position Q narrow
13: Protection class55: IP55
Variants that can be ordered
Article number
81.A3N
41.A3N
