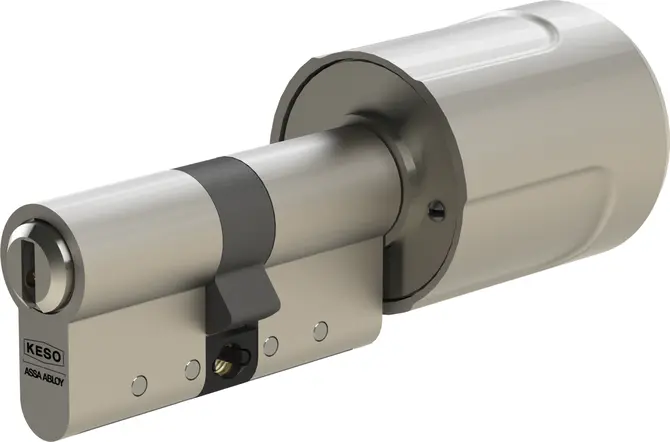

Integra thumbturn cylinder _1.A3M

with priority function, Euro profile

Overview of Advantages

  • Priority function: one-sided
  • Material: brass, matt nickel plated
  • Protection class: IP55 (outside)
  • Power supply: Battery
  • Humidity: 90 to 100% non-condensing
  • Temperature range: -25°C to +65°C
  • Reader method: ISO 14443A, contact-based
  • Interface: KAPI
  • Operational capability: Stand Alone / offline (NOK+)
  • Battery life: At 20°C up to 40,000 actions or 2 years
  • * The service life of the battery is reduced in tem-peratures below 0°C

Product description

  • Mechatronic thumbturn cylinder with integrated electronics for stand alone application
  • Priority function for all applications where opening can take place from outside with an authorised key, even with a blocked inside thumbturn.
  • Mechatronic cylinder on the outside / mechanical knob on the inside.
  • Maximum cylinder length: 90/90mm
  • Special lengths on request

Scope of delivery

  • 1 Thumbturn cylinder including electronics
  • 1 fixing screw
  • 3 LR1 batteries

Note

  • Requires k-entry 6.0
  • complies with EN15684:2012 (not certified)
Special equipment

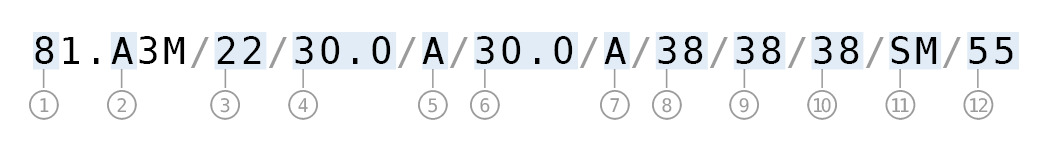

Artikelnummer
1: System9: 9000Ω²

8: 8000Ω²

4: 4000SΩ
2: Security levelA: comparable EN15684:2012
3: Installation type22: Electronics in the knob
4: Length A30: 30 mm

XX: 5 mm Schritte (see appendix)
5: Security level AA: comparable EN15684:2012
6: Length B30: 30 mm

XX: 5 mm Schritte (see appendix)
7: Corrosion protectionA: EN1670 Kl. 3
8: Cylinder colour A38: Nickel matt

04: gold decor
9: Thumbturn colour38: Nickel matt
10: Cylinder colour B38: Nickel matt

4: gold decor
11: Cam typeEQ: Spain position Q

KQ: Eurokey position Q

SM: Standard position M

SQ: Standard position Q

KM: Eurokey position M

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

BL: Biffar left

BR: Biffar right

EM: Spain position M

NM: Standard position M narrow

NQ: Standard position Q narrow
12: Protection class55: IP55
Variants that can be ordered
Article number
91.A3M
81.A3M
41.A3M
