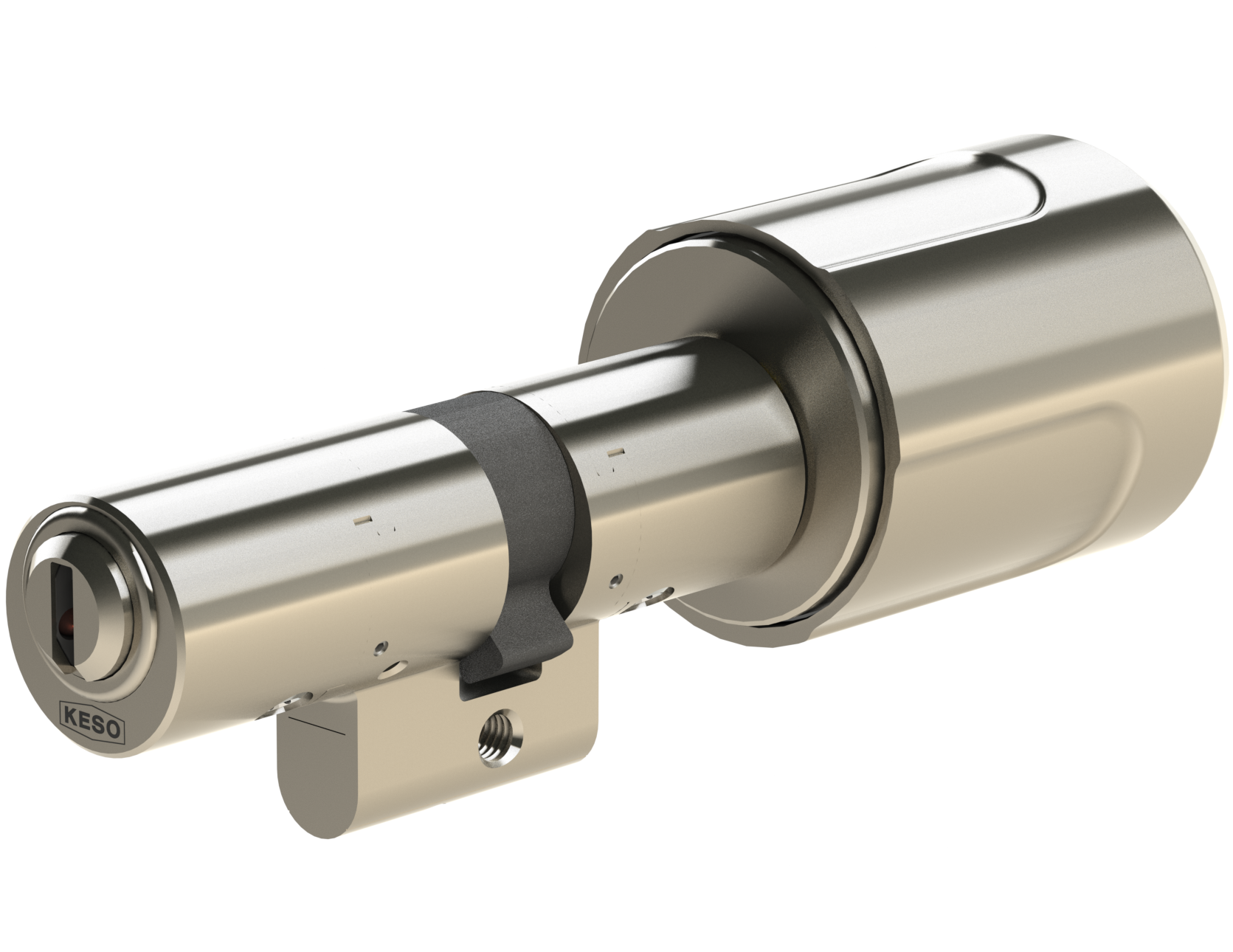

Integra thumbturn cylinder _1.H3M

with priority function and anti-drill protection, round profile

Overview of Advantages

  • Material: brass (nickel-plated, steel look)
  • Protection rating: IP55
  • Power supply: Battery
  • Humidity: 0 to 95% not dewing
  • Temperature range: -25°C to +65°C
  • Reader method: ISO 14443A / contact-based
  • Interface: micro-USB (via electronics)
  • Operational capability: Stand Alone / offline (NOK+)
  • Battery service life: at 20°C up to 40'000 actions or 2 years
  • * The service life of the battery is reduced in tem-peratures below 0°C

Product description

  • Mechatronic knob cylinder with integrated electronics and HRC60 hardened tumblers for anti-drilling protection.
  • Priority function for all applications where opening can take place from outside with an authorised key, even with a blocked inside thumbturn.
  • Mechatronic cylinder on the outside / mechanical knob on the inside
  • Maximum cylinder length: 97.5/97.5mm

Scope of delivery

  • 1 Thumbturn cylinder including electronics
  • 1 fixing screw
  • 3 LR1 batteries

Note

  • Requires k-entry 6.0
Special equipment

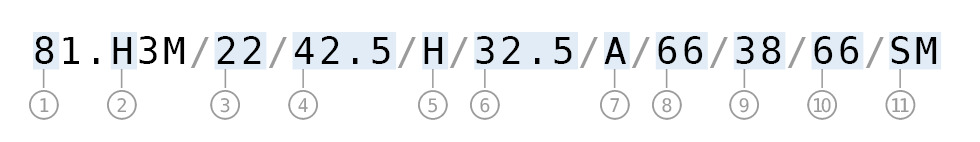

Artikelnummer
1: System8: 8000Ω²
2: Security levelH: with drilling protection
3: Installation type22: Electronics in the knob
4: Length A42.5: 42.5 mm

47.5: 47.5 mm

52.5: 52.5 mm

XX: 5 mm Schritte (see appendix)
5: Security level AH: with drilling protection
6: Length B32.5: 32.5 mm

37.5: 37.5 mm

42.5: 42.5 mm

XX: 5 mm Schritte (see appendix)
7: Corrosion protectionA: EN1670 Kl. 3
8: Cylinder colour A66: nickel-plated, steel look
9: Thumbturn colour38: Nickel matt
10: Cylinder colour B66: nickel-plated, steel look
11: Cam typeSM: Standard position M

SQ: Standard position Q

MT: Multilock

MS: Multilock narrow

SP: Spider gear wheel

BL: Biffar left

BR: Biffar right

NM: Standard position M narrow

NQ: Standard position Q narrow
